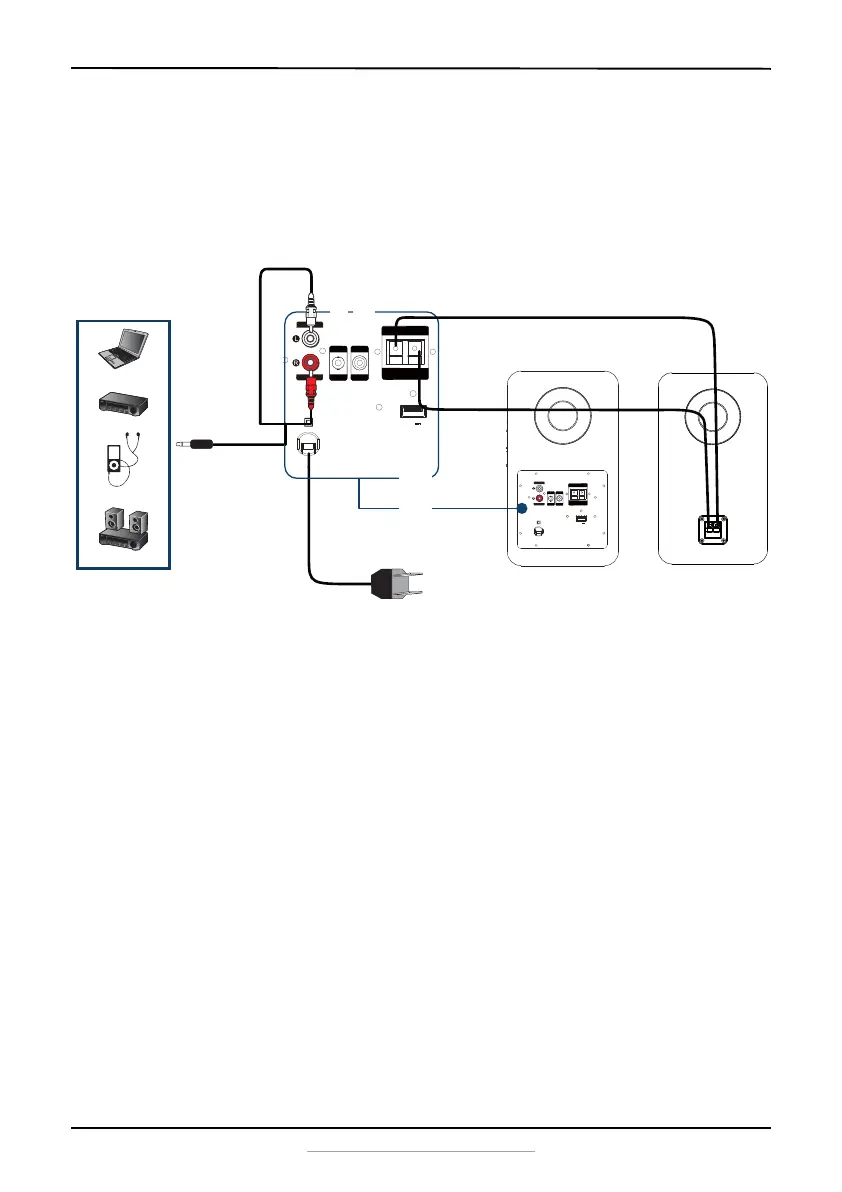

Setting up your speakers
1 Before making connections make sure that the speakers are turned off.
2 Using the speaker wires provided, connect the black (-) wires to the
negative (-) speaker terminals (right and left) on your speakers and to
the negative (-) terminals on the right and left speakers.
3 Connect the red (+) wires to the positive (+) speaker terminals (right
and left) on your speakers and to the positive (+) terminals on the right
and left speakers.
4 Insert one end of the input signal cable (RCA/3.5mm Aux) into the
input port on back panel and the other end into the output port of
your sound source device (such as a PC, DVD, or MP3 player).
- OR -
USB 5V 1A
120V~ 60Hz
0.6A
INPUT
L SPEAKER
OUTPUT
AUX
OUTPUT
SUB
RCA
USB 5V 1A
120V~ 60Hz
0.6A
INPUT
L SPEAKER
OUTPUT
AUX
OUTPUT
SUB
RCA
Amplifier
Computer
Home theater
MP3 player
Subwoofer out
AUX input
USB connection
(charging only)
RCA input
