Pg. 12 V1.0
STEP 6
RESISTANCE BAND PEGS, LANDMINE, AND BATTLE ROPE ATTACHMENT INSTALLATION

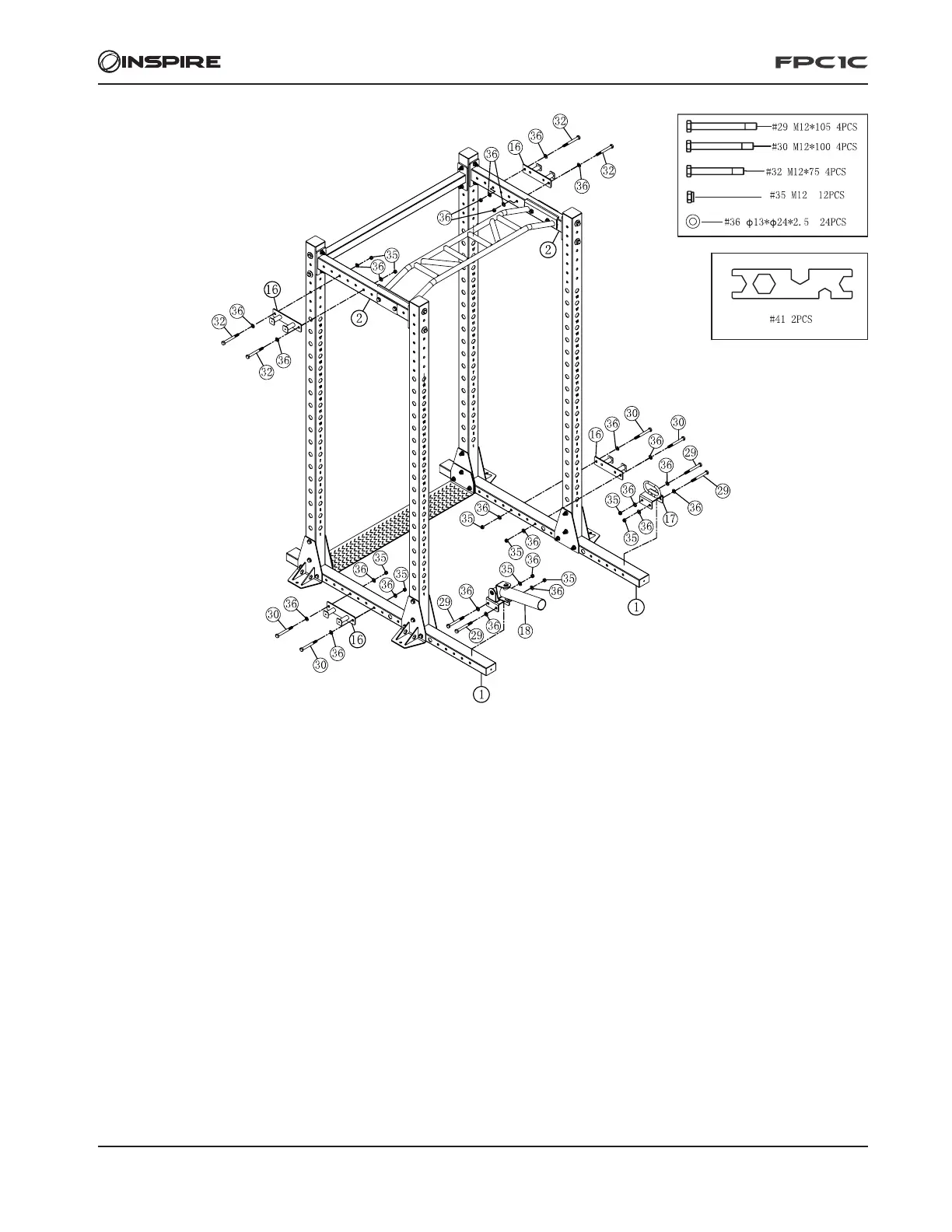

Refer to the illustration above for location and orientation of components.
RESISTANCE BAND PEGS (4 Places): one at top, and one at bottom on each side.
• Fasten with Bolt (30), Washer (36), and Lock Nut (35).
• Connect Resistance Band Pegs (16) to the bottom base frame , and to the top of the frame. one on each side, left and right.
LANDMINE
• Fasten with Bolt (29), Washer (36), and Lock Nut (35).
• Connect the bracket of the Landmine (18) to the bottom base frame.
BATTLE-ROPE ATTACHMENT
• Fasten with Bolt (29), Washer (36), and Lock Nut (35).
• Connect the bracket of the Battle Rope attachment (17) to the bottom base frame.
To Next Page
