Instron 3400 Series User Manual

Chapter: Installation
36 M10-17313-EN

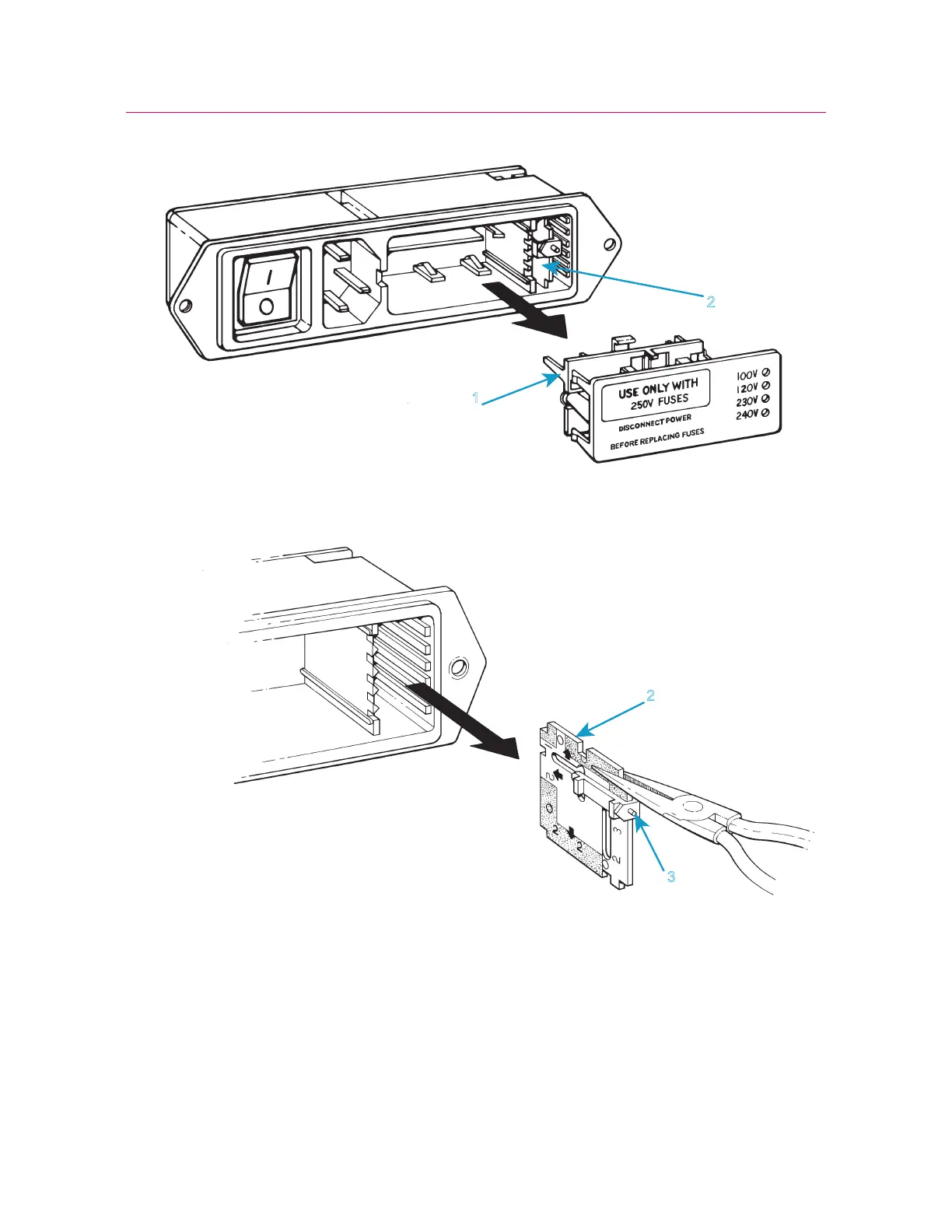

4. Using long-nose pliers, remove the voltage selector card (2) as shown below. The
voltage indicator pin is labeled (3).
5. Position the voltage selector card so the indicator pin (3) points upward, as shown
below. Holding the pin in this position, rotate the card until the required voltage
setting shows at the bottom of the card.
1
2
2
3
