Chapter: Function of controls
68 M10-17313-EN
grips do not close completely at the initial pressure, they will close at full force when
the grips transition to full pressure.
In addition to the hazard caused by reducing the air flow, operation of the air inlet flow
adjustment control can result in an inaccurate grip pressure reading which may disable
the frame.

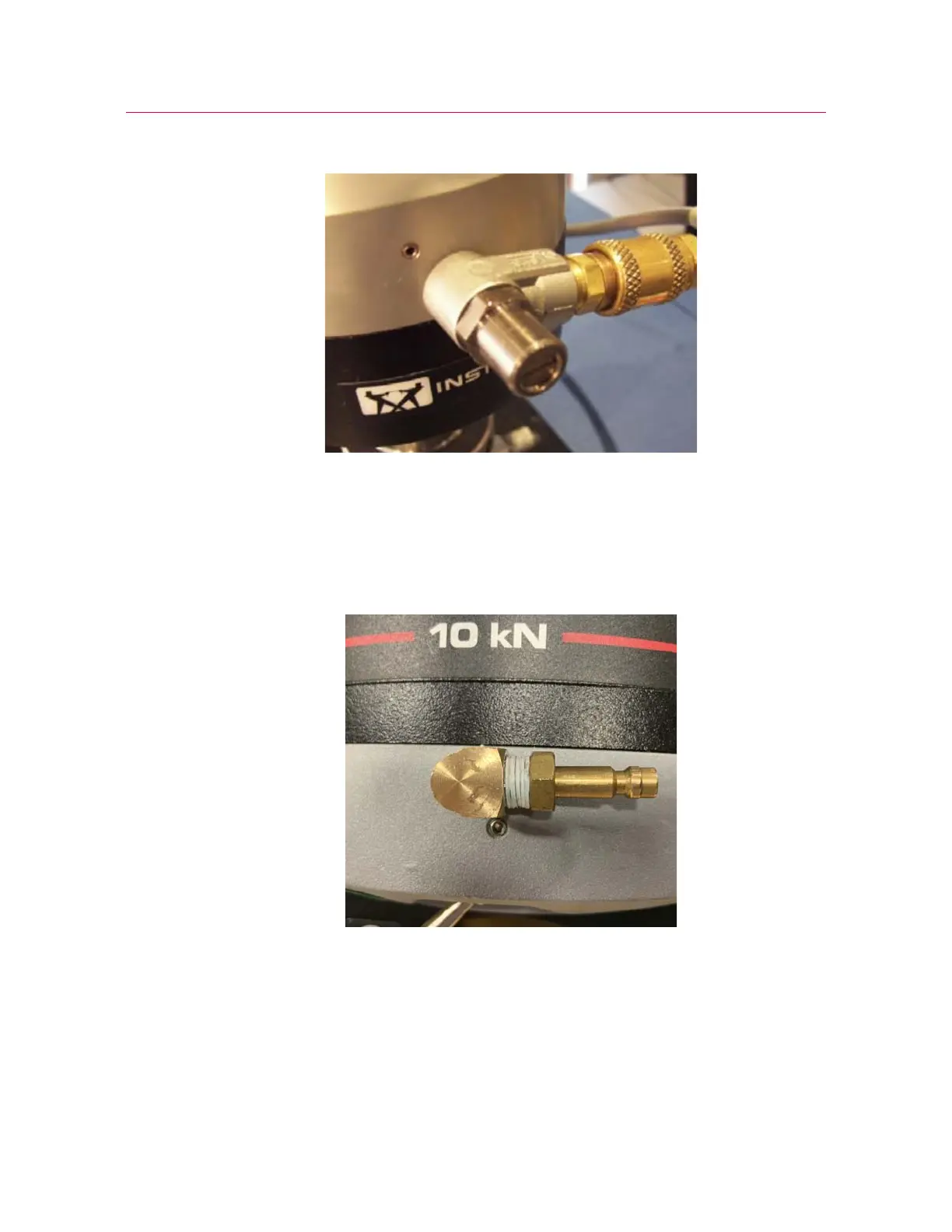

You can remove the air inlet flow adjustment control and connect the 1/8” NPT quick
disconnect directly to the grip or via a 1/8” NPT right angle male to female adapter, as
shown below.
Operate grips using footswitch
The recommended pneumatic grip configuration is one of the grips listed in Table 7 on
page 66 combined with the integrated air kit and footswitch.
