DOSE IT – Operating instructions V08 Operation
12 INTEGRA Biosciences AG

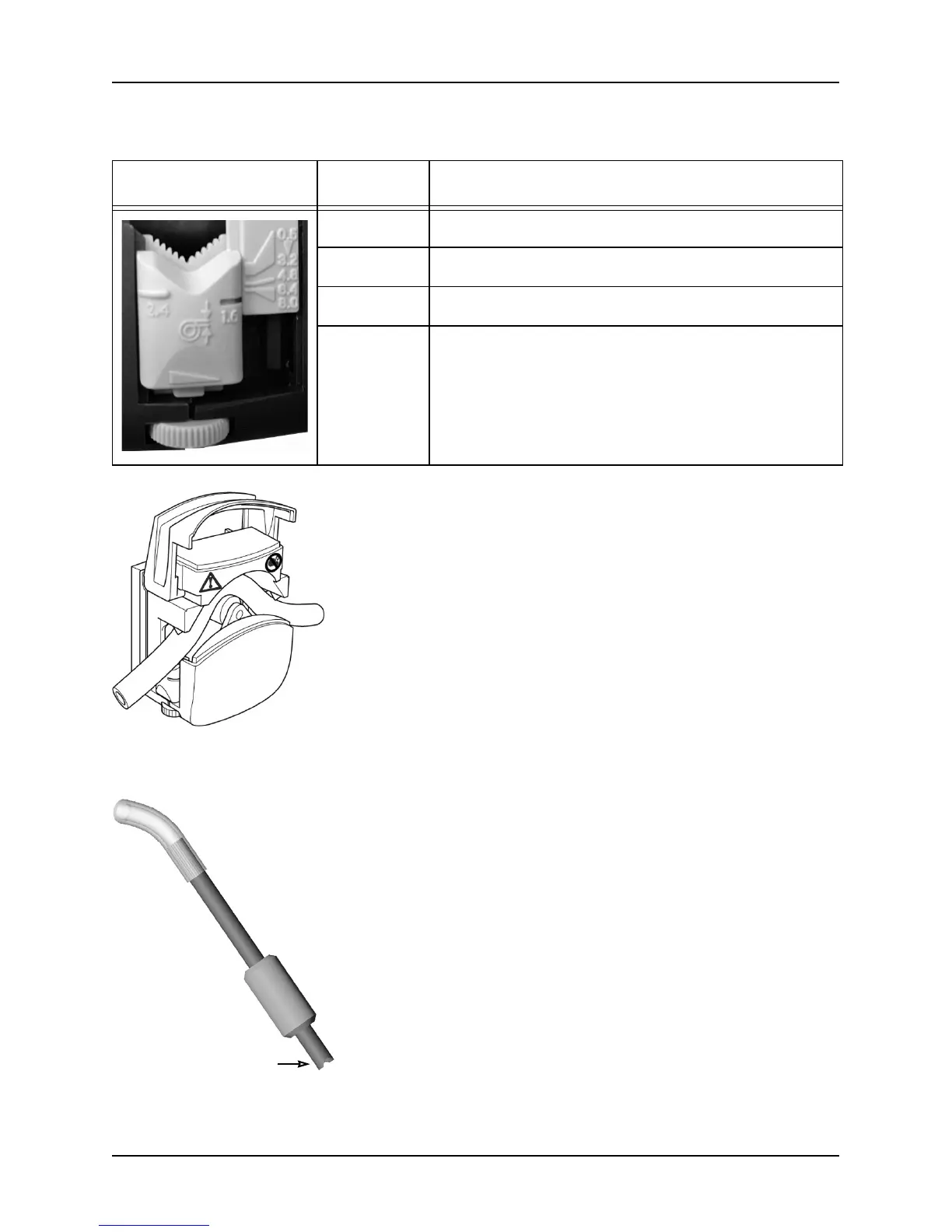

Table 2: Adjustments of the clamps for differently sized tubing
4.1.3 Connecting the dispensing and aspiration tubes
Clamp Tubing ID 1.6-marking of clamps
1 mm between 3.2 and 4.8 scale values
2 mm matches the 4.8 value on the scale
3 mm matches the 6.4 value on the scale
4 – 8 mm Completely open the clamps as shown beside.
Turn the finger screws right till the stop position.
3 Insert the tubing
Place the tubing over the rollers and center it so that it
comes out of the pump head over the clamps on both
sides. Close the pumphead and make sure that the tub-
ing exits the pumphead unhindered and bending down-
wards. The tubing must not be bent upwards or towards
the front or back.
The aspiration/dispensing tubes delivered with the
DOSE IT facilitate the dosing process and are fitted on
the end of the tubing. The aspiration tube is dented on
one end in order to guarantee a free flowing of the liquid
entering the tubing. Make sure not to insert the dented
end of the aspiration tube into the silicone tubing.
The tube collar can either be screwed on the aspiration
tube to weigh it down or to the dispensing tube as a
spacer for use with a clamp.
Dented end
Tube collar
Aspiration/
dispensing
tube
Silicone tubing
