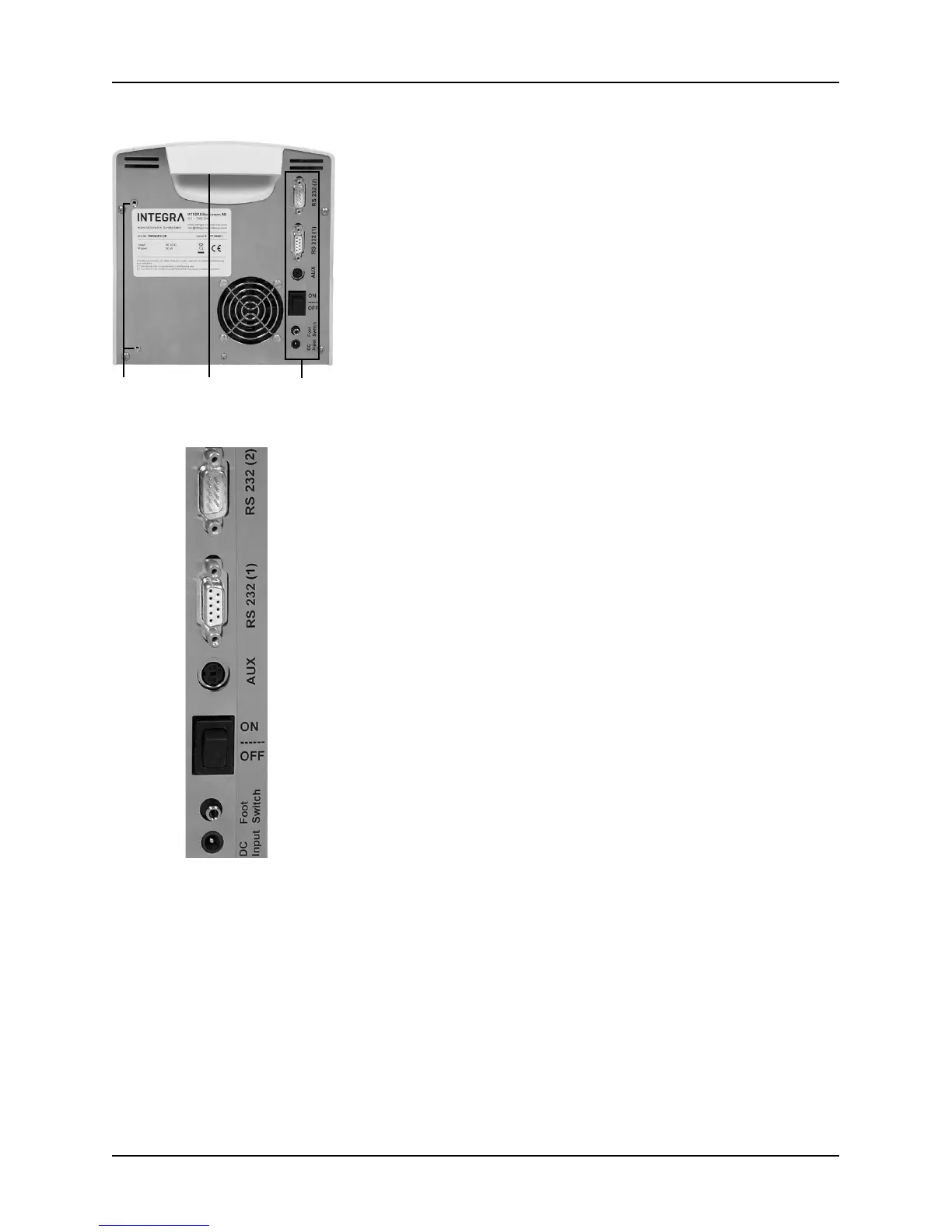

Rear view
7 Screw threads for fixation of the retort rod
8 Handhold
9 Connections and mains switch (see below)
78 9
Connections and mains switch
10 RS-232 interface for connection with serial printer
11 RS-232 interface for service connection
12 AUX connection for controlling a second DOSE IT
13 Mains switch
14 Connection for foot switch, benchtop switch,
MEDIAJET or external relay contact (potential free,
normally open, 3.5 mm jack plug) for remote control
15 Mains connection socket
10
11
12
13
14
15
