Rear Panel

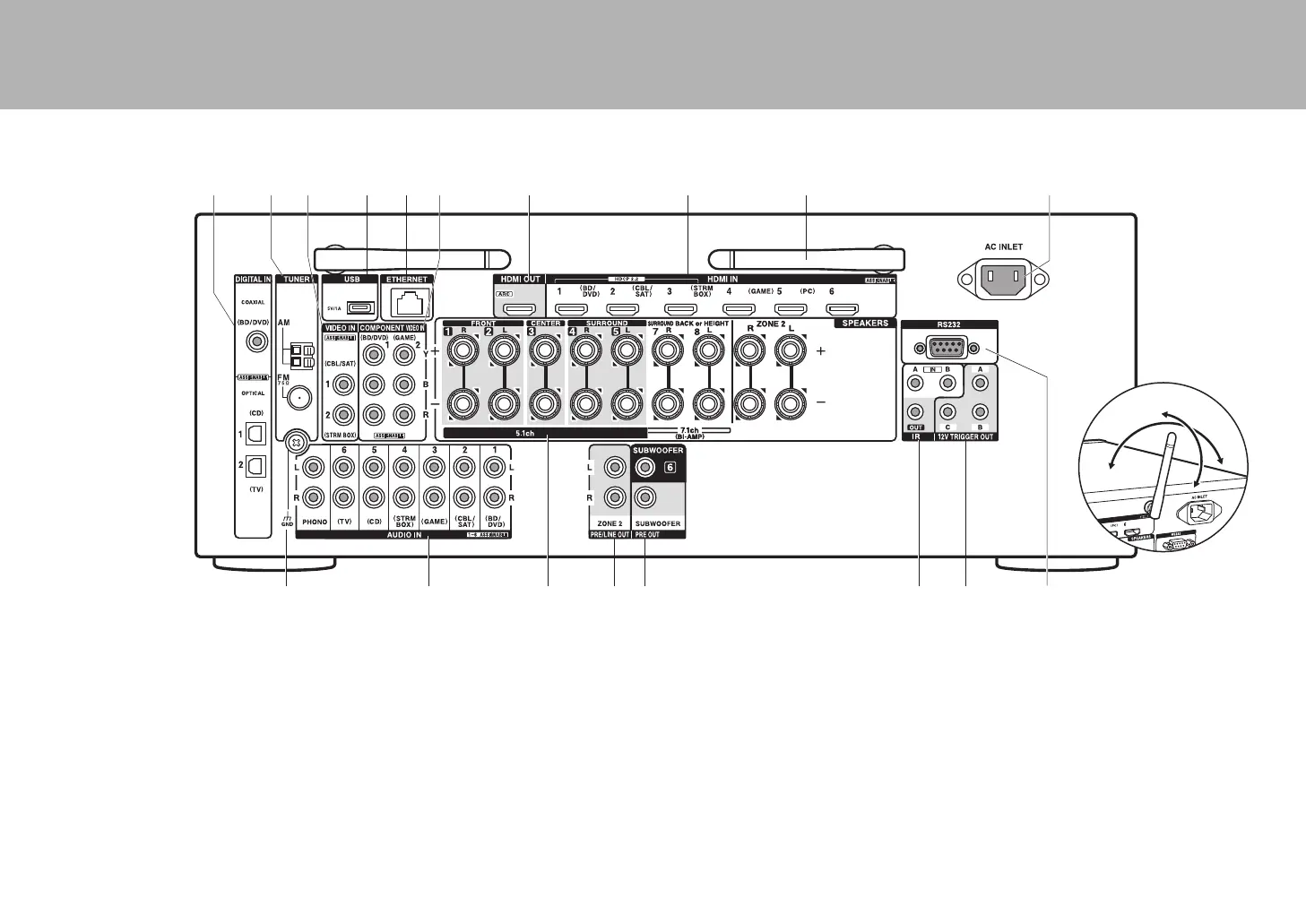

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV
component digital audio signals with a digital optical
cable or digital coaxial cable.
2. TUNER AM/FM 75Ω terminals: The supplied antennas
are connected.
3. VIDEO IN jacks: Input the video signals from AV
component with an analog video cable.
4. USB port: A USB storage device is connected so that music
files stored in it can be played. You can also supply power
(maximum 5V/1A) to USB devices with a USB cable.
5. ETHERNET port: Connect to the network with an
Ethernet cable.
6. COMPONENT VIDEO IN jacks: Input the video signals
from AV components with a component video cable.
7. HDMI OUT jacks: Transmit video signals and audio
signals with a HDMI cable connected to a TV.
8. HDMI IN jacks: Transmit video signals and audio signals
with a HDMI cable connected to an AV component.
9. Wireless antenna: Used for Wi-Fi connection or when
using a BLUETOOTH enabled device. Adjust their
angles according to the connection status.
10.
AC INLET: The supplied power cord is connected.
11.
GND terminal: The ground wire of the turntable is connected.
12.
AUDIO IN jacks: Input TV or AV component audio
signals with an analog audio cable.
13.
SPEAKERS terminals: Connect speakers with speaker
cables. You can connect the multichannel speakers for
the main room and the speakers for a separate room
(ZONE 2). (
North American models are compatible with
banana plugs.
)
14.
ZONE 2 PRE/LINE OUT jacks: Output audio signals with
an analog audio cable to a pre-main amplifier or power
amplifier in a separate room (ZONE 2). (
Ä
P16)
15.
SUBWOOFER PRE OUT jacks: Connect a powered
subwoofer with a subwoofer cable. Up to two powered
subwoofers can be connected. The same signal is output
from each of the SUBWOOFER PRE OUT jacks.
16.
IR IN A/B, IR OUT jacks: Allows you to connect a
multiroom remote control kit.
17.
12V TRIGGER OUT A/B/C jacks: Allows you to connect
a device with 12V trigger input jack to enable link
operation between the device and the unit.
18.
RS232 port: For connection to the home control system.
1211 1413
109
8
1
23 5 764
15
9
16 17 18
