10
En
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c ETHERNET port
d FM ANTENNA jack and AM ANTENNA terminal
e PC IN jack
f HDMI IN and OUT jacks
g UNIVERSAL PORT jack
h IR IN and OUT jacks
i 12V TRIGGER OUT jacks
j RS232 jack
*
k AC INLET
l u REMOTE CONTROL jack
m Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, PC IN, TV/CD IN)
n MONITOR OUT V jack
o PRE OUT jacks
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, SUBWOOFER)
p ZONE 2 PRE/LINE OUT jacks
q SPEAKERS terminals
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, ZONE 2)
*
Terminal for Interface Control.

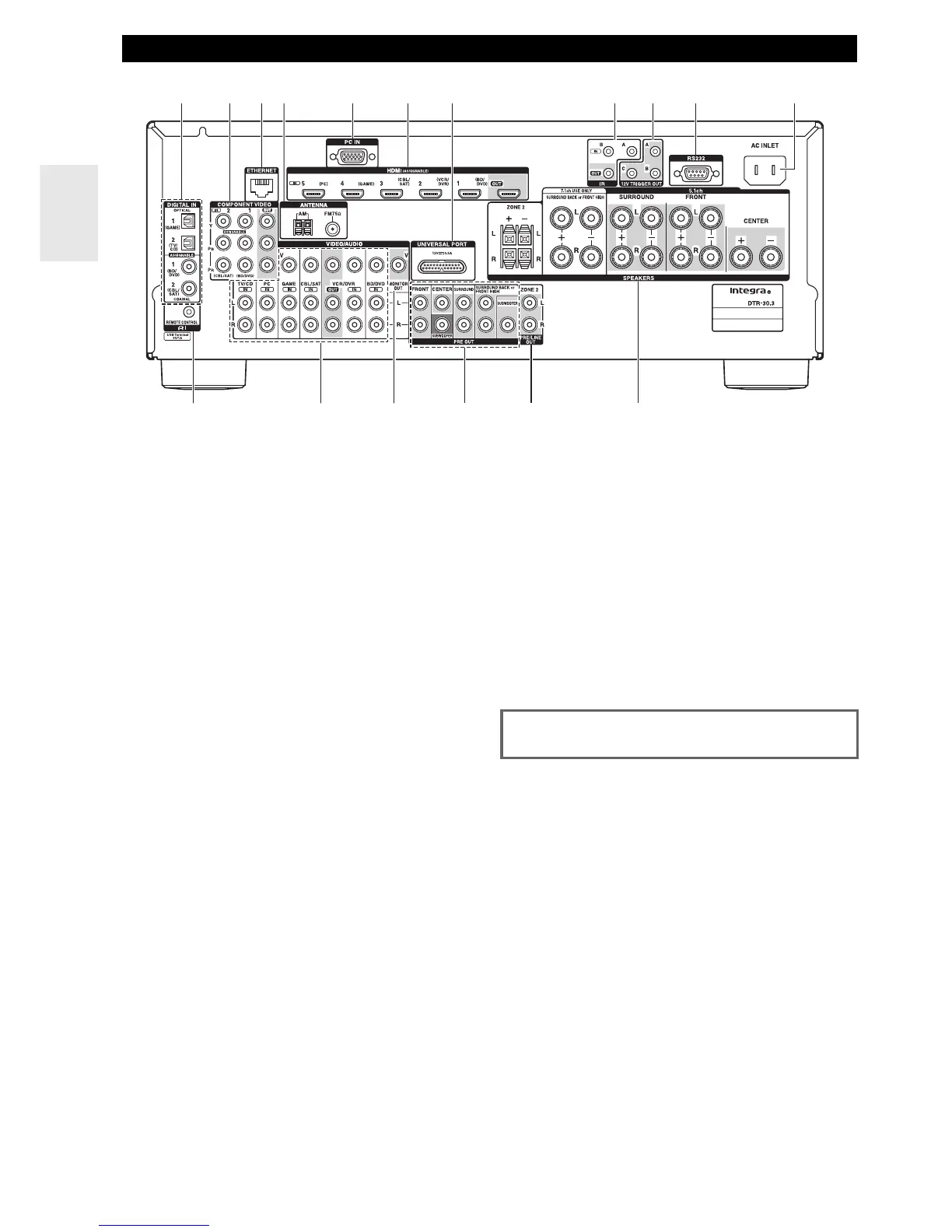

Rear Panel
ab
f
e
l
m
nop q
cd
g hi j k
See “Connecting the AV Receiver” for connection
(➔ pages 12 to 21).
To Next Page
