18
En
Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection
Tips and Video Signal Path” for more information (➔ page 82).
✔: Assignment can be changed (➔ page 44).
Note
*1
Do not connect the AV receiver’s USB port to a USB port on your computer. Music on your computer cannot be played through the
AV receiver in this way.
*2
When USB input is selected, you can input video signals from the AUX Input Video jack. Video signals input from AUX Input
Video will be output from the MONITOR OUT jack.
*3
When you connect your personal computer to PC IN and select the PC input selector, the video of the personal computer is output
from HDMI OUT. However, if you have assigned HDMI IN to the PC input selector, the AV receiver will output signals received
from HDMI IN instead of signals from PC IN. To have the signals output from PC IN, select “-----” for “PC” in the
“HDMI Input” setting (➔ page 43).

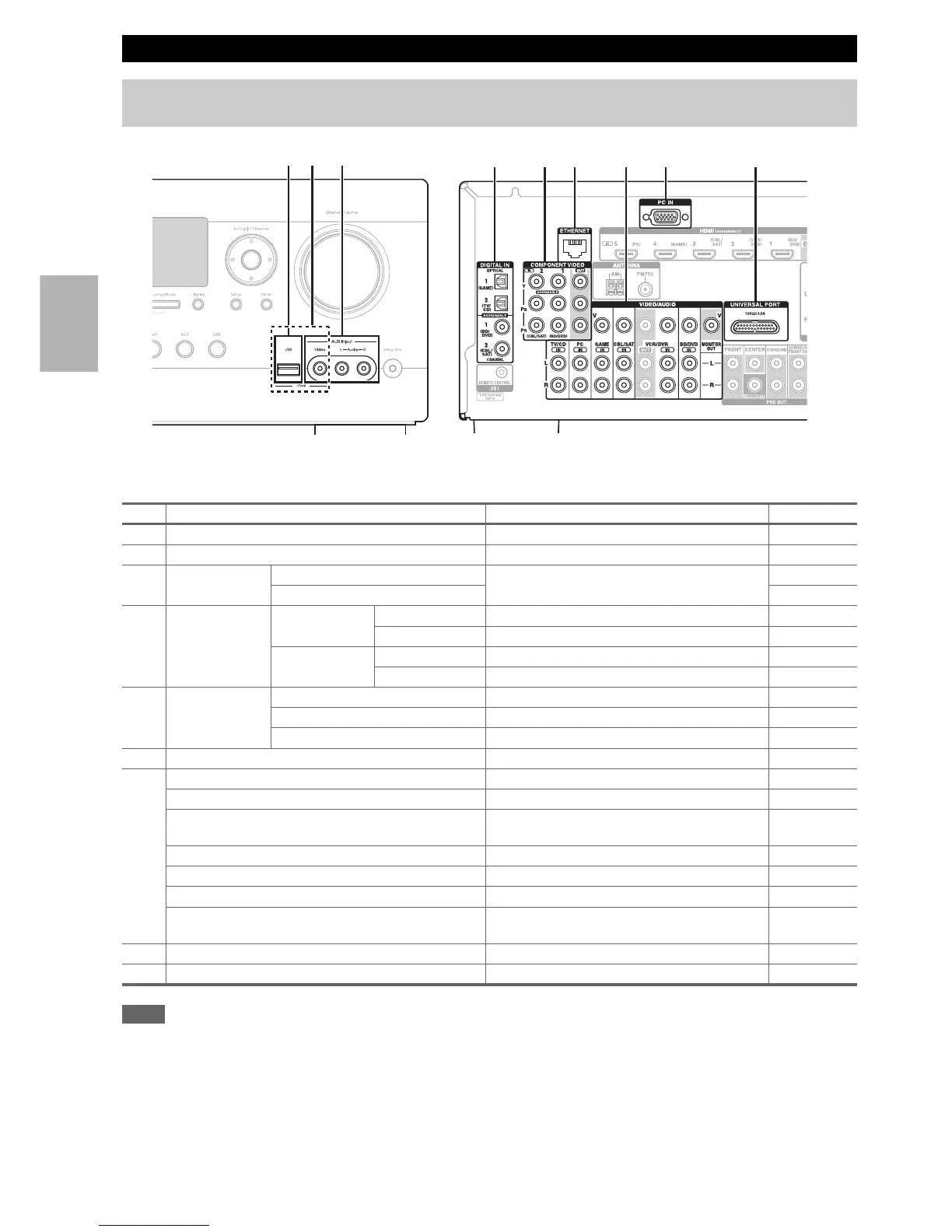

Connecting Your Components
The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to
the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.
No. Jack/Port Components Assignable
A
USB
*1
iPod/iPhone, MP3 player, USB flash drive
B
USB, AUX Input Video
*2
iPod/iPhone (video playback)
C
AUX Input Video Camcorder, etc.
Audio L/R
D
DIGITAL IN OPTICAL 1 (GAME) Game console ✔
2 (TV/CD) TV, CD player ✔
COAXIAL 1 (BD/DVD) Blu-ray Disc/DVD player ✔
2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔
E
COMPONENT
VIDEO
IN 1 (BD/DVD) Blu-ray Disc/DVD player, RI dock ✔
IN 2 (CBL/SAT) Satellite/cable set-top box, RI dock, etc. ✔
OUT TV, projector, etc.
F
ETHERNET Router
G
MONITOR OUT TV, projector, etc.
BD/DVD IN Blu-ray Disc/DVD player
VCR/DVR IN VCR or DVD recorder/digital video recorder, RI
dock
CBL/SAT IN Satellite/cable set-top box, etc.
GAME IN Game console, RI dock
PC IN
Personal computer
TV/CD IN TV, CD player, cassette tape deck, MD, CD-R,
Turntable
*4
, RI dock
H
PC IN
*3
Personal computer
I
UNIVERSAL PORT Universal port option dock (UP-A1 etc.)
CAB
EDGIF H
