Making antenna connections
Please make sure that you follow the considerations
below regarding the location.
Keep the antenna away from noise sources (neon signs,
busy roads, etc.).
It is dangerous to put the antenna close to power lines.
Keep it well away from power lines, transformers, etc.
To avoid the risk of lightning and electrical shock,
grounding is necessary. Follow item 19 of the “Impor-
tant Safeguards” on page 2 when you install the out-
door antenna.
The outdoor antenna will be more effective if it is
stretched horizontally above a window or outside.
Do not remove the AM loop antenna.
To avoid the risk of lightning and electrical shock,
grounding is necessary. Follow item 19 of the “Impor-
tant Safeguards” on page 2 when you install the out-
door antenna.
Do not use the same antenna for both FM and TV (or
VCR) reception since the FM and TV (or VCR) signals
can interfere with each other. If you must use a com-
mon FM/TV (or VCR) antenna, use a directional linkage
type splitter.

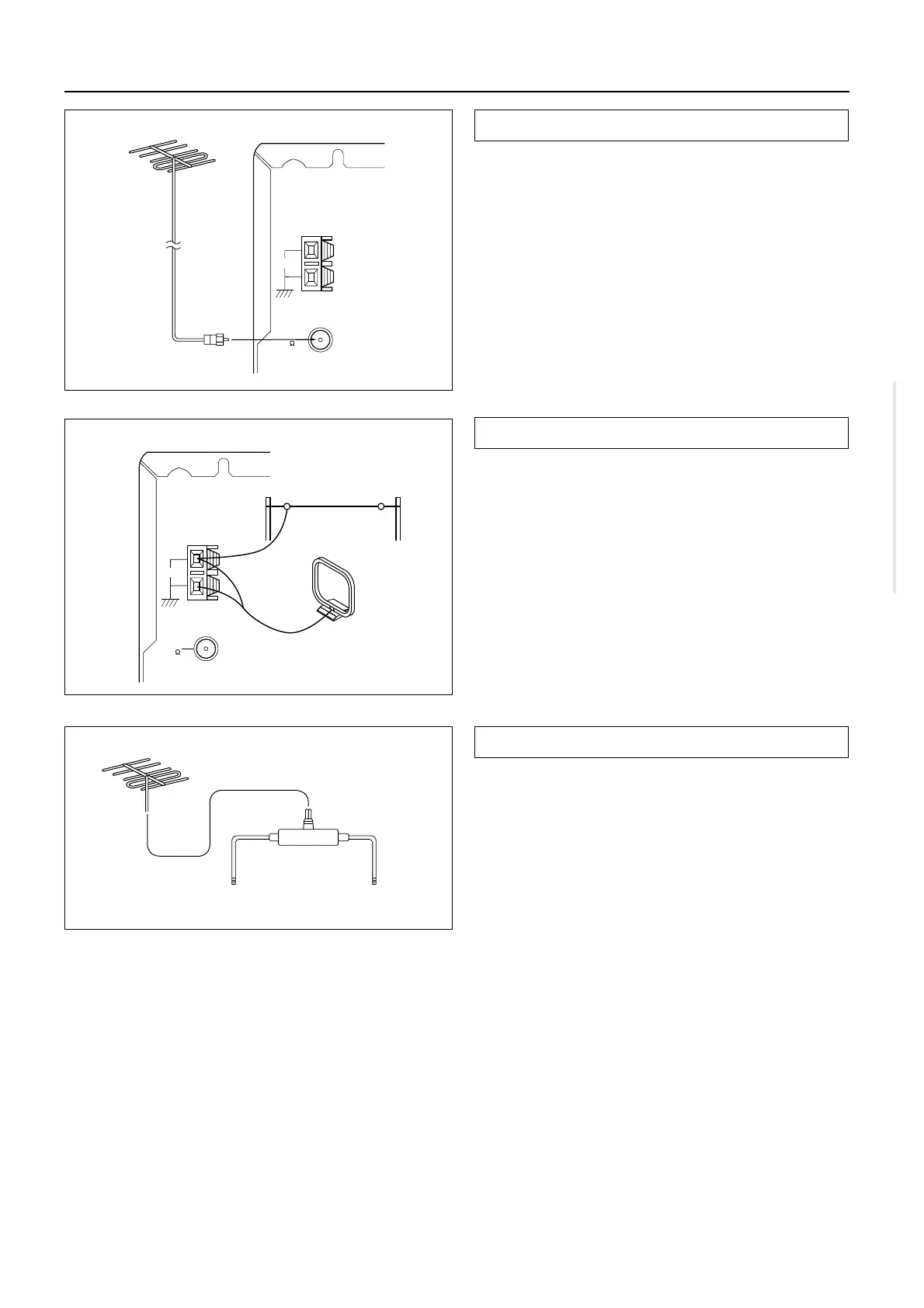

Connecting an FM outdoor antenna
Connecting an AM outdoor antenna
Directional Iinkage
AM
FM
75
ANTENNA
Outdoor
antenna
AM
FM
75
ANTENNA
Directional linkage
type splitter
To DTR-5.1 To TV (or VCR)
