Making antenna connections
Assemble the loop antenna as shown in the illustration.
• Refer to the next page for details on connecting the
AM loop antenna.
1. Press down the lever.
2. Insert the wire into the hole.
3. Release the lever to replace it.
Connecting the FM indoor antenna:
The FM indoor antenna is for indoor use only. Extend the
antenna and move it in various directions until the
clearest signal is received. Fix it with push pins or similar
implements in the position that will cause the least
amount of distortion.
If the reception is not very clear with the attached FM
indoor antenna, the use of an outdoor antenna is rec-
ommended.
Remove the insulation at the tip of the cable, and insert
the cable securely, fully to the end of the exposed tip.
Connecting the AM loop antenna:
The AM loop antenna is for indoor use only. Set it in the
direction and position where you receive the clearest
sound. Put it as far away as possible from the unit, TVs,
speaker cables, and power cords.
When reception is not satisfactory with the attached
AM loop antenna alone, connection of an outdoor
antenna is recommended.

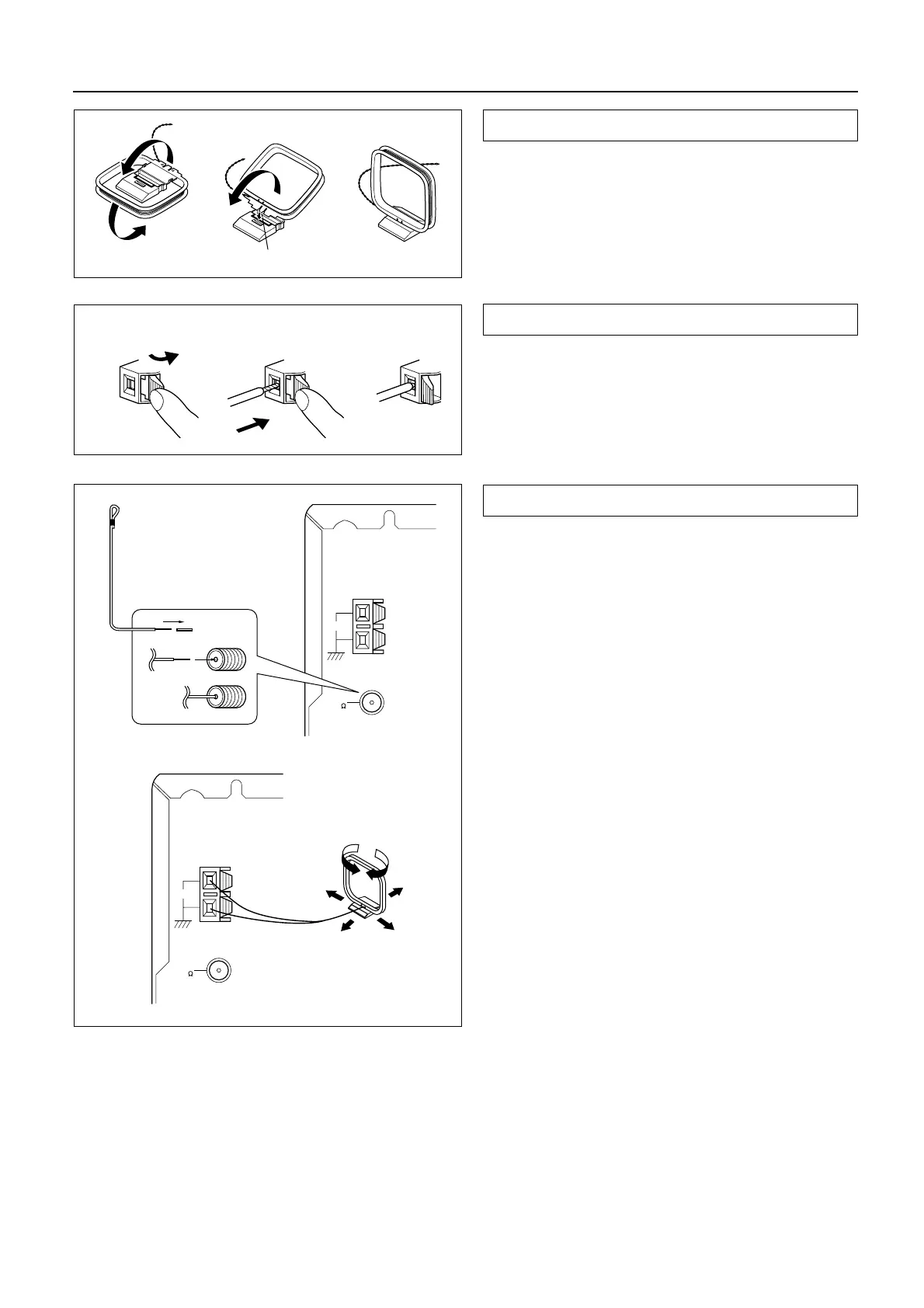

Assembling the AM loop antenna
Connecting the antenna cable
Connecting the included antennas
12
3
Insert into the hole.
