Selecting a sound source
Assigning the digital input
If another device is connected to the digital input jack
of the DTR-5.1, assign the digital input to DVD, CD,
VIDEO 1, VIDEO 2, VIDEO 3, or TAPE depending on the
type of connected device. Follow the steps (1–4) below.
Note:
The default setting is “ANALOG.” In this case, you can-
not play any digital signals from the digital input jacks
(Dolby digital, DTS, etc.).
OPT1 — The DTR-5.1 plays back a digital signal input
from the OPTICAL 1 jack.
OPT2 — The DTR-5.1 plays back a digital signal input
from the OPTICAL 2 jack.
COAX1 — The DTR-5.1 plays back a digital signal
input from the COAX 1 jack.
COAX2 — The DTR-5.1 plays back a digital signal
input from the COAX 2 jack.
ANALOG — The DTR-5.1 plays back an analog signal
input from the ANALOG input jack. (Digital signals
input from the digital input jacks will not be played.)
Selecting the input signal format
Normally, select AUTO for this parameter. You can also
select DIGITAL or ANALOG depending on the source.
Follow the steps (4–6) below to change the setting.
AUTO (digital signal/analog signal playback mode)
Digital signals have priority for playback. If no digital sig-
nals are input, the DTR-5.1 plays back analog signals.
When the DTR-5.1 plays back digital signals, it automati-
cally detects the signal format (Dolby Digital, DTS, or
PCM) and performs the necessary decoding process.
DIGITAL (digital signal playback mode)
The DTR-5.1 plays back digital signals. (Input analog sig-
nals will be ignored.)
The DTR-5.1 automatically detects the signal format
(Dolby Digital, DTS, or PCM) and performs the necessary
decoding process.
ANALOG (analog signal playback mode)
The DTR-5.1 plays back analog signals. (Input digital sig-
nals will be ignored.)

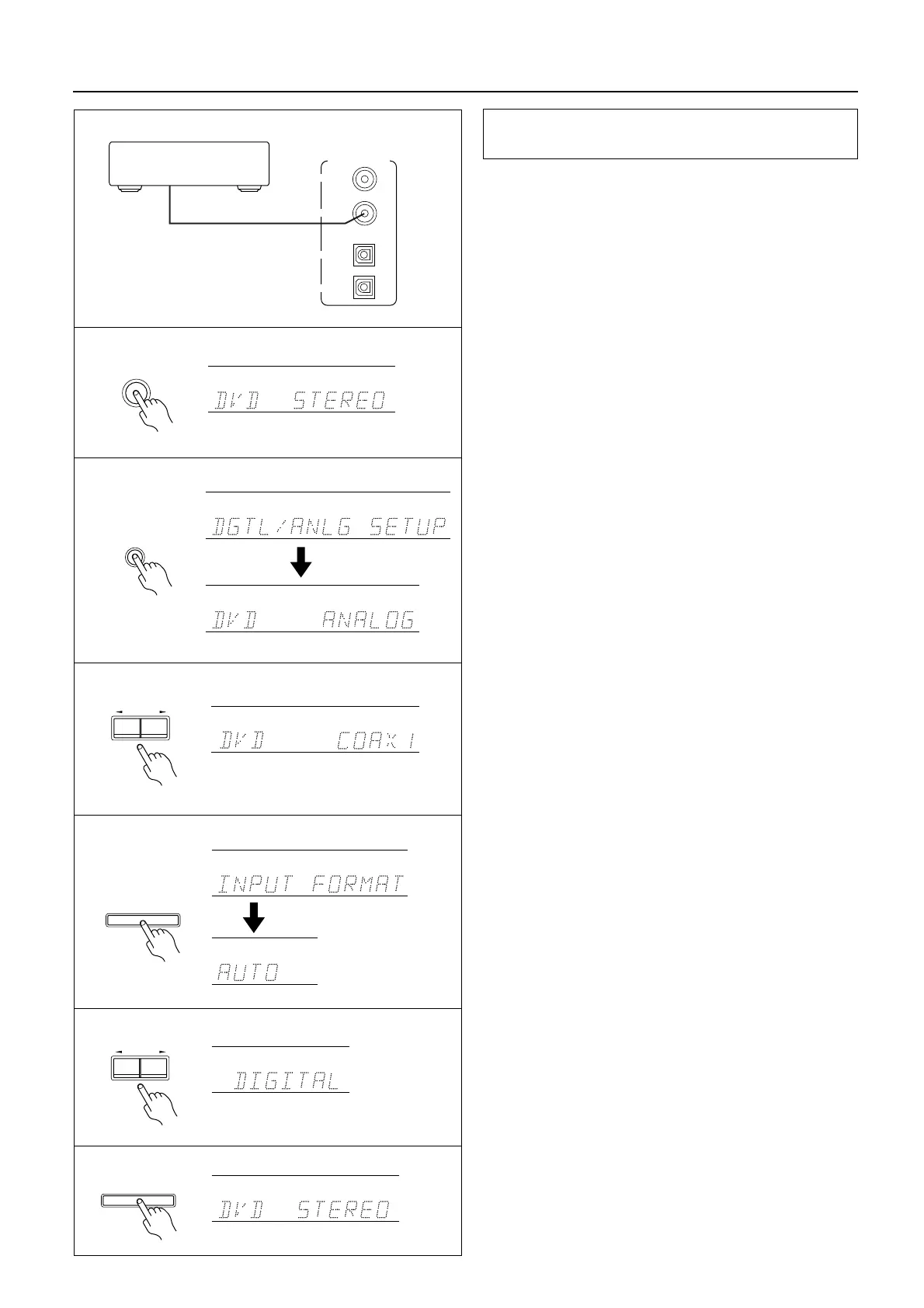

Assume that you have connected a DVD player to the
COAXIAL 1 connector.
1. Use the INPUT button to select “DVD.”
2. Press the Digital/Analog button to set digital input.
“DGTL/ANLG SETUP” appears, followed by the cur-
rent setting (OPT1, OPT2, COAX1, COAX2, or ANA-
LOG).
3. Press “Preset/Mode ADJ √/®” to select COAX1.
4. Press the Enter button.
The unit displays “INPUT FORMAT” in a few seconds,
followed by the current setting (AUTO, DIGITAL, or
ANALOG).
5. Press “Preset/Mode ADJ √/®” to select AUTO, DIGI-
TAL or ANALOG.
6. Press the Enter button.
Tip:
You may play analog audio while digital input is
selected if you select “ANALOG” in Step 5.
Note:
• You cannot select “INPUT FORMAT” as described in
Step 4 if you select “ANALOG” in Step 3.
• You can assign digital input to DVD, VIDEO 1,
VIDEO 2, VIDEO 3, TAPE, and CD.
Assigning the digital input/Selecting the input
signal format
Enter
1
2
3
4
5
6
DVD Player
DTR5.1
DIGITAL INPUT
COAXIAL 1
COAXIAL 2
OPTICAL 1
OPTICAL 2
DVD
Digital/
Analog
UpDown
Preset/Mode ADJ
Enter
UpDown
Preset/Mode ADJ
