Control positions and names
Using the remote controller, you can control a CD
player or cassette tape deck connected to the
connector of the DTR-5.1. (See page 9 for more informa-
tion.)
1. SEND/LEARN indicator [31]
2. ON/STNBY button [31]
Power on/Standby on
3. SLEEP button [20]
Sleep function button
4. MACRO DIRECT button [37]
Macro Direct function
5. MODE buttons [31~39]
6. DISPLAY/DVD SET button [32]
7. CH +/– buttons [31]
8. EXIT/RETURN button [32]
9. PREV CH button [This button is not used for the
DTR-5.1.]
10. TRACK button [32]
11. CD/TAPE/DVD/MD operation buttons [31~33]
12. Input Selector buttons [17]
The V4 button is not used for the DTR-5.1.
13. Numeric key/STEREO/DSP√, ®/SURROUND/SP
A, B/CH SEL/LEVEL+,–/DIMMER buttons [31~33]
[The DIRECT button and THX* button are not used
for the DTR-5.1.]
14. ENT button [34, 35, 39]
15. DISC button [32]
16. MUTING button [20]
Mute button
17. TEST/TV/VCR button [16]
18. ENTER/cursor buttons [32]
19. VOLq/u button [17]
Volume adjustment
20. OSD/MENU button [32]
21. MACRO MODE button [36]
22. LIGHT button [31]
*The THX
®
button activates the THX mode on products certi-
fied by Lucasfilm.
This control will not function on products which are not THX-
certified. THX is a registered trademark of Lucasfilm, Ltd.

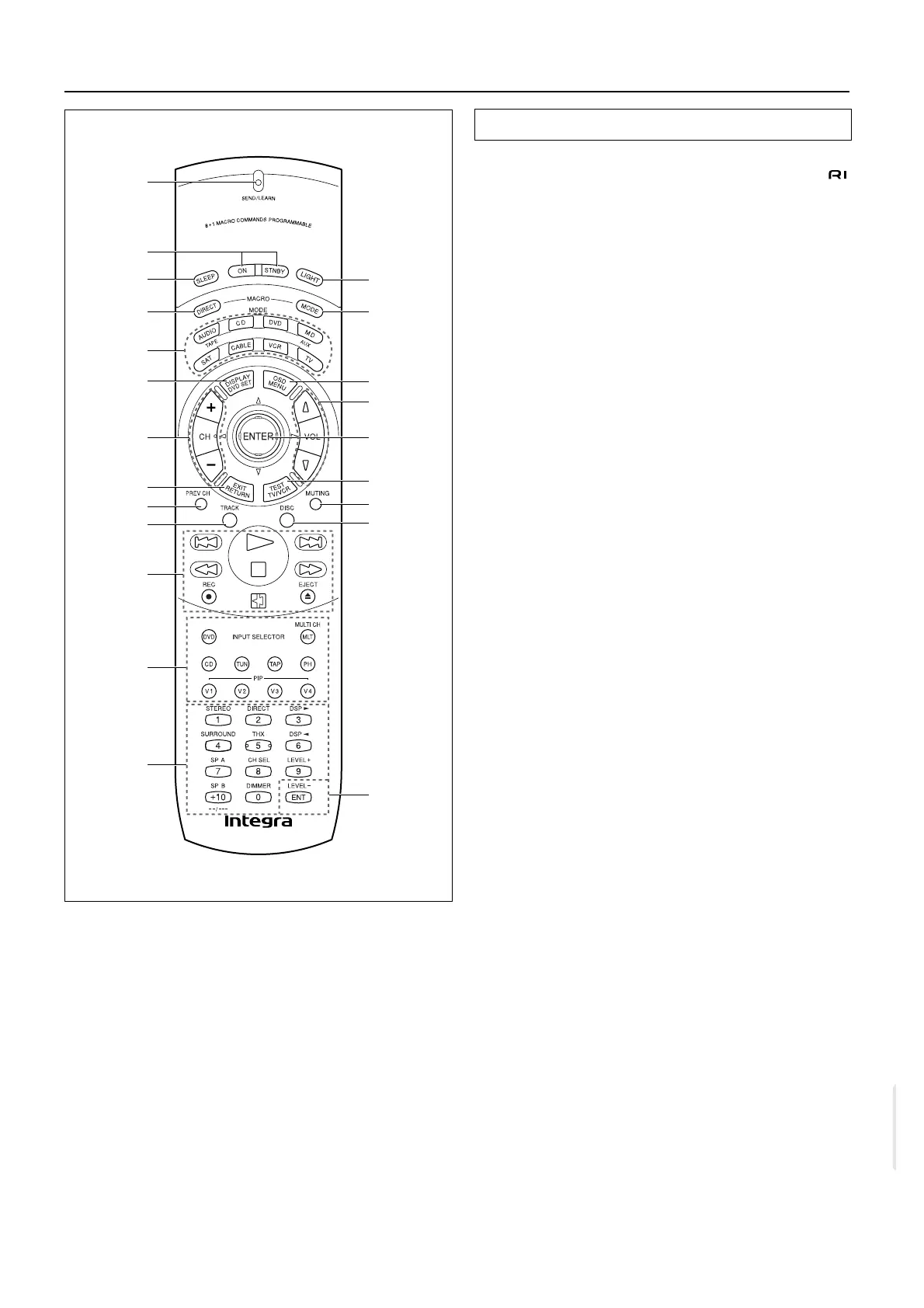

Remote controller
