10
Front & Rear Panels—Continued
For detailed information, see the pages in parentheses.
a Speaker/channel indicators
Indicate the speaker channels used by the current
listening mode.
The following abbreviations indicate which audio
channels are outputted for the current listening
mode.
b Z2 indicator (135)
Lights when Powered Zone 2 is being used.
c Z3 indicator (135)
Lights when Powered Zone 3 is being used.
d Listening mode and format indicators (83)
Show the selected listening mode and audio input
signal format.
Audyssey (53, 97):
Flashes during Audyssey MultEQ® Room Correc-
tion and Speaker Setup. Lights when the “Equalizer
Settings” is set to “Audyssey” or
Audyssey Dynamic Surround Expansion™ listen-
ing mode is selected.
Dynamic EQ (101):
Lights when “Dynamic EQ” is enabled.
Vol (101):
Lights when “Dynamic Volume” is enabled.
e NETWORK indicator (120)
Lights when the Net input selector is selected.
f Tuning indicators
RDS (Australian models) (77):
Lights when tuned to a radio station that supports
RDS (Radio Data System).
AUTO (64):
Lights when Auto Tuning mode is selected for AM
or FM radio. Goes off when Manual Tuning mode is
selected.
TUNED (64):
Lights when tuned to a radio station.
FM STEREO (64):
Lights when tuned to a stereo FM station.
g SLEEP indicator (61)
Lights when the Sleep function has been set.
h Bi AMP indicator (50)
Lights when the “Speakers Type(Front)” setting is
set to “Bi-Amp”.
i Headphone indicator (61)
Lights when a pair of headphones are plugged into
the Phones jack.
j Message area
Displays various information.
k USB indicator
Lights when a USB mass storage device is detected.
l Volume level (59)
Displays the volume level.
m MUTING indicator (61)
Flashes while the AV receiver is muted.
n Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: HDMI, ANALOG, or DIGITAL.

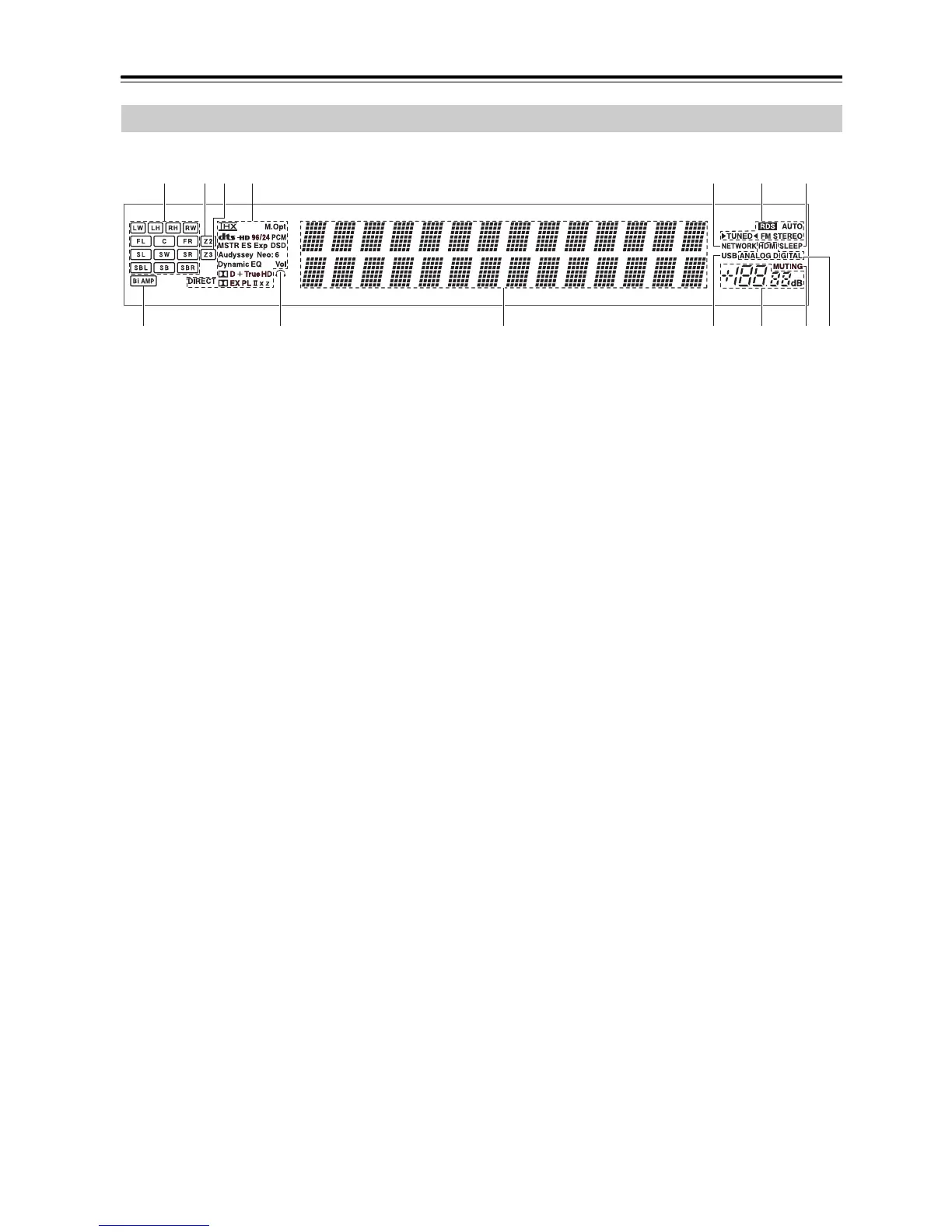

Display
bdcfea g
hi
k
lmn
j
LW: Front wide left
LH: Front high left
RH: Front high right
RW: Front wide right
FL: Front left
C: Center
FR: Front right
SL: Surround left
SW: Subwoofer (Low Frequency Effects)
SR: Surround right
SBL: Surround back left
SB: Surround back
SBR: Surround back right
