Integra DTR-50.1 - Connecting Camcorders or Other Devices

35
Connecting the AV receiver—Continued

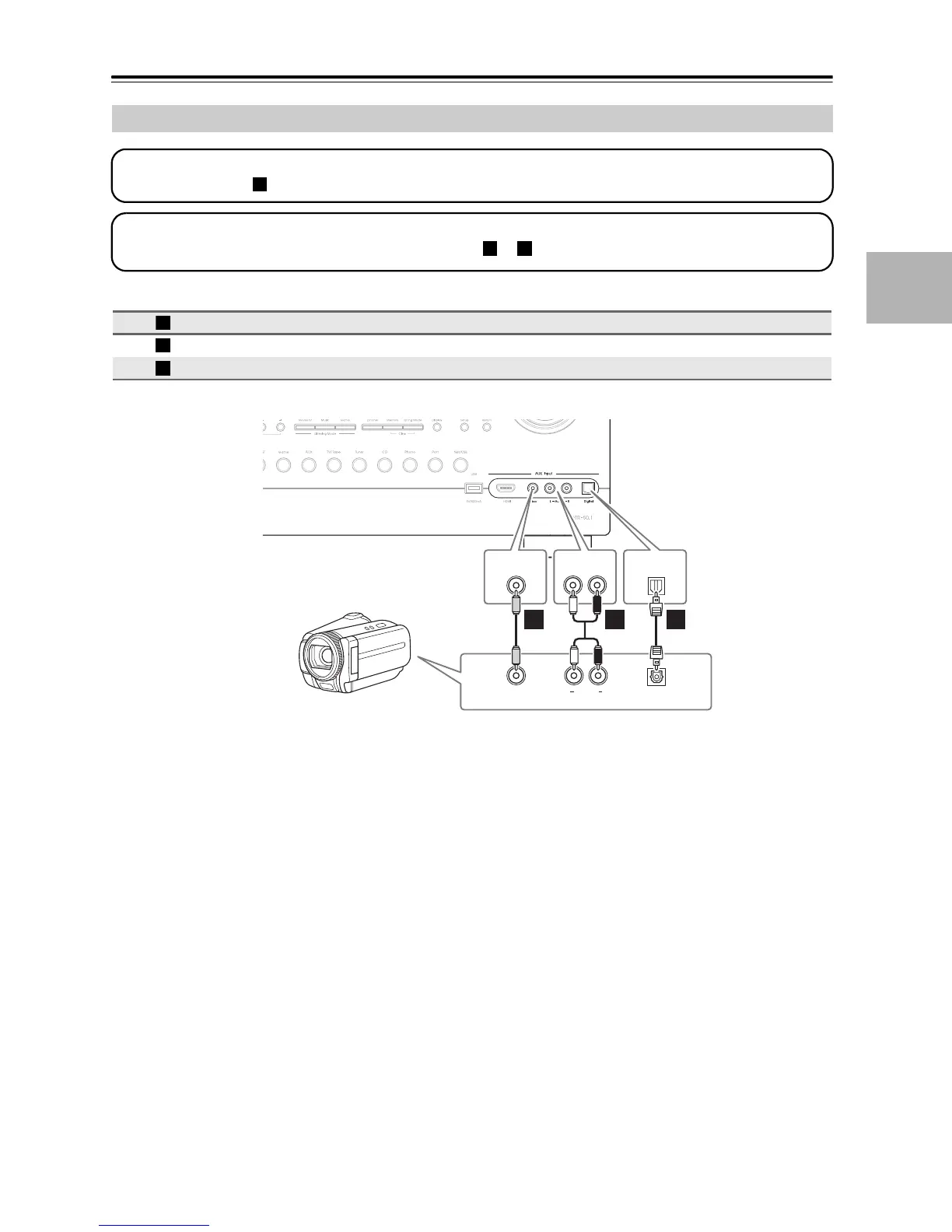

Connecting a Camcorder or Other Device
Connection AV receiver Signal flow Camcorder etc.
AUX Input Video ⇐ Composite video output
AUX Input L-Audio-R ⇐ Analog audio L/R output
AUX Input Digital ⇐ Digital optical output
Step 1: Video Connection
Make the connection .
A
Step 2: Audio Connection
Choose an audio connection that matches your camcorder ( or ), and then make the connection.
a b
A
a
b
AUDIO
OUT
VIDEO
OUT
LR
OPTICAL
OUT
AUX Input
Video
AUX Input
L-Audio-R
AUX Input
Digital
A b
a
Camcorder etc.
