Safety Information and Introduction
En-7
Front & Rear Panels
The AV receiver has various logos printed on it. They are
not shown here for clarity.
For detailed information, see the pages in parentheses.
a 8On/Standby button (21)
b Hybrid Standby indicator (54)
c Monitor Out button (55)
d Remote control sensor (4)
e Tone and Tone Level buttons (50, 79)
f Display (8)
g Listening Mode buttons (38)
h Dimmer button (North American models) (46)
i Memory button (32)
j Tuning Mode button (32)
k Display button (46)
l Setup button (53)
m Tuning q/w (32), Preset e/r (32), cursor and
enter (middle) buttons
n Return button
o Master Volume control (24)
p Zone 2/Zone 3 and Off buttons (78)
q Whole House Mode and Off buttons (47)
r Phones jack (47)
s Setup Mic jack (36)
t Input selector buttons (24)
u USB port (18)
v AUX Input jacks (17, 18)
w RT/PTY/TP button (Australian models) (33)

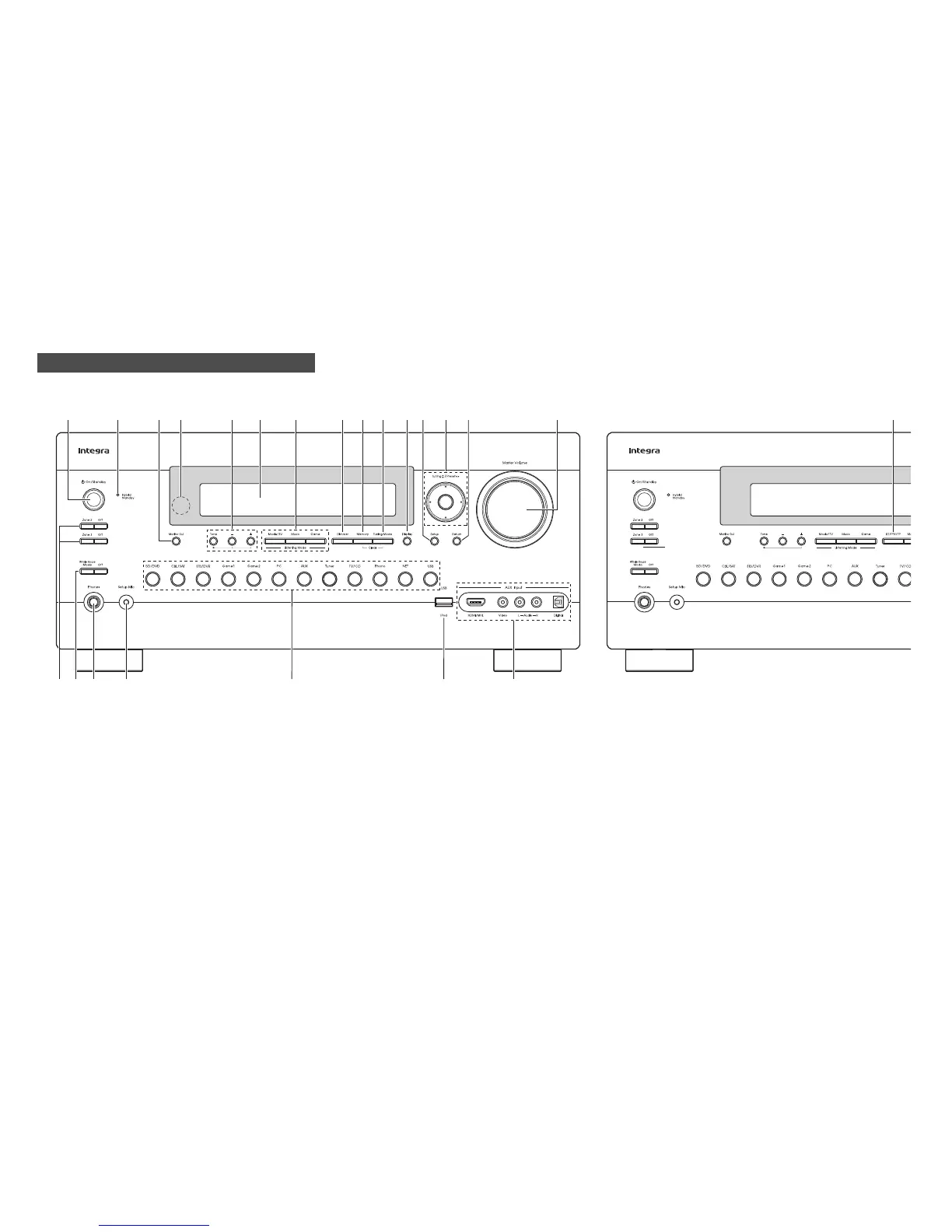

Front Panel
(North American models) (Australian models)
acedghfijkmln ob
t ur
spq
v
w
