1
2
3
4
5
6
7
8
10
12
13
14
16
18
19
20
21
22
28
29
31
81
P7201
U9
U15
U44
U45
U46
U47
U48
4
4
4
4
30
REF. NO. PART NO. DESCRIPTION
1 27111251 Front bracket
2 27141787 Retainer HP
3 838430088 3TTB+8B(BC),Self-tapping screw
4 838130088 3TTB+8B,Self-tapping screw
5 28325756 Knob, standby
6 27150472 Shield plate FFC
7 28191948 Clear plate
8 28133387 Back plate
9 28198905 Facet
10 82143010 3P+10FN(BC),Pan head screw
12 28198933 Facet 5
13 28198936 Facet 6
14 27215363 Decorative frame
16 28135278 Badge
18 28325964A Knob CL
19 28325965 Knob TUN
20 28330137 Cap, front
21 28330146 Cap DI
22 27270375 Spacer
28 28325913 Knob, volume
29 28325753 Knob, power
30 880016 P3035B,Plastic rivet
31 27255004 CS-1U,Clip
81 27212359 Front panel
P7201 2047335512 NCFC7-335512,Flexible cable
U2 1A906529-1Q NAETC-7229-1Q,PC board for holder
U3 1A906530-1Q NAETC-7230-1Q,PC board for holder
U9 1A906535-1T NASW-7235-1T,Power switch PC board ass'y
U15 1A906541-1T NAETC-7241-1T,PC board for holder
U44 1A906530-1I NADIS-7330-1I,Display circuit PC board ass'y
U45 1A906531-1I NASW-7331-1I,Volume PC board ass'y
U46 1A906332-1I NAETC-7332-1I,Headphone terminal PC board ass'y
U47 1A906527-1Q NAAF-7227-1Q,Front video PC board ass'y
U48 1A906528-1Q NADG-7228-1Q,Front video 2 PC board ass'y
U2
U3
9
DTR-7.2

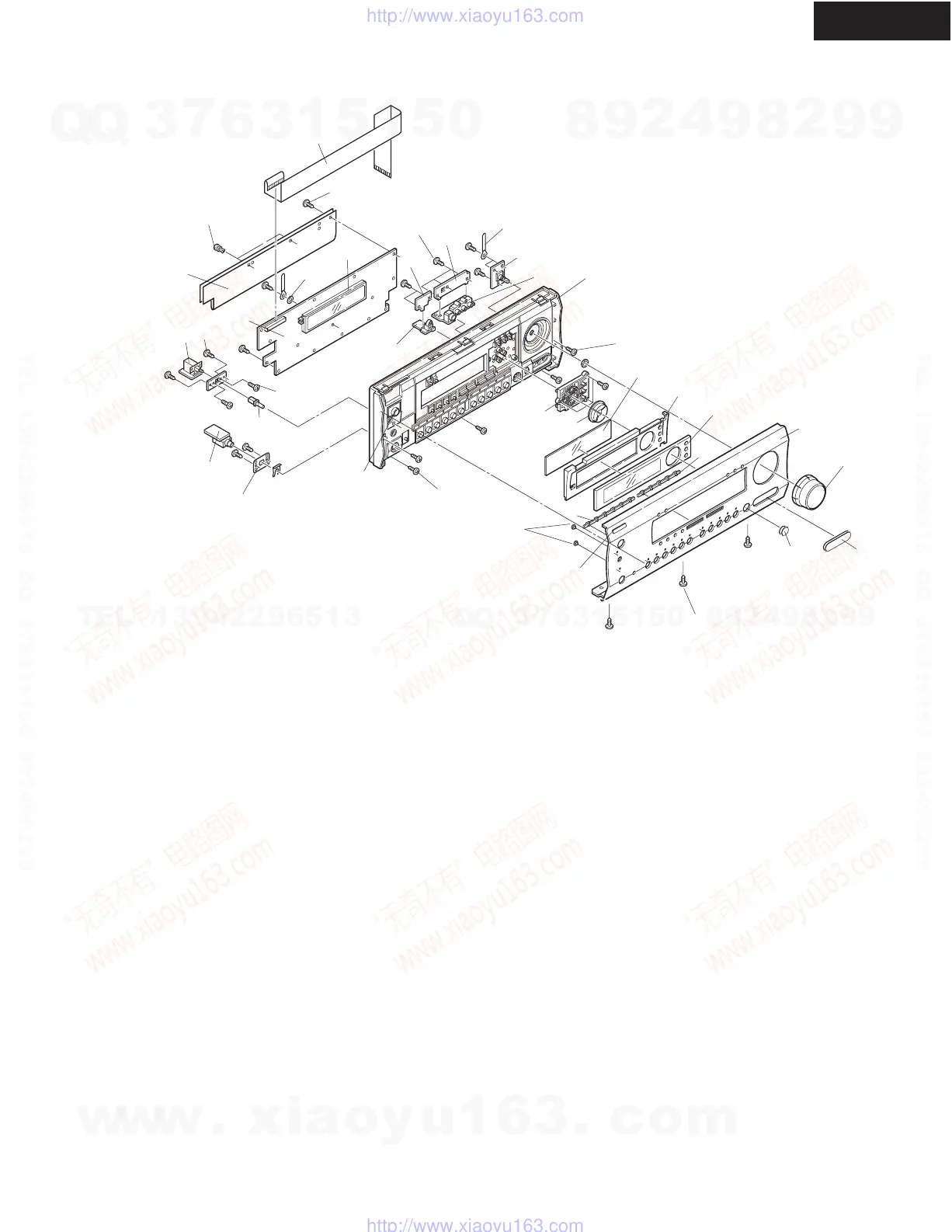

EXPLODED VIEW
Front panel section
