38
70
71
72
73
74
75
F901
P1010
U1
U7
U10
U11
U16
U31
U32
U33
U34
U35
U36
U37
U38
U39
U40
U51
71
40
REF. NO. PART NO. DESCRIPTION
38 27190164 KGLS-14S,Holder
70 27122913A Rear panel
71 838430088 3TTB+8B(BC),Self-tapping screw
72 87643010 W3*10F(BC),Flat washer
73 838930088 3TTB+8B(UN),Self-tapping screw
74 838430068 3TTB+6B(BC),Self-tapping screw
75 838440089 4TTB+8C(BC),Self-tapping screw
76 29363048 Label ABUS
F901 252199 10A-UL,Fuse
P1010 2047151012 NCFC7-151012,Flexible cable
U1 1A906526-1Q NADG-7226-1Q,Main circuit PC board ass'y
U7 1A906533-1T NAPS-7233-1T,Primary circuit PC board ass'y
U10 1A906536-1T NAETC-7236-1T,Speaker terminal F/C PC board ass'y
U11 1A906537-1T NAETC-7237-1T,Speaker terminal SR/SB PC board ass'y
U16 1A906542-1T NAETC-7242-1T,AC inlet terminal PC board ass'y
U31 1A906562-1Q NAAF-7262-1Q,Preamplifier circuit PC board ass'y
U32 1A906563-1Q NAAF-7263-1Q,Audio terminal PC board ass'y
U33 1A906564-1Q NAAF-7264-1Q,Video terminal PC board ass'y
U34 1A906565-1Q NAETC-7265-1Q,ABUS circuit PC board ass'y
U35 1A906567-1Q NAAR-7267-1Q,Connector PC board ass'y
U36 1A906568-1Q NAVD-7268-1Q,Composite video circuit PC board ass'y
U37 1A906569-1Q NAVD-7269-1Q,S video circuit PC board ass'y
U38 1A906570-1Q NAVD-7270-1Q,Component video circuit PC board ass'y
U39 1A906572-1Q NAETC-7272-1Q,RI terminal PC board ass'y
U40 1A906573-1Q NAETC-7273-1Q,PC board for holder
U51 240138A or ENG06501QR or
240134A TFCE1U114B,Tuner unit
DTR-7.2

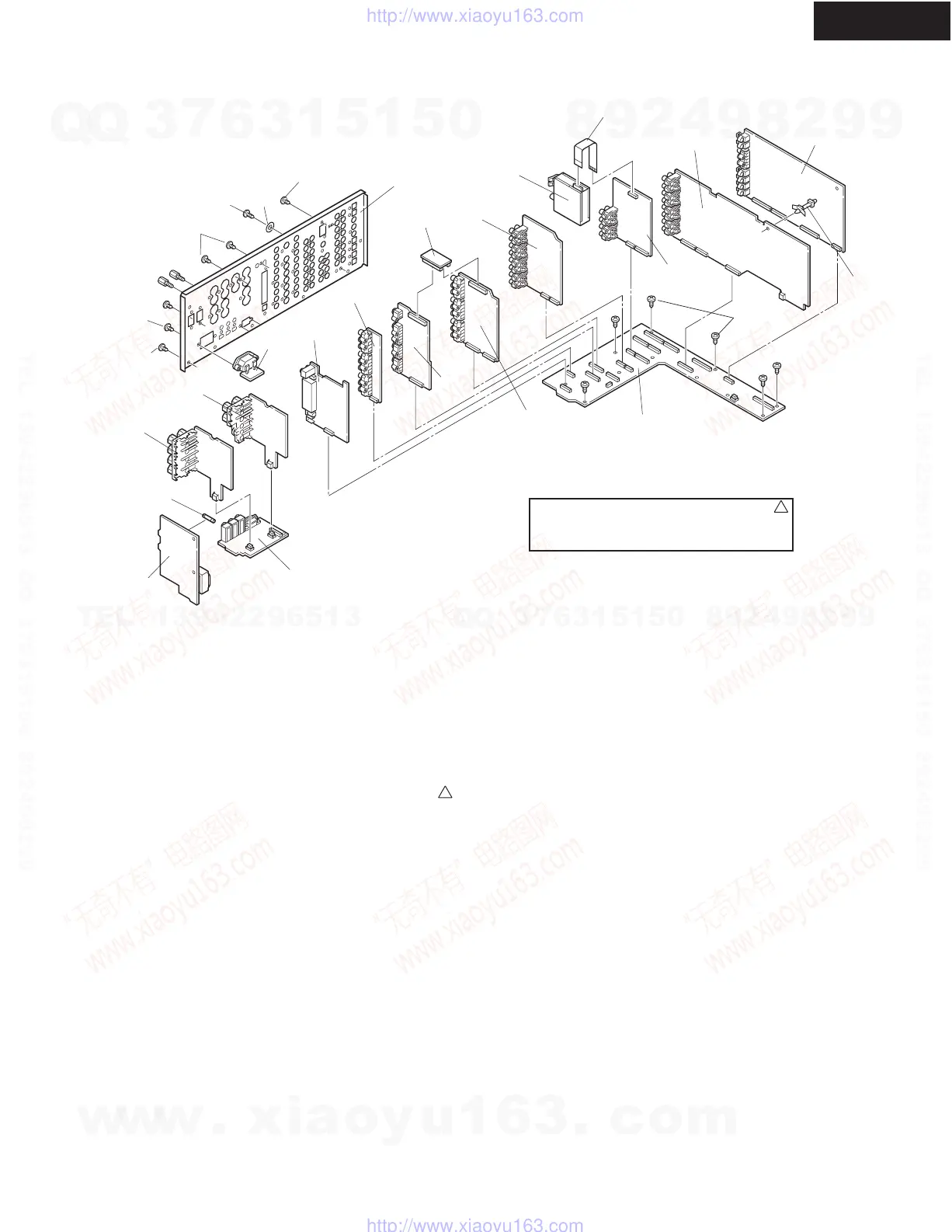

EXPLODED VIEW
Rear panel section
NOTE: THE COMPONENTS IDENTIFIED BY MARK !
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
!
