Theory of Operation
Developer’s Kit User Manual 19
3 Theory of Operation

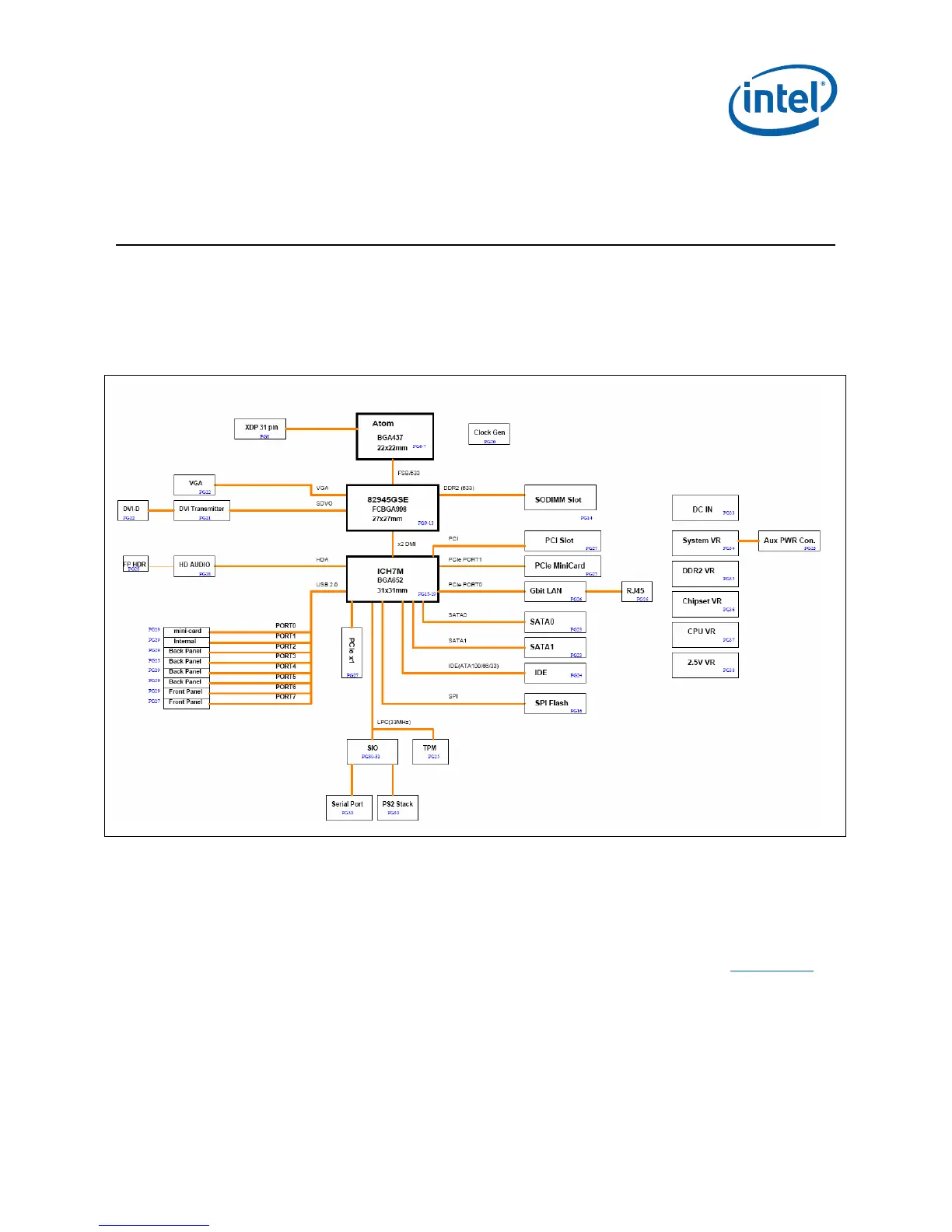

3.1 Block Diagram
Figure 2. Intel
®
Atom™ Processor N270 and Mobile Intel
®
945GSE Express Chipset CRB
Block Diagram
NOTE: Schematic pages are shown for reference in the block diagram.
3.2 Mechanical Form Factor
The development board conforms to the mini-ITX form factor, 6.75” X 6.75” (17 cm X
17 cm). Internal and rear panel system I/O connectors are described in
Chapter 4.3.
3.3 Thermal Management
The objective of thermal management is to ensure that the temperature of each
component is maintained within specified functional limits. The functional temperature
