Intel Atom N270 - Power Supply; I;O Headers and Connectors; Front Panel I;O Headers

Developer’s Kit User Manual
4.2.1 Power Supply
Type : External
Input : 120/240 VAC, 50-60Hz
Output : 12 VDC
4.3 I/O Headers and Connectors
4.3.1 Front Panel I/O Headers
• Standard front panel header (with additional pins for wireless activity LED)
• Intel
®
High Definition Audio front panel audio header (supporting jack
sensing). One headphone, 3.5mm Tip/Ring/Sleeve (TRS) w/Lime Green
housing and one microphone, 3.5mm TRS w/ Pink housing.
• Standard front panel USB 2x5 supporting two ports, USB 2.0 type A
receptacle.

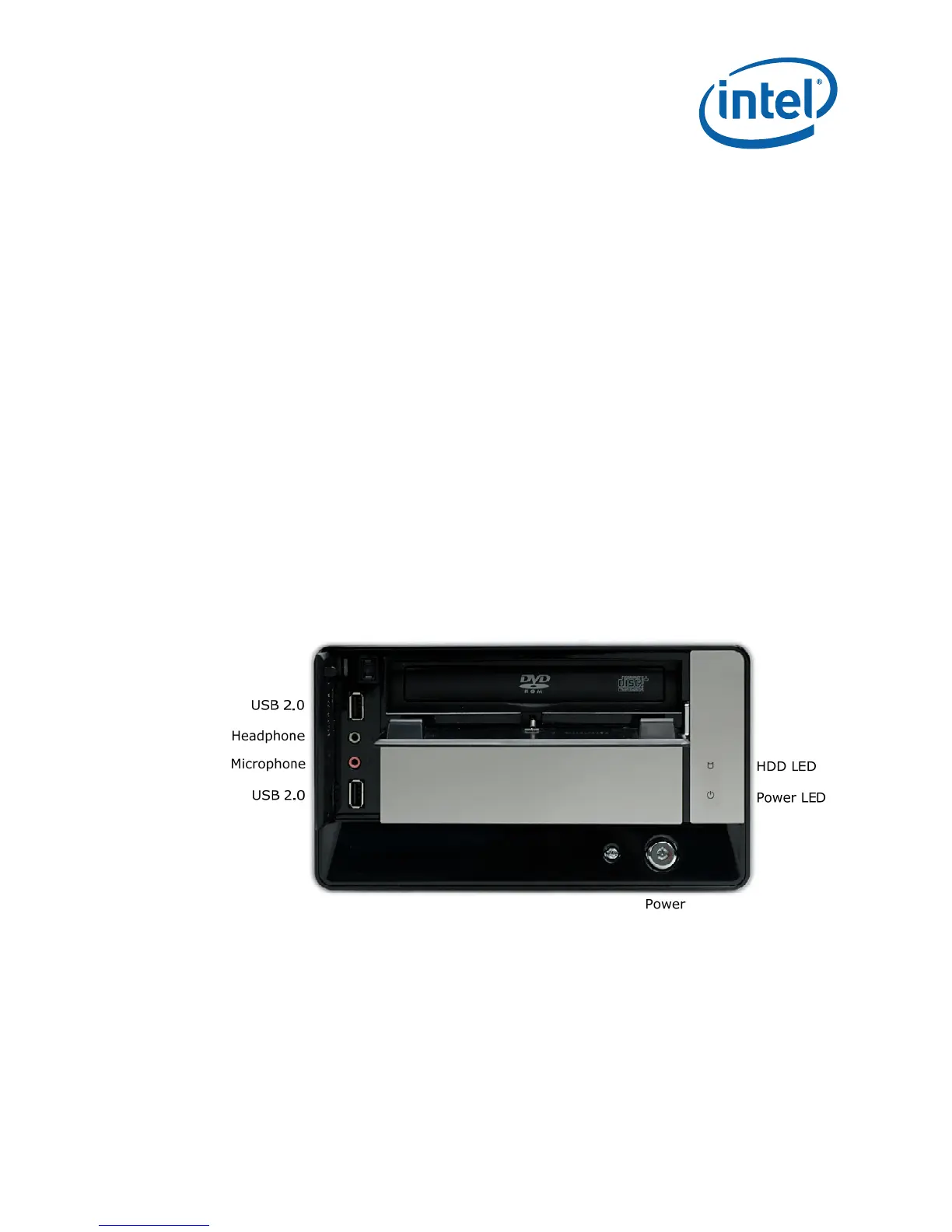

Figure 4. Front Panel
