4.3.2 Back Panel I/O Connectors

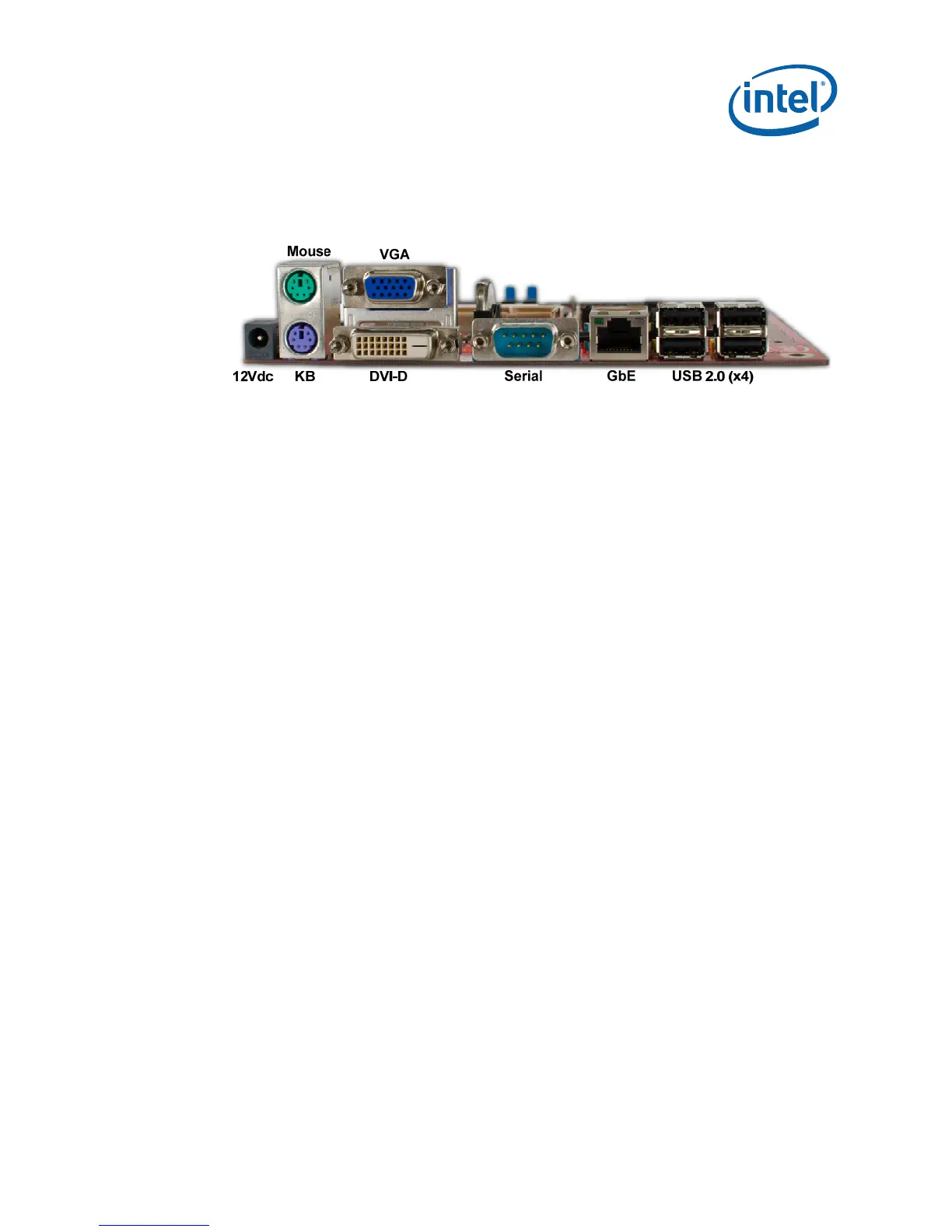

Figure 5. Back Panel
• DC Power In : 12 VDC Power jack
• PS/2 Mouse : Green
• PS/2 Keyboard : Purple
• Graphics : 1 each VGA and DVI-D
• Serial Port : 1 each DB-9, (Teal or turquoise color coding)
• LAN : RJ45 with LED indicators for link status and activity
• USB (Gen. Purpose): 4 each, USB 2.0 type A

Intel Atom N270 Specifications

General

Manufacturer	Intel
Model	Atom N270
Clock Speed	1.6 GHz
Number of Cores	1
Number of Threads	2
L2 Cache	512 KB
FSB Speed	533 MHz
TDP	2.5 W
Manufacturing Process	45 nm
Instruction Set	x86
Max Memory Size	2 GB
Category	Microprocessor
Memory Types	DDR2
Graphics	Intel GMA 950
