Table 4-6: DC Output Noise/Ripple
Output Maximum Ripple and Noise (mV p-p)
+12V1DC 120
+12V2DC 120
+5VDC 50
+3.3VDC 50
-12VDC 120
+5VSB 50

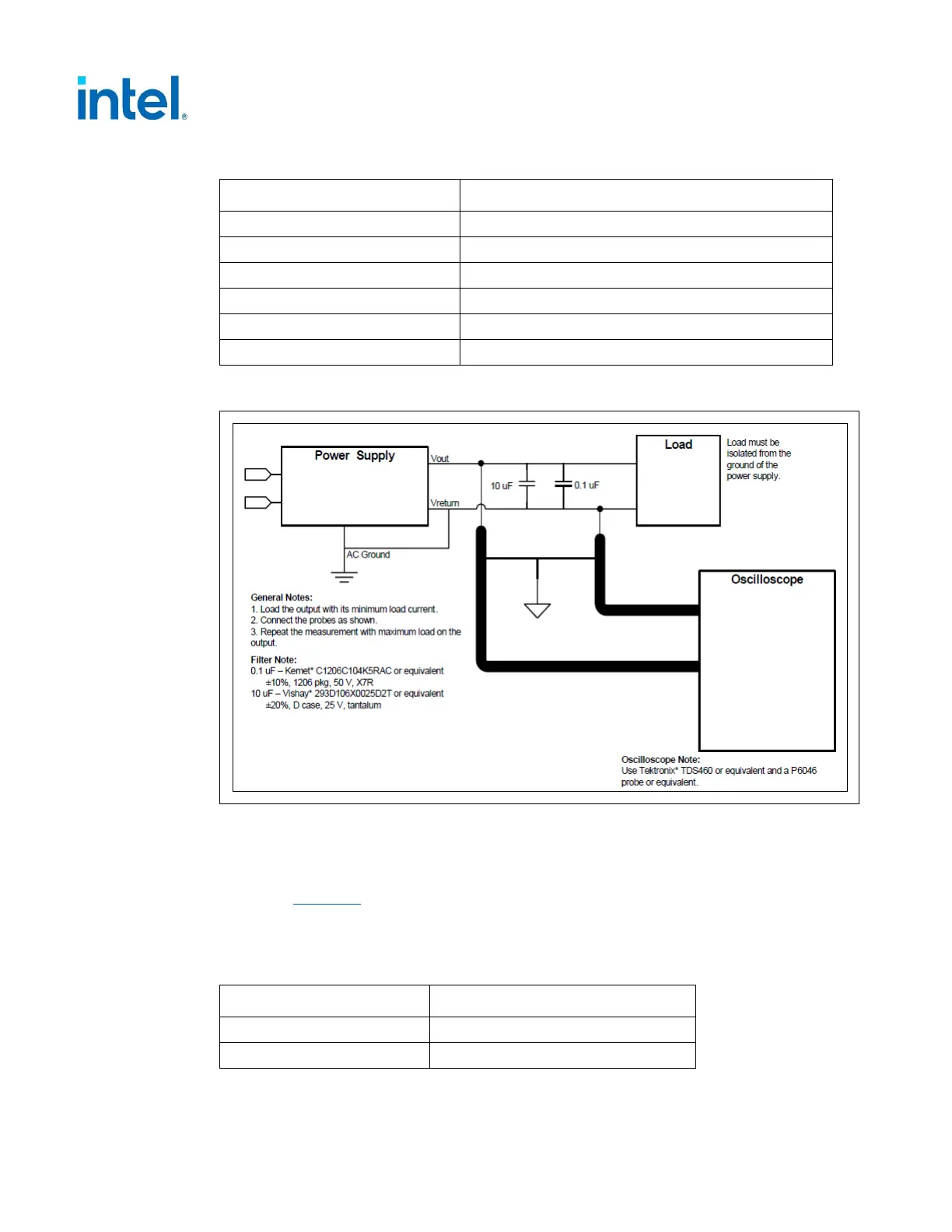

Figure 4-1: Differential Noise Test Setup
4.2.6 Capacitive Load – RECOMMENDED
The power supply should be able to power up and operate within the regulation limits
defined in Table 4-2
, with the following capacitances simultaneously present on the
DC outputs. These Capacitive Loads are to simulate what a motherboard / system
provides when connected to a power supply.
Table 4-7: Output Capacitive Loads
Output Capacitive Load (μF)
+12V1DC 3,300
+12V2DC 3,300
