Mechanical

54 336521

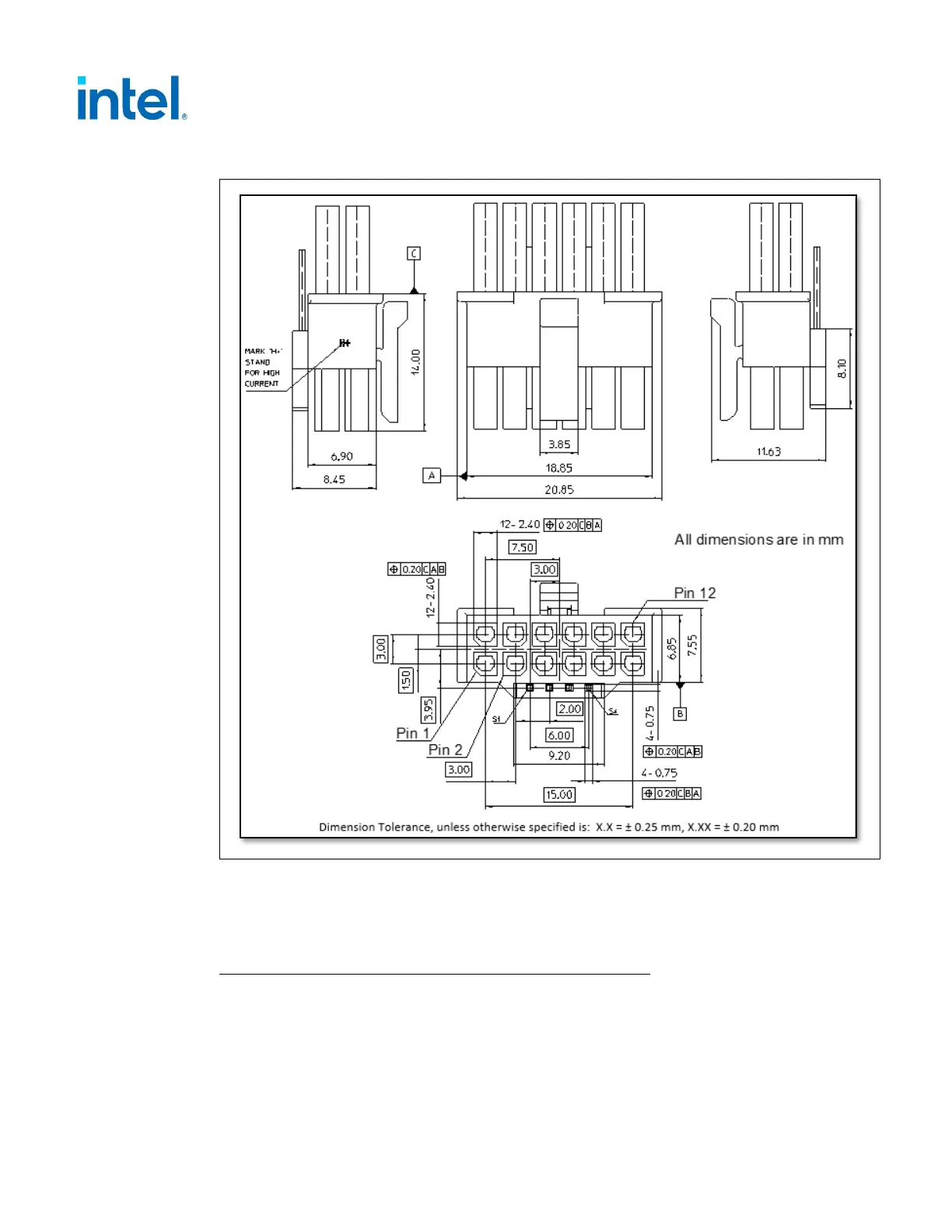

Figure 5-4: 12VHPWR Cable Assembly

The cable plug connector housing for the 12VHPWR connector has all dimensions

shown in mm. Slight changes to this connector that does not affect matting with its

associated plug may happen. Reference latest PCI-SIG documentation for latest

information about this connector.

12VHPWR Cable Plug Assembly Contact and Housing Details:

• Housing Material: Thermoplastic Glass Fiber Filled, UL94V-0

• Color: Black

• Pin Contact Material: Copper Alloy

• Power Pin Contact Plating: Tin plated on contact area
