SFX12V Specific

Guidelines 4.0

78 336521

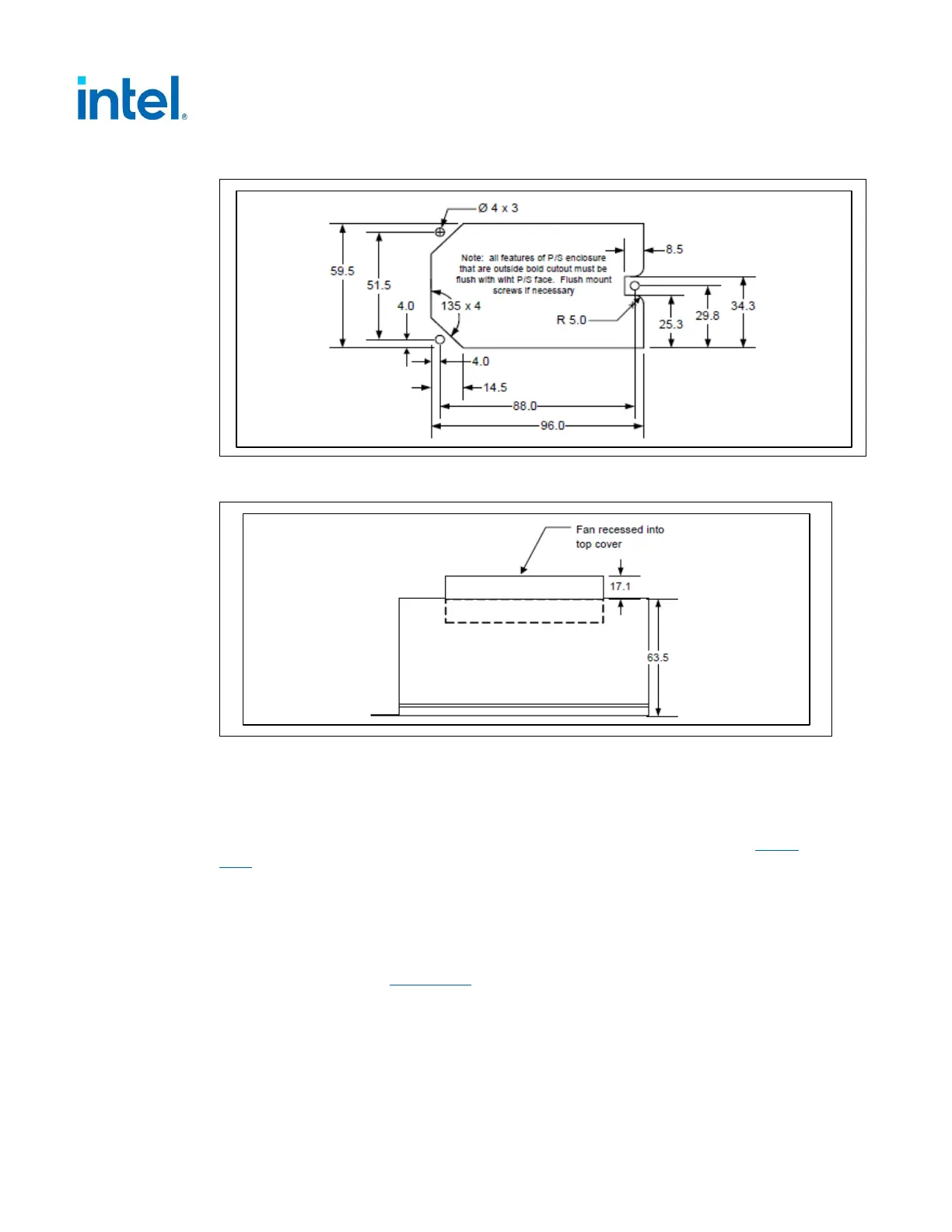

Figure 14-4: Chassis Cutout

Figure 14-5: Recessed Fan Mounting

14.5 Reduced Depth Top Mount Fan - Physical

Dimensions - REQUIRED

The power supply shall be enclosed and meet the physical outline shown in Figure

14-6.

14.6 Fan Requirements - REQUIRED

The fan will draw air from the computer system cavity pressurizing the power supply

enclosure. The power supply enclosure shall exhaust the air through a grill located on

the rear panel. Refer to Figure 14-7

. Moving the fan to the computer system cavity

helps to limit the acoustic noise of the unit.

The fan will be 80 mm.
