Thermal Specifications
6.1.2 Thermal Metrology
The minimum and maximum TTV case temperatures (T
CASE
) are specified in Table 6-1,
and Table 6-2 and are measured at the geometric top center of the thermal test vehicle
integrated heat spreader (IHS). Figure 6-2 illustrates the location where T
CASE
temperature measurements should be made. For detailed guidelines on temperature
measurement methodology and attaching the thermocouple, refer to the appropriate
processor Thermal and Mechanical Design Guidelines (see Section 1.2).
Notes:
1. Figure is not to scale and is for reference only.
2. B1: Max = 45.07 mm, Min = 44.93 mm.
3. B2: Max = 42.57 mm, Min = 42.43 mm.
4. C1: Max = 39.1 mm, Min = 38.9 mm.
5. C2: Max = 36.6 mm, Min = 36.4 mm.
6. C3: Max = 2.3 mm, Min = 2.2 mm
7. C4: Max = 2.3 mm, Min = 2.2 mm.
8. Refer to the appropriate Thermal and Mechanical Design Guide (see Section 1.2) for instructions on
thermocouple installation on the processor TTV package.

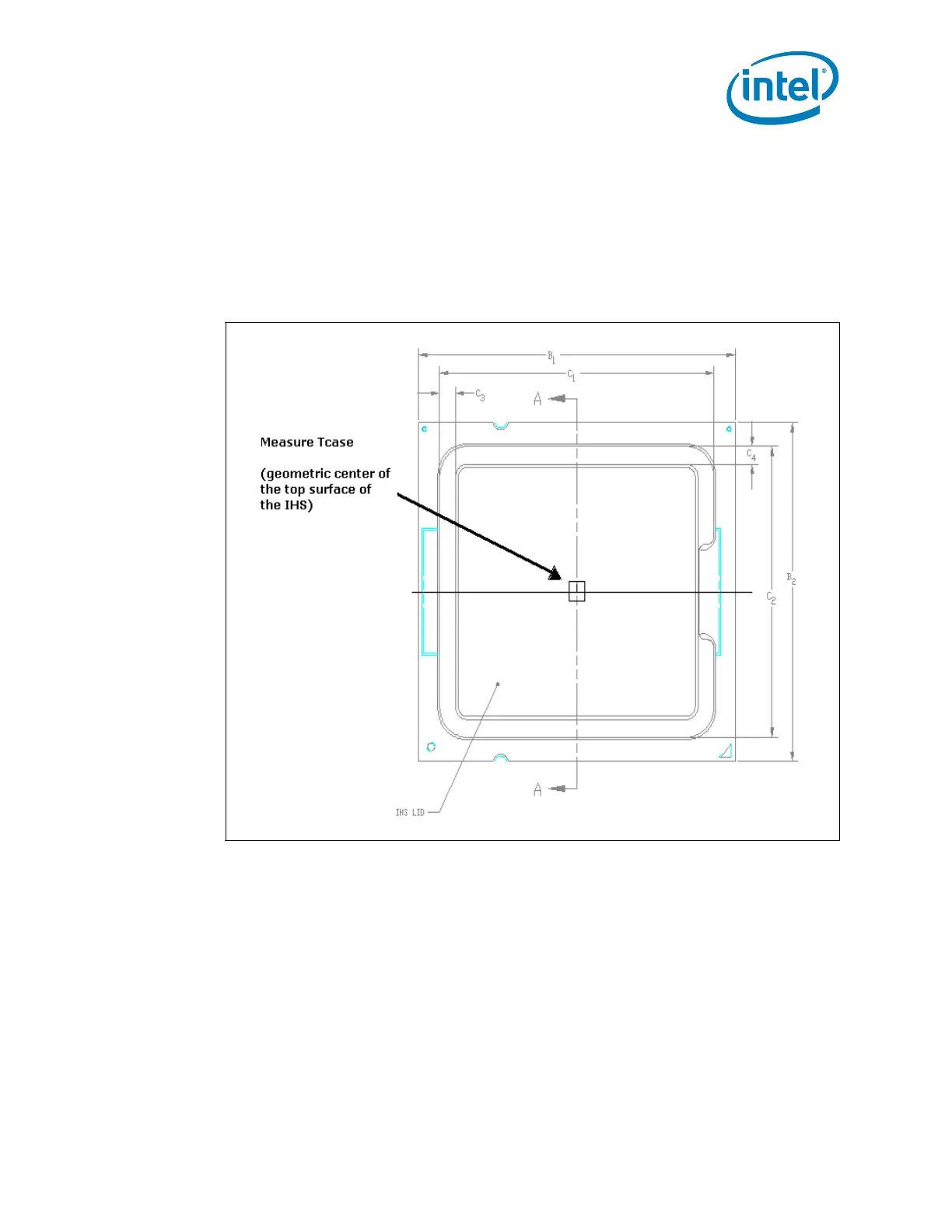

Figure 6-2. Thermal Test Vehicle (TTV) Case Temperature (T
CASE
) Measurement Location

Intel Core i7 Extreme Edition Specifications

General

Socket	LGA 1366
TDP	130W
Max Memory Size	24 GB
PCI Express Version	2.0
Virtualization Technology	Yes
Hyper-Threading Technology	Yes
Turbo Boost Technology	Yes
Memory Types	DDR3-1066
