Boxed Processor Specifications
96 Datasheet
8.2 Mechanical Specifications
8.2.1 Boxed Processor Cooling Solution Dimensions
This section documents the mechanical specifications of the boxed processor. The
boxed processor will be shipped with an unattached fan heatsink. Figure 8-1 shows a
mechanical representation of the boxed processor.
Clearance is required around the fan heatsink to ensure unimpeded airflow for proper
cooling. The physical space requirements and dimensions for the boxed processor with
assembled fan heatsink are shown in Figure 8-2 (Side View), and Figure 8-3 (Top
View). The airspace requirements for the boxed processor fan heatsink must also be
incorporated into new baseboard and system designs. Airspace requirements are
shown in Figure 8-7 and Figure 8-8. Note that some figures have centerlines shown
(marked with alphabetic designations) to clarify relative dimensioning.

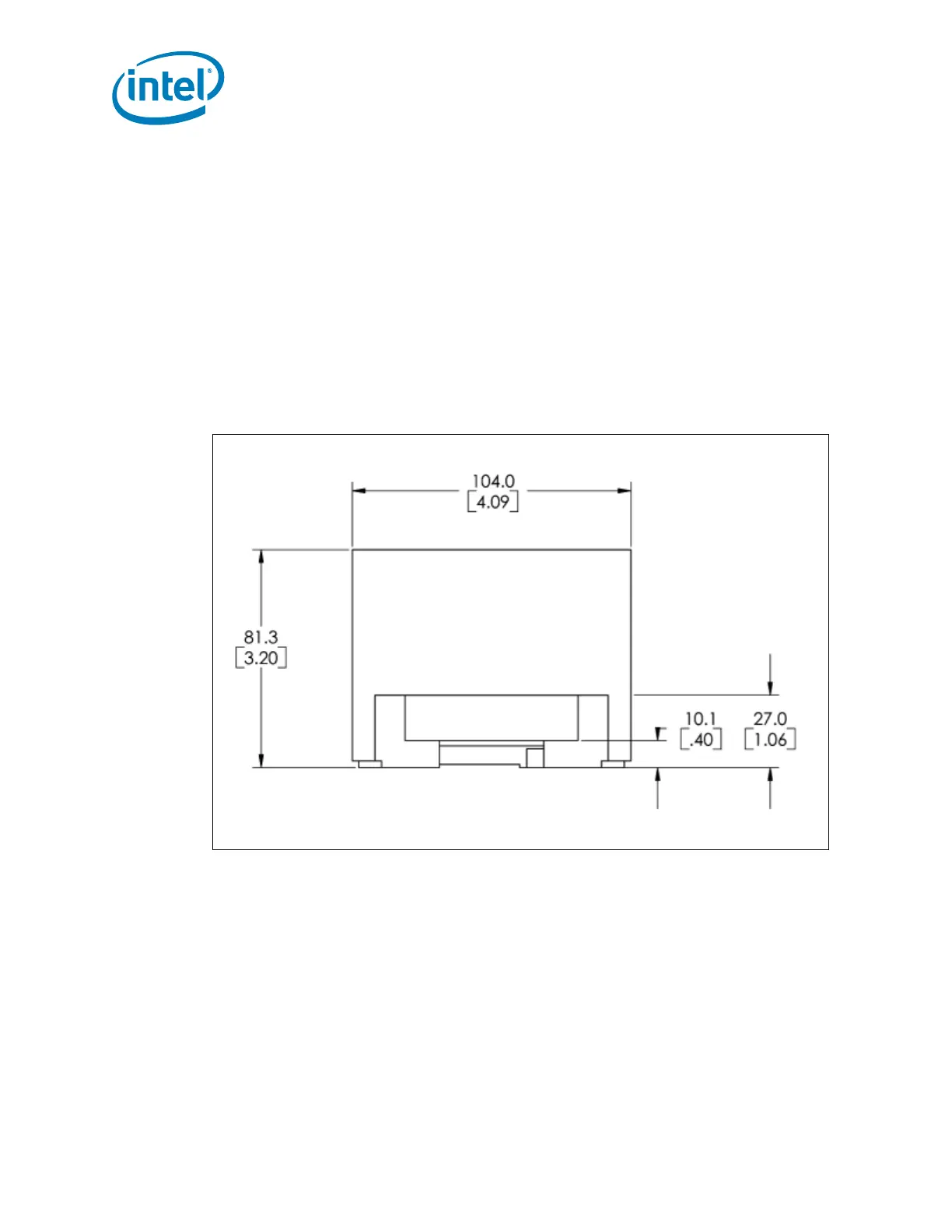

Figure 8-2. Space Requirements for the Boxed Processor (side view)
