Intel D2500CC Product Guide

Desktop Board Features
15

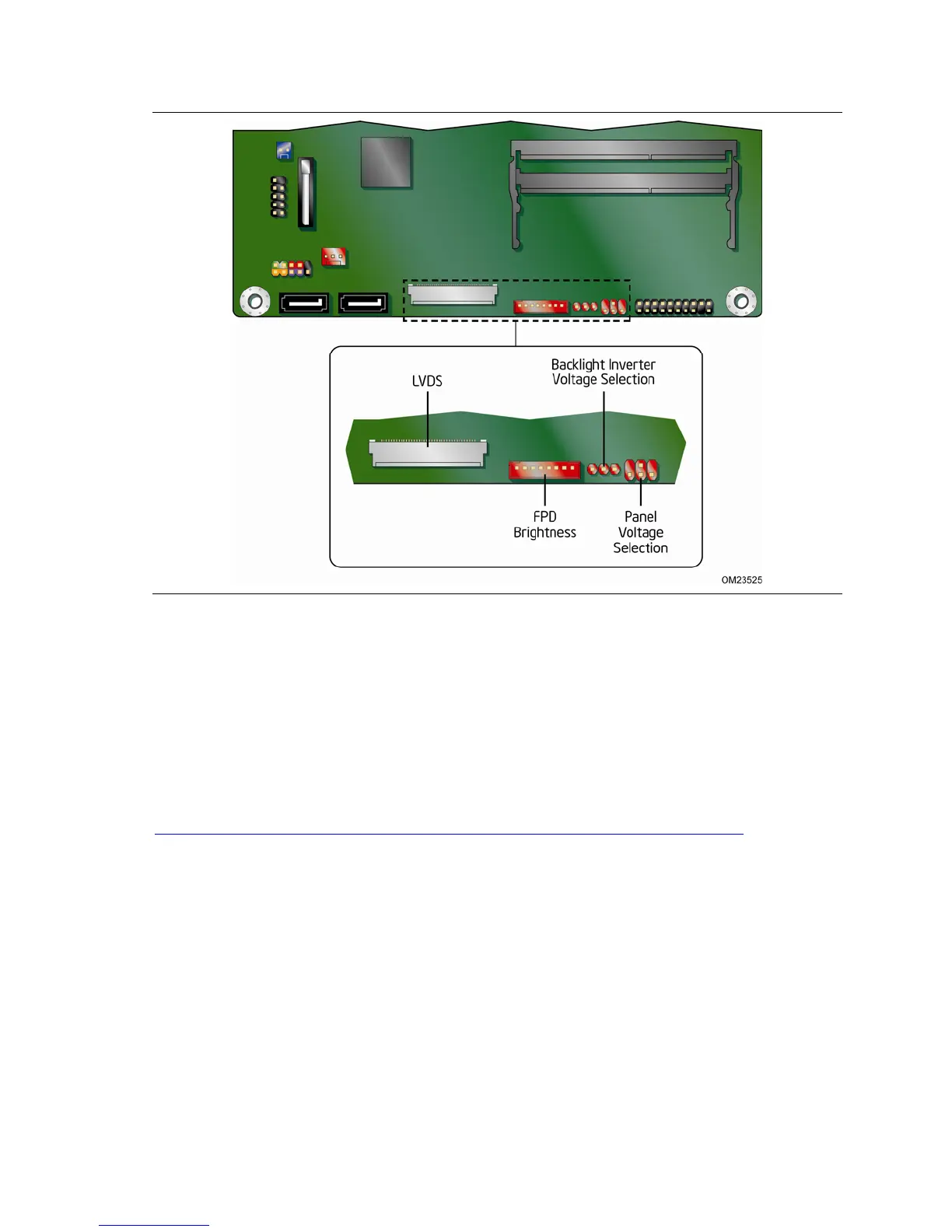

Figure 2. Flat Panel Display Headers and Connectors
External Graphics
Intel Desktop Board D2500CC supports external graphics cards via the PCI bus
connector (see Figure 1, X).
Intel
®
NM10 Express Chipset
The Intel NM10 Express Chipset is a centralized controller for the board’s I/O paths.
For more information about the Intel NM10 Express Chipset, go to
http://www.intel.com/products/chipset
s/index.htm?iid=prod+prod_chipset.
Onboard Audio Subsystem
The onboard audio subsystem supports both Intel HD Audio and AC ’97 Audio. The
subsystem is based on the following components:
• Intel NM10 Express Chipset
• RealTek ALC662 audio codec
The subsystem includes the following headers and connectors:
• Three back panel analog audio jacks
• Onboard S/PDIF digital audio output header
