Intel D2500CC - Connecting to the Internal Headers

Installing and Replacing Desktop Board Components
33
Connecting to the Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page 23. Figure 12 shows the location of the board’s i
nternal headers.

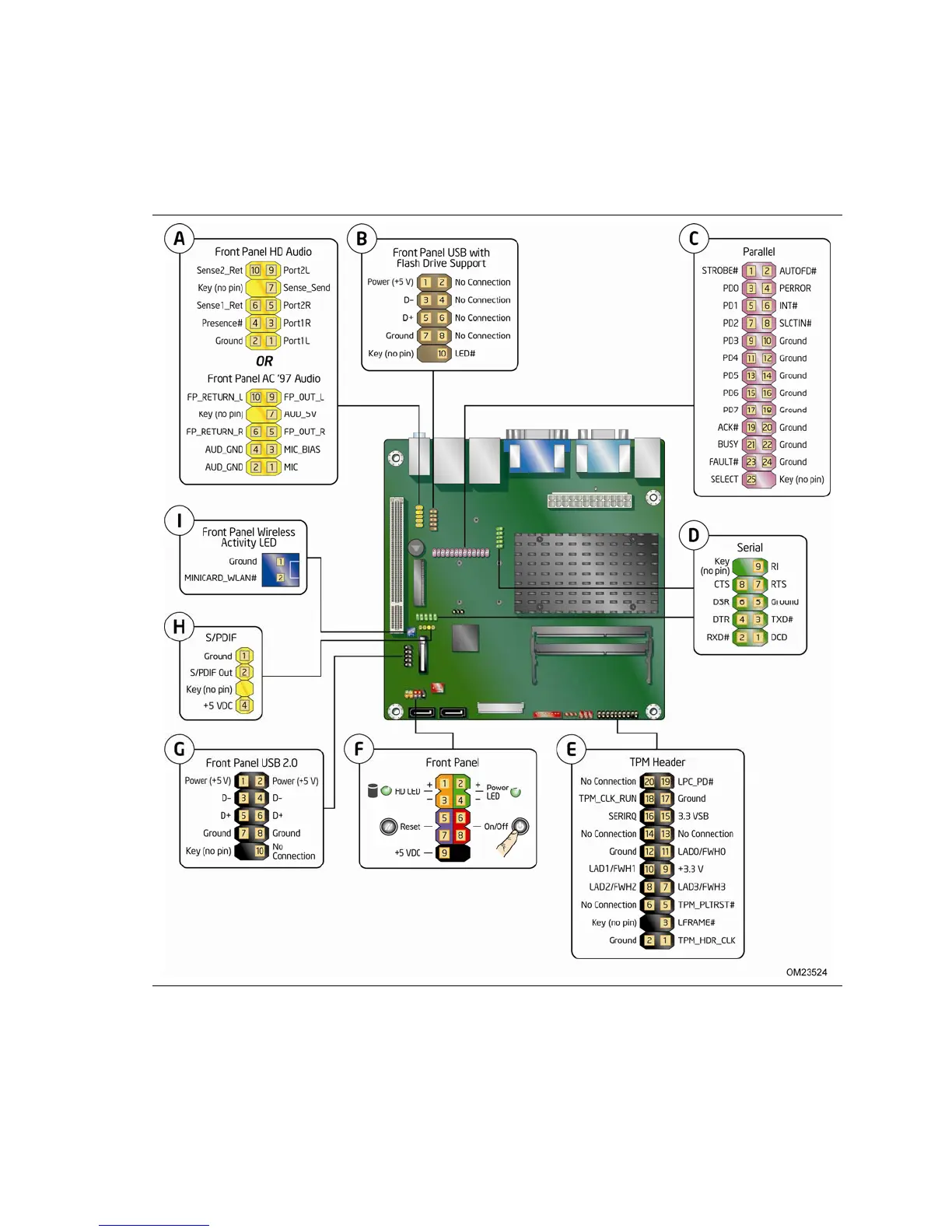

Figure 12. Internal Headers
