Installing and Replacing Desktop Board Components
29
Connecting SATA Drives
The board has two SATA connectors each supporting one SATA drive. The included
SATA cables support the Serial ATA protocol. For correct cable and drive function:
1. Observe the precautions in "Before You Begin" on page 23.
2. Attach
one end of the cable to the connector on the board (Figure 9, A) and
connect the other end to the drive
(Figure 9, B).

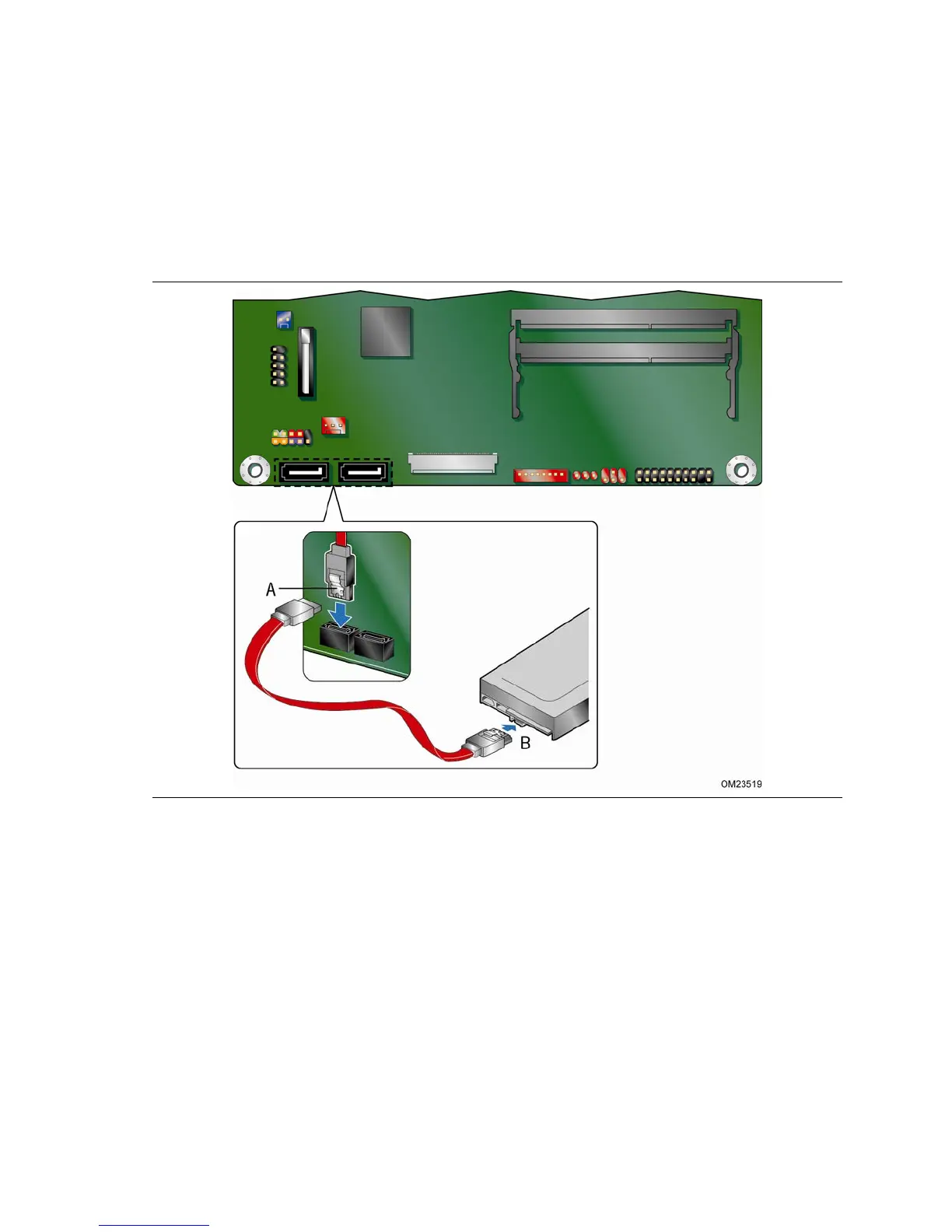

Figure 9. Connecting the Serial ATA Cable
