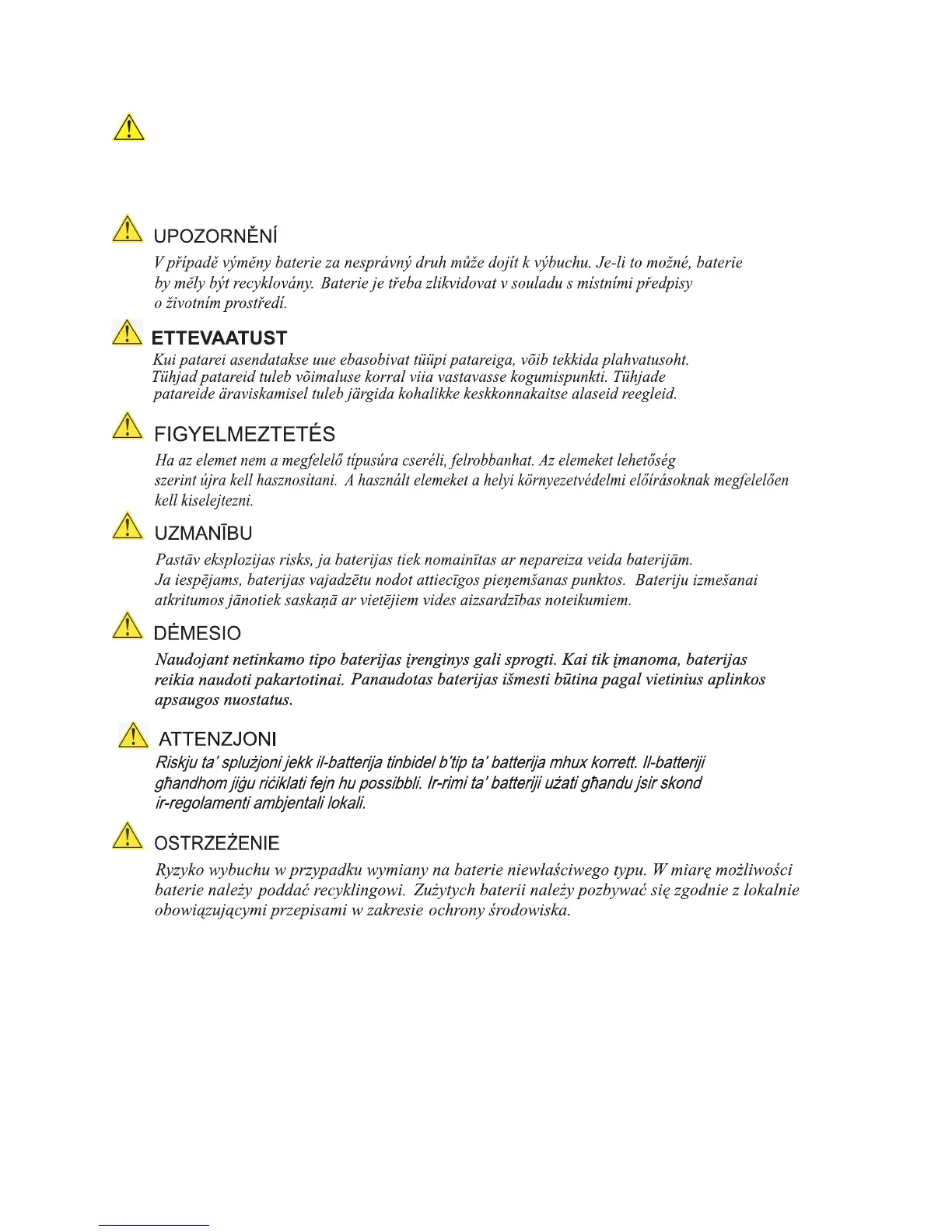

Installing and Replacing Desktop Board Components
45
O
СТОРОГА
Використовуйте
батареї
правиль
ного
типу
,
інакше
існуватиме
ризик
вибуху
.
Якщо
можливо
,
використані
батареї
слід
утилізувати
.
Утил
ізація
вико
рист
ани
х
батарей
має
бути
вико
нана
згідно
місцевих
норм
,
що
регулюють
охорону
довкілля
.
44
46
Table of Contents
Default Chapter
2
Revision History
2
Intended Audience
3
Table of Contents
5
Desktop Board Features
9
Operating System Support
10
Desktop Board Components
11
Figures
11
Intel Desktop Board D2500CC Components
11
Tables
12
Intel Desktop Board D2500CC Components
12
Processor
13
System Memory
13
Graphics Support
14
Integrated Graphics Subsystem
14
External Graphics
15
Intel NM10 Express Chipset
15
Onboard Audio Subsystem
15
Flat Panel Display Headers and Connectors
15
Back Panel Audio Connectors
16
Audio Jack Support
16
Legacy Input/Output (I/O) Controller
17
Dual LAN Subsystem
17
LAN Status Leds
17
USB 2.0 Support
18
SATA Interface
18
Expandability
18
LAN Status Leds
18
Bios
19
PCI/PCI Express Auto Configuration
19
Security Passwords
19
Hardware Management Features
19
Power Management Features
20
Acpi
20
Fan Header
20
Hardware Support
20
V Standby Power Indicator
20
Location of the Standby Power Indicator
21
Battery
22
Real-Time Clock
22
Lan Wake Capabilities
22
Wake from Serial Port
22
Wake from Usb
22
Installing and Replacing Desktop Board Components
23
Before You Begin
23
Installation Precautions
25
Prevent Power Supply Overload
25
Observe Safety and Regulatory Requirements
25
Installing the I/O Shield
26
Installing and Removing the Desktop Board
27
Intel Desktop Board D2500CC Mounting Screw Holes
27
Installing and Removing Memory
28
Connecting SATA Drives
29
Connecting the Serial ATA Cable
29
Installing a PCI Express Mini Card
30
Installing a PCI Express Mini Card
31
Installing an Intel Z-U130 USB Solid-State Drive or Compatible Device
32
Connecting to the Internal Headers
33
Front Panel Audio Header
34
Front Panel USB 2.0 Headers
34
Front Panel Audio Header for Intel HD Audio
34
Front Panel Audio Header for AC '97 Audio
34
Front Panel USB Header
34
Parallel Port Header
35
Serial Port Headers
35
Front Panel USB Header with Intel Z-U130 USB Solid-State Drive or Compatible Device Support
35
Serial Port Header
35
TPM Header
36
Front Panel Header
36
S/PDIF Header
37
Front Panel Wireless Activity LED Header
37
Connecting a System Fan
38
Location of the System Fan Header
38
Connecting to a Power Supply
39
Setting the BIOS Configuration Jumper
40
Clearing Passwords
41
Jumper Settings for the BIOS Setup Program Modes
41
Replacing the Battery
42
Removing the Battery
46
Updating the BIOS
47
Updating the BIOS with the Intel Express BIOS Update Utility
47
Updating the BIOS Using the F7 Function Key
48
Updating the BIOS with the Iflash Memory Update Utility
48
Obtaining the BIOS Update File
48
Using the Iflash Memory Update Utility
49
Recovering the BIOS
49
A Board Status and Error Messages
51
BIOS Beep Codes
51
BIOS Front-Panel Power LED Blink Codes
52
POST Error Messages
52
B Regulatory Compliance
53
Safety Standards
53
Battery Caution
53
European Union Declaration of Conformity Statement
54
Product Ecology Statements
55
Recycling Considerations
55
China Rohs
58
Intel Desktop Board D2500CC China Rohs Material Self Declaration Table
58
EMC Regulations
59
FCC Declaration of Conformity
59
Canadian Department of Communications Compliance Statement
60
Japan VCCI Statement
60
Ensure Electromagnetic Compatibility (EMC) Compliance
61
Korea Class B Statement
61
Product Certifications
62
Board-Level Certifications
62
Regulatory Compliance Marks
62
Chassis- and Component-Level Certifications
63
ENERGY STAR*, E-Standby, and Erp Compliance
64
ENERGY STAR Requirements
64
