Intel
Desktop Board
D
2500CC
Technical Product Specifica
tion
38
The amo
unt of installed memor
y that can be
used wi
ll
vary based o
n add
-
i
n cards a
nd
BIO
S settings.
Figu
re
8

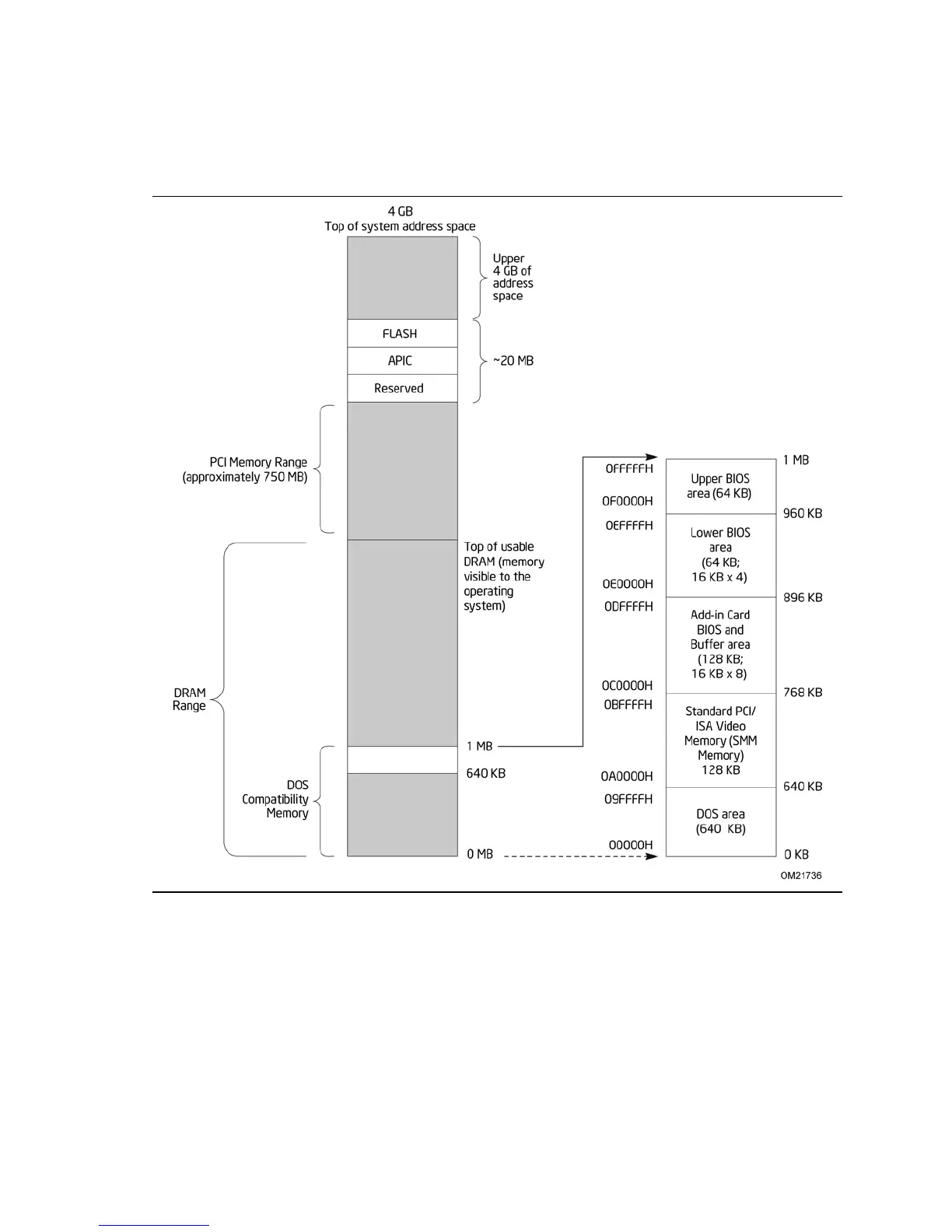

shows a schem
ati
c of the system mem
ory map. Al
l
in
stal
led
system m
emory can
be used
when
there i
s no ov
erla
p of system
addres
ses.
Figure 8
. Detai
led System Memory Address Map
37
39
Table of Contents
Default Chapter
2
Revision History
2
Intended Audience
5
What this Document Contains
5
Table of Contents
7
Tables
11
Product Description
11
Overview
11
Feature Summary
11
Board Layout
13
Figures
13
Major Board Components
13
Board Components Shown in Figure 1
14
Block Diagram
15
Online Support
16
Processor
16
Intel ® D2500 Graphics Subsystem
17
System Memory
18
Supported Memory Configurations
18
Memory Channel and SO-DIMM Configuration
19
Intel ® NM10 Express Chipset
20
Configuration Modes
21
Usb
22
SATA Support
23
Real-Time Clock Subsystem
23
Legacy I/O Controller
24
Serial Ports
24
Parallel Port
24
Keyboard and Mouse Interfaces
24
LAN Subsystem
25
Intel ® 82574L Gigabit Ethernet Controllers
25
LAN Subsystem Software and Drivers
25
RJ-45 LAN Connector with Integrated Leds
26
LAN Connector LED Locations
26
LAN Connector LED States
26
Audio Subsystem
27
Audio Jack Support
27
Audio Subsystem Software
28
Audio Connectors and Headers
28
Back Panel Audio Connectors
28
1.10 Hardware Management Subsystem
29
Hardware Monitoring
29
Thermal Monitoring
30
Thermal Sensors and Fan Header
30
1.11 Power Management
31
Acpi
31
Effects of Pressing the Power Switch
31
Power States and Targeted System Power
32
Wake-Up Devices and Events
33
Hardware Support
34
Instantly Available Pc Technology
35
Wake from Usb
35
Wake from Serial Port
35
Location of the Standby Power Indicator LED
36
Technical Reference
37
Memory Map
37
Addressable Memory
37
Detailed System Memory Address Map
38
System Memory Map
39
Connectors and Headers
40
Back Panel
41
Back Panel Connectors
41
I/O Shield Reference Diagram
42
Component-Side Connectors and Headers
43
Component-Side Connectors and Headers Shown in Figure 11
44
TPM Header
45
Serial Port Headers
45
LVDS Data Connector
46
Backlight Inverter Voltage Selection Jumper
46
FPD Brightness Connector
47
Flat Panel Voltage Selection Jumper
47
System Fan Header
47
SATA Connectors
47
Front Panel Wireless Activity LED Header
48
Front Panel Audio Header for Intel HD Audio
48
Front Panel Audio Header for AC '97 Audio
48
Front Panel USB 2.0 Headers
48
Front Panel USB Header with Intel Z-U130 USB Solid-State Drive or
48
Compatible Device Support
48
Parallel Port Header
49
Internal S/PDIF Header
49
Add-In Card Connectors
50
Power Connector
51
Connection Diagram for Front Panel Header
52
Front Panel Header
52
States for a One-Color Power LED
53
Connection Diagram for Front Panel USB 2.0 Header
54
Connection Diagram for Front Panel USB 2.0 Header with Intel Z-USB
54
BIOS Configuration Jumper Block
55
Location of the BIOS Configuration Jumper Block
55
BIOS Configuration Jumper Settings
56
Mechanical Considerations
57
Form Factor
57
Board Dimensions
57
Electrical Considerations
58
Fan Header Current Capability
58
Add-In Board Considerations
58
Thermal Considerations
58
Localized High Temperature Zones
59
Passive Heatsink Design in a Passive System Environment
60
Thermal Considerations for Components
60
Chassis Design Guideline
61
Fan Location Guide for Chassis Selection (Chassis Orientation Is Not Restricted)
62
Power Consumption
63
Minimum Load Configuration
63
Maximum Load Configuration
63
Minimum Load Configuration Current and Power Results
63
Reliability
64
Environmental
64
Maximum Load Configuration Current and Power Results
64
Intel Desktop Board D2500CC Environmental Specifications
64
Overview of BIOS Features
65
Introduction
65
BIOS Flash Memory Organization
66
Resource Configuration
66
PCI* Autoconfiguration
66
BIOS Setup Program Menu Bar
66
BIOS Setup Program Function Keys
66
System Management BIOS (SMBIOS)
67
Legacy USB Support
68
BIOS Updates
69
BIOS Recovery
69
Acceptable Drives/Media Types for BIOS Recovery
69
Custom Splash Screen
70
Boot Options
70
Optical Drive Boot
70
Network Boot
70
Booting Without Attached Devices
71
Changing the Default Boot Device During POST
71
Adjusting Boot Speed
71
Peripheral Selection and Configuration
71
Boot Device Menu Options
71
BIOS Boot Optimizations
72
BIOS Security Features
73
Supervisor and User Password Functions
73
Board Status and Error Messages
75
BIOS Beep Codes
75
Front-Panel Power LED Blink Codes
76
BIOS Error Messages
76
Port 80H POST Codes
77
Port 80H POST Code Ranges
77
Port 80H POST Codes
78
Typical Port 80H POST Sequence
81
Regulatory Compliance and Battery Disposal Information
83
Regulatory Compliance
83
Safety Standards
83
European Union Declaration of Conformity Statement
84
Product Ecology Statements
85
EMC Regulations
87
ENERGY STAR* 5.0, E-Standby, and Erp Compliance
90
ENERGY STAR Requirements
90
Regulatory Compliance Marks (Board Level)
91
Regulatory Compliance Marks
91
Battery Disposal Information
92
