Intel D2500CC User Manual

Technical Reference
59
CAUTION
Ensure that proper airflow is maintained in the processor voltage regulator circuit.
Failure to do so may result in damage to the voltage regulator circuit. The processor
voltage regulator area (shown in Figure 17) can reach a temperature of up to 85
o
C in
an open chassis.

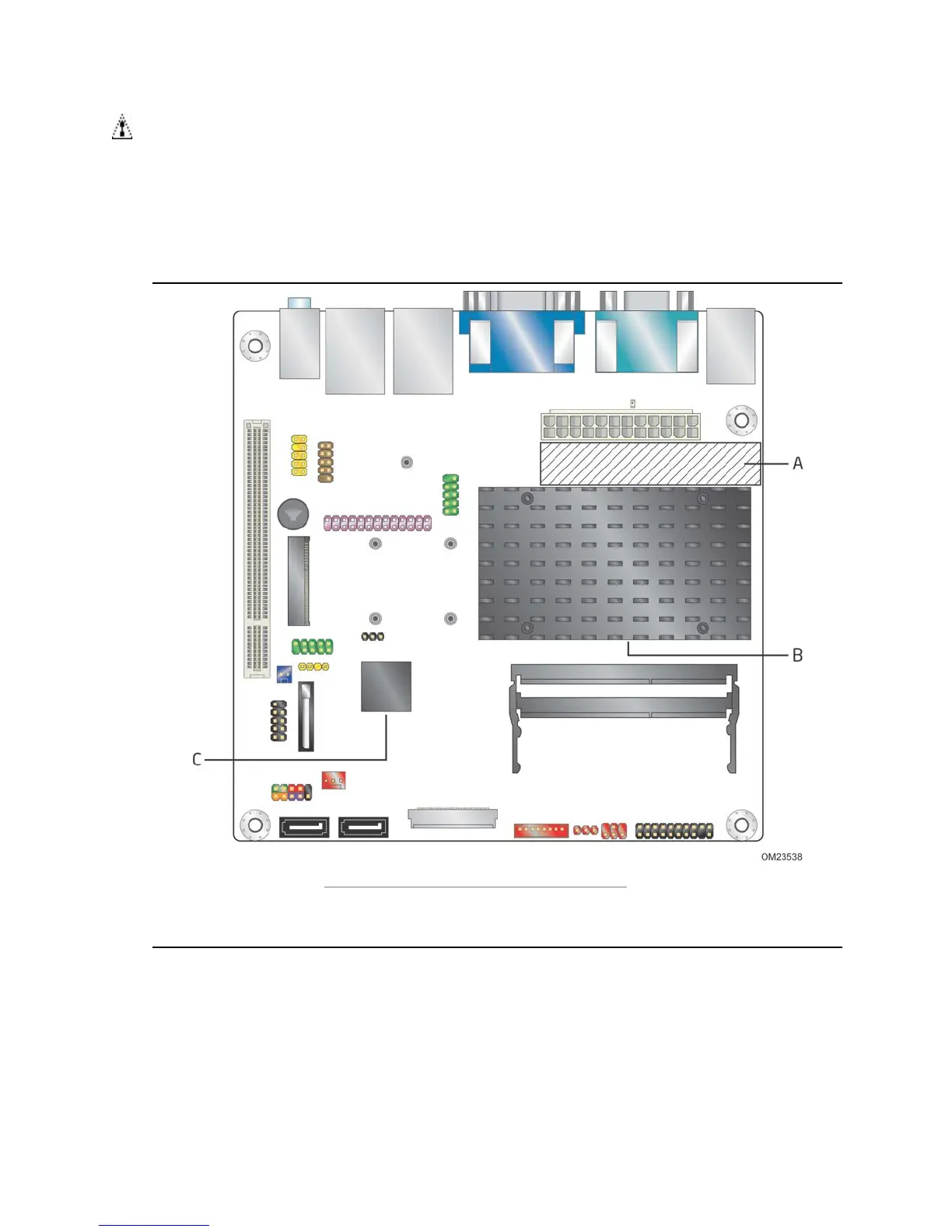

Figure 17 shows the locations of the localized high temperature zones.
Item
Description
A Processor voltage regulator area
B Intel Atom processor
C
Intel NM10 Express Chipset
Figure 17. Localized High Temperature Zones
Table 32 provides maximum case temperatures for the board components that are
sensitive to thermal changes. The operating temperature, current load, or operating
frequency could affect case temperatures. Maximum case temperatures are important
when considering proper airflow to cool the board.
