Intel D2500CC - Connection Diagram for Front Panel Header; Front Panel Header

Intel Desktop Board D2500CC Technical Product Specification
52
2.2.2.4 Front Panel Header
This section describes the functions of the front panel header. Table 28 lists the signal
names of the front panel header. Figure 12 is a connection diagram for the front panel
header.
Table 28. Front Panel Header
Pin Signal
In/
Out Description Pin Signal
In/
Out Description
Hard Drive Activity LED Power LED
1 HD_PWR Out Hard disk LED
pull-up to +5 V
2 HDR_BLNK_GRN Out Front panel green
LED
3 HDA# Out Hard disk active
LED
4 HDR_BLNK_YEL Out Front panel yellow
LED
Reset Switch On/Off Switch
5 Ground Ground 6 FPBUT_IN In Power switch
7 FP_RESET# In Reset switch 8 Ground Ground
Power Not Connected
9 +5 V Power 10 N/C Not connected

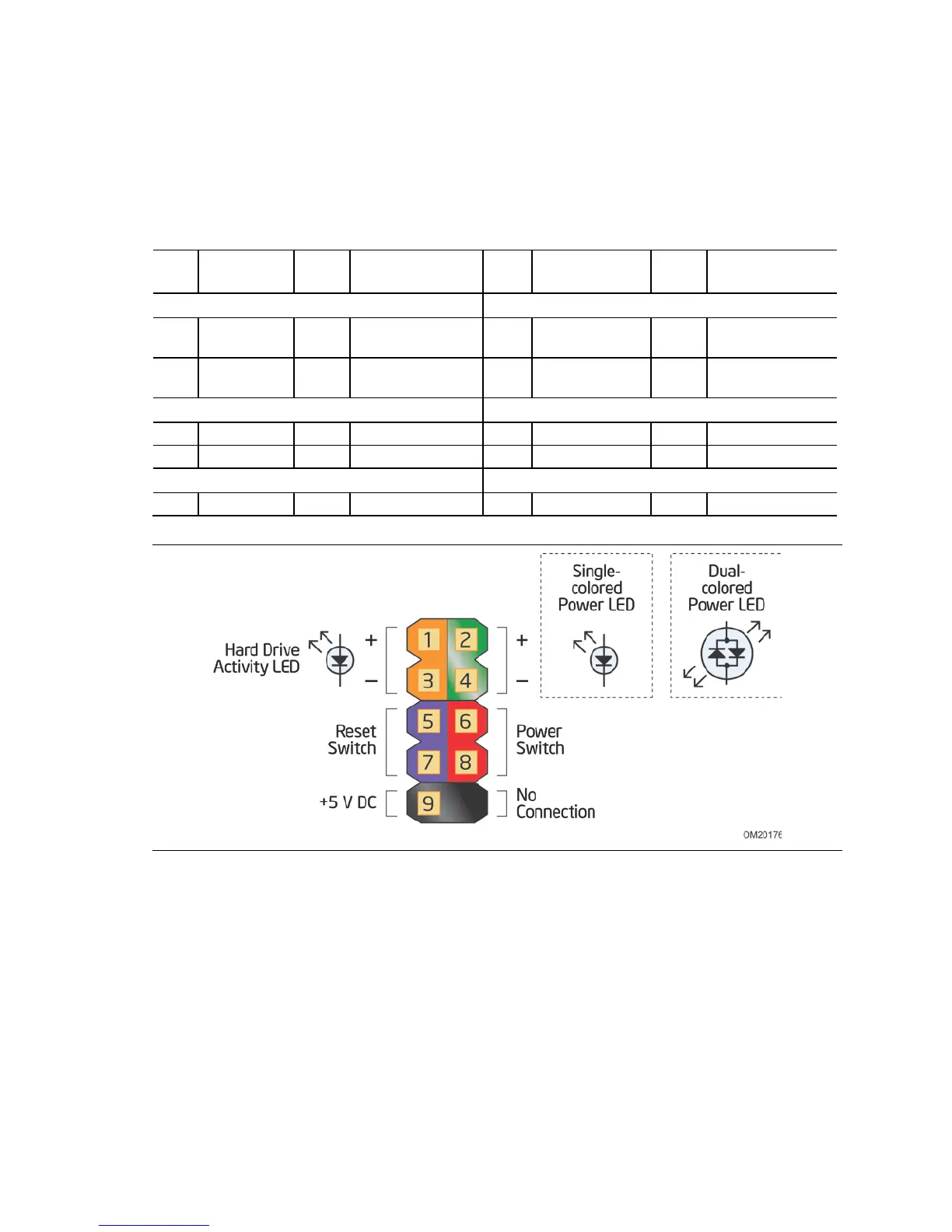

Figure 12. Connection Diagram for Front Panel Header
