Intel Desktop Board D2500CC Technical Product Specification
46
Table 14. LVDS Data Connector
Pin Signal Name Pin Signal Name
1 EVEN_Lane3_P 21 N/C
2 EVEN_Lane3_N 22 EDID_3.3 V
3 EVEN_Lane2_P 23 LCD_GND
4 EVEN_Lane2_N 24 LCD_GND
5 EVEN_Lane1_P 25 LCD_GND
6 EVEN_Lane1_N 26 EVEN_CLK_P
7 EVEN_Lane0_P 27 EVEN_CLK_N
8 EVEN_Lane0_N 28 BKLT_GND
9 ODD_Lane3_P 29 BKLT_GND
10 ODD_Lane3_N 30 BKLT_GND
11 ODD_Lane2_P 31 EDID_CLK
12 ODD_Lane2_N 32 BKLT_ENABLE
13 ODD_Lane1_P 33 BKLT_PWM_DIM
14 ODD_Lane1_N 34 ODD_CLK_P
15 ODD_Lane0_P 35 ODD_CLK_N
16 ODD_Lane0_N 36 BKLT_PWR (12 V/19 V)
17 EDID_GND 37 BKLT_PWR (12 V/19 V)
18 LCD_VCC (3.3 V/5 V/12 V) 38 BKLT_PWR (12 V/19 V)
19 LCD_VCC (3.3 V/5 V/12 V) 39 N/C
20 LCD_VCC (3.3 V/5 V/12 V) 40 EDID_DATA

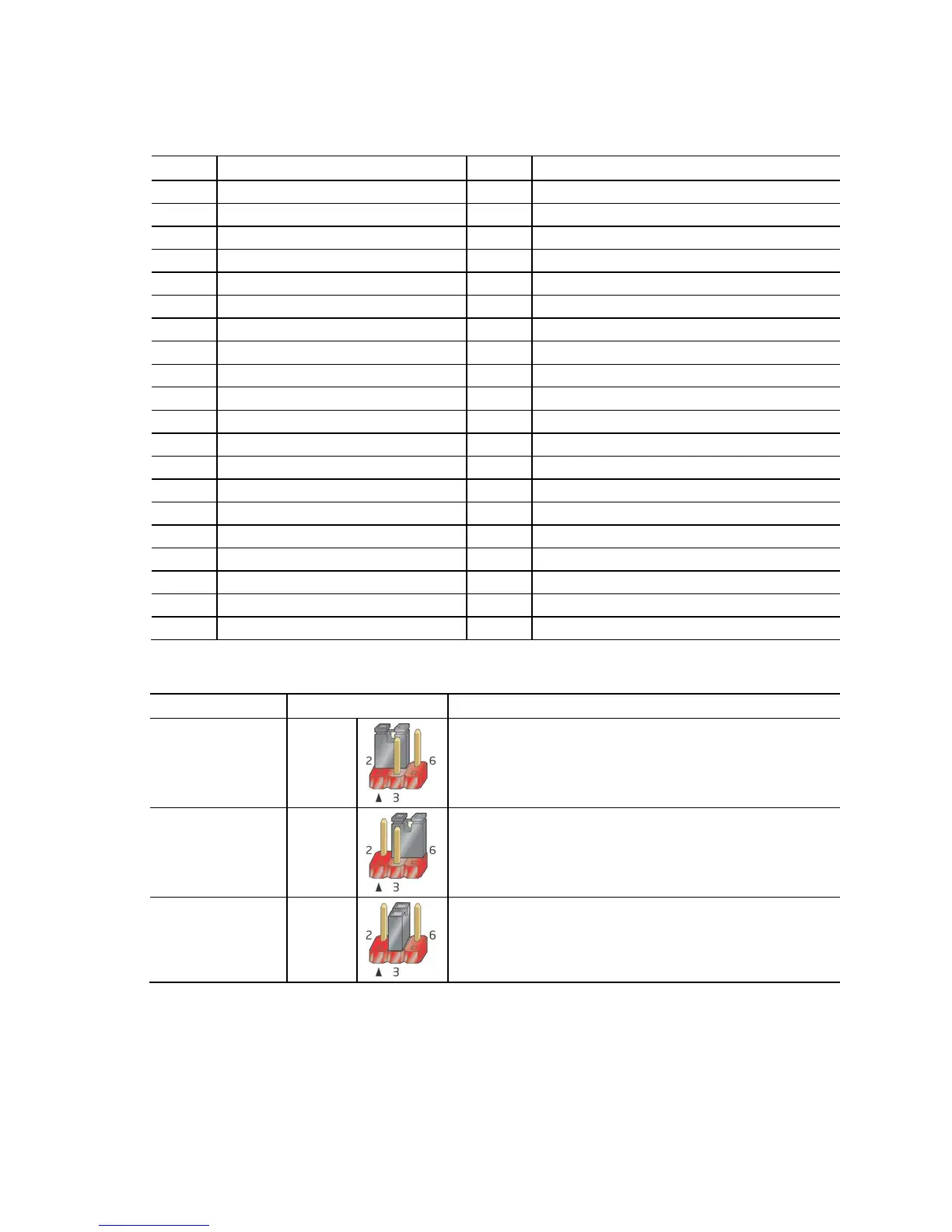

Table 15. Backlight Inverter Voltage Selection Jumper
Voltage Jumper Setting Configuration
3.3 V 2 and 4
Jumper position for 3.3 V (default)
5 V 6 and 4
Jumper position for 5 V
12 V 3 and 4
Jumper position for 12 V
