Intel D2500CC - FPD Brightness Connector; Flat Panel Voltage Selection Jumper; System Fan Header; SATA Connectors

Technical Reference
47

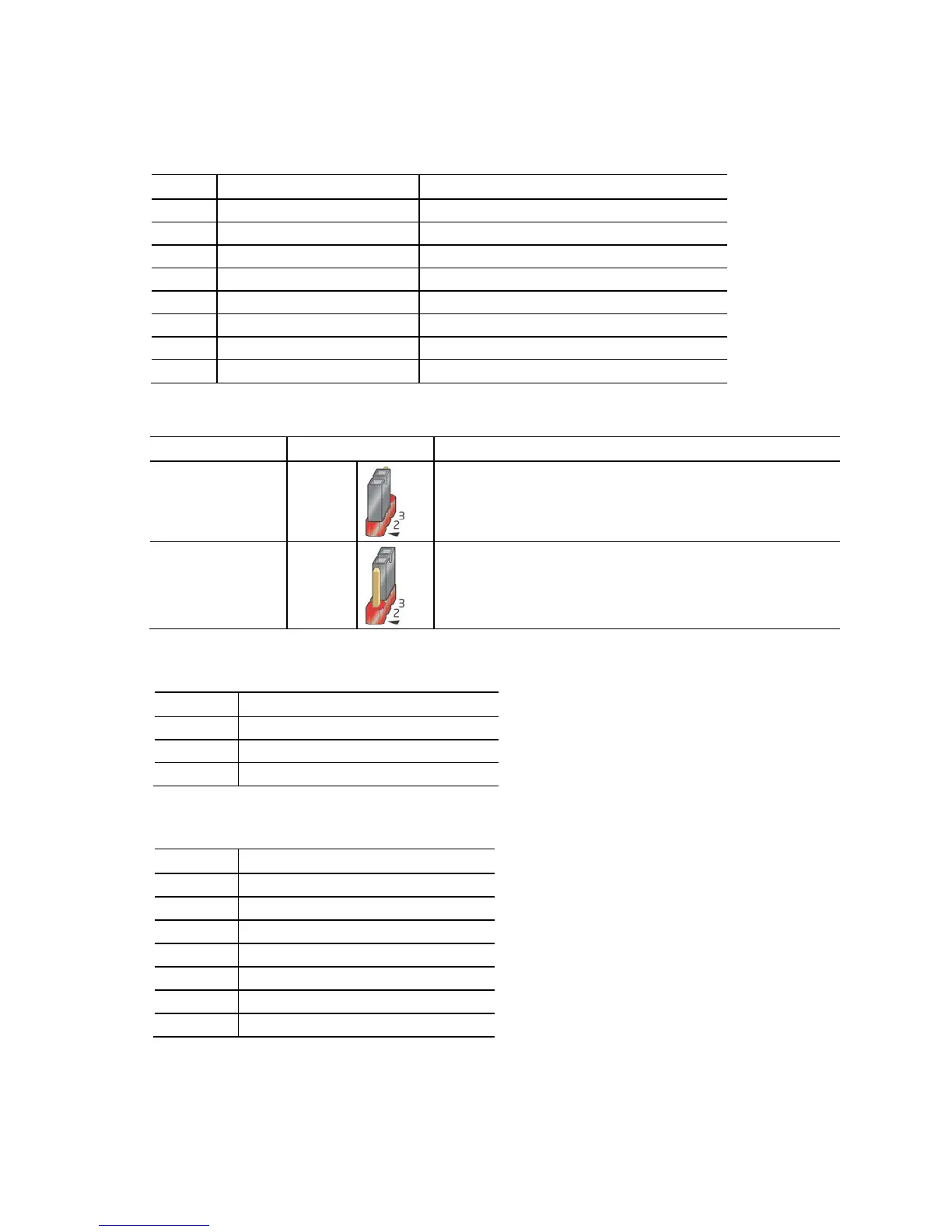

Table 16. FPD Brightness Connector
Pin Signal Name Description
1 BKLT_EN Backlight enable
2 BKLT_PWM Backlight control
3 BKLT_PWR (5 V/12 V) Backlight inverter power
4 BKLT_PWR (5 V/12 V) Backlight inverter power
5 BKLT_GND/Brightness_GND Ground (shared)
6 BKLT_GND/Brightness_GND Ground (shared)
7 Brightness_Up Panel brightness increase
8 Brightness_Down Panel brightness decrease
Table 17. Flat Panel Voltage Selection Jumper
Voltage Jumper Setting Configuration
5 V 1 and 2
Jumper position for 5 V (default)
12 V 3 and 2
Jumper position for 12 V
Table 18. System Fan Header
Pin Signal Name
1 Ground
2 +12 V (PWM controlled pulses)
3 Tach
Table 19. SATA Connectors
Pin Signal Name
1 Ground
2 TXP
3 TXN
4 Ground
5 RXN
6 RXP
7 Ground
