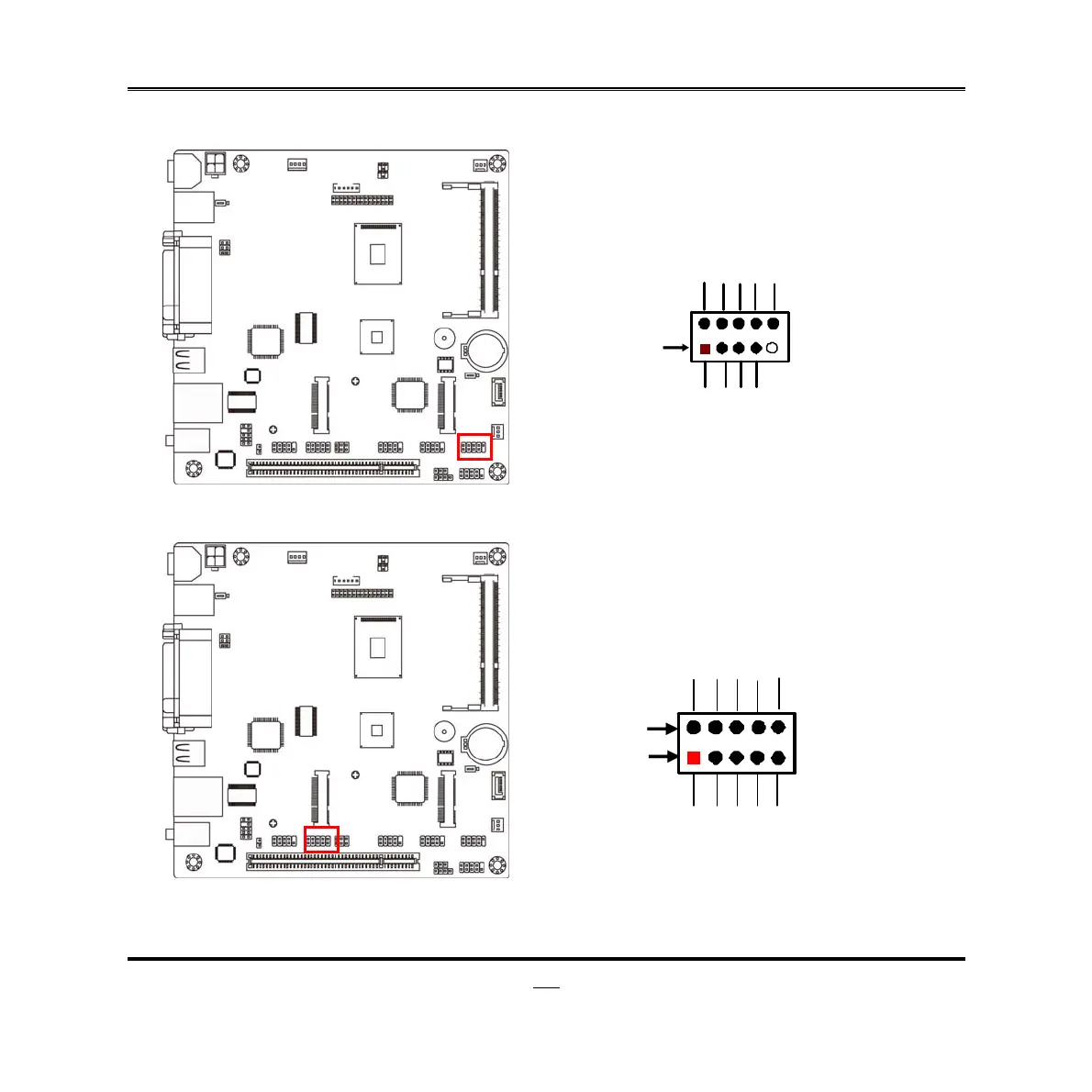

(4) USB2 (9-pin): USB 2.0 Port Header
Pin 1
V
CC
-DATA
GND
+DATA
V
CC
NC
-DATA
GND
+DATA
(5) GPIO_CON (10-pin): GPIO Header
GPIO
_
30
GND
GPIO_32 GPIO_34
GPIO_36
GPIO
_
31
GPIO_33
Pin2
Pin1
VCC
GPIO_35 GPIO
_
37

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
