Intel D525 User Manual

1
7
Pin NO. Pin Define Pin NO. Pin Define
Pin 1 LVDS_VCC Pin 2 LVDS_VCC
Pin 3 LVDS_VCC Pin 4 GND
Pin 5 GND Pin 6 GND
Pin 7 LVDSA_DATAN0 Pin 8 LVDSA_DATAP0
Pin 9 LVDSA_DATAN1 Pin 10 LVDSA_DATAP1
Pin 11 LVDSA_DATAN2 Pin 12 LVDSA_DATAP2
Pin 13 GND Pin 14 GND
Pin 15 LVDSA_CLKN Pin 16 LVDSA_CLKP
Pin 17 NC Pin 18 NC
Pin 19 NC Pin 20 NC
Pin 21 NC Pin 22 NC
Pin 23 NC Pin 24 NC
Pin 25 GND Pin 26 GND
Pin 27 NC Pin 28 NC
Pin 29 NC Pin 30 NC

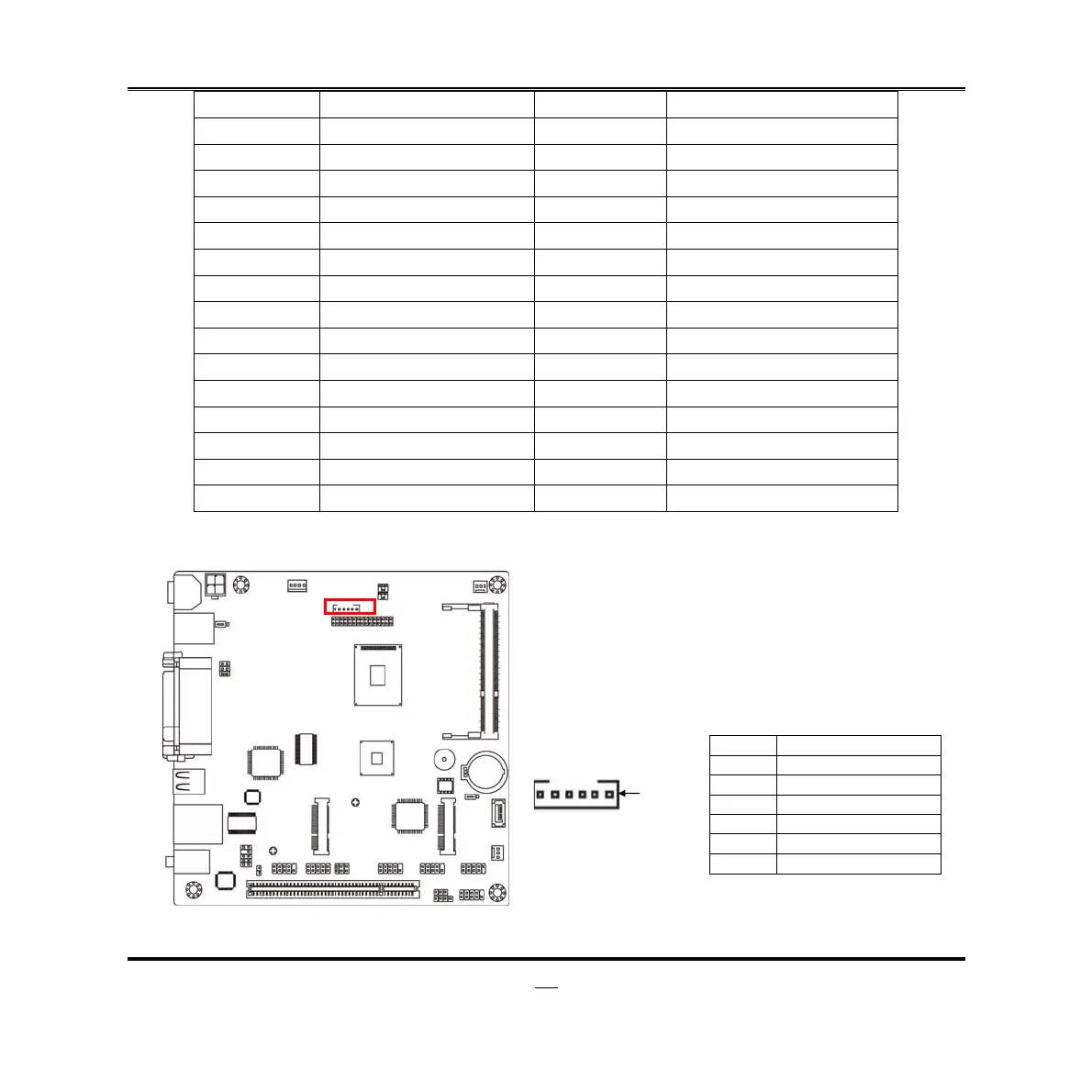

(10) INVERTER (6-Pin): Inverter Header
Pin1
INVERTER
Pin No. Definition
1 BKLT_PWR1
2 BKLT_PWR2
3 BKLT_EN
4 BKLT_PWM
5 GND1
6 GND2

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
