Intel D525 User Manual

3
6

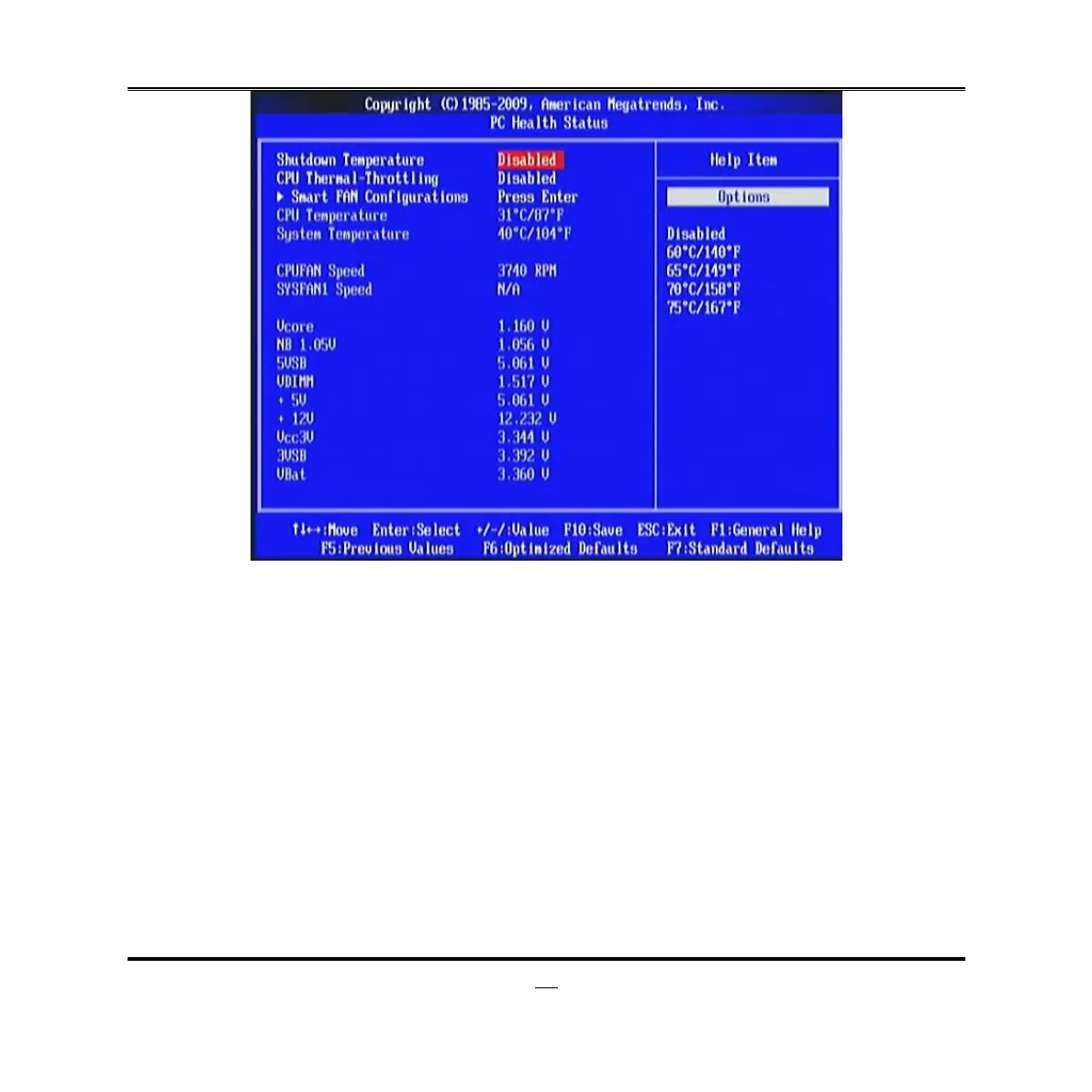

Shutdown Temperature
This item can let users set the Shutdown temperature, when CPU temperature over
this setting the system will auto shutdown to protect CPU.
The optional settings are: [Disabled]; [60°C/140F]; [65°C/149F];[70°C/158F]; [75°
C/167F].
CPU Thermal Throttling
The optional settings are: [Disabled]; [Enabled].
*Note: When it is set as [Enabled], use can make settings for the following items that
show up:
CPU Thermal-Throttling Temp.;
Use can select specific temperature for CPU Thermal Throttling function.
CPU Thermal-Throttling Duty
The optional settings are: [87.50%]; [75.00%]; [62.50%]; [50.00%]; [37.50%]; [25.00%];
[12.50%].
CPU Thermal-Throttling Beep.

Intel D525 Specifications

General

CPU	Intel Atom D525
Memory Type	DDR3
Max Memory	4GB
Storage Interfaces	2 x SATA 3Gb/s
USB Ports	6 x USB 2.0
Form Factor	Mini-ITX
Memory Slots	2
Graphics	Intel GMA 3150
Expansion Slots	1 x PCI
Audio	Realtek ALC662
