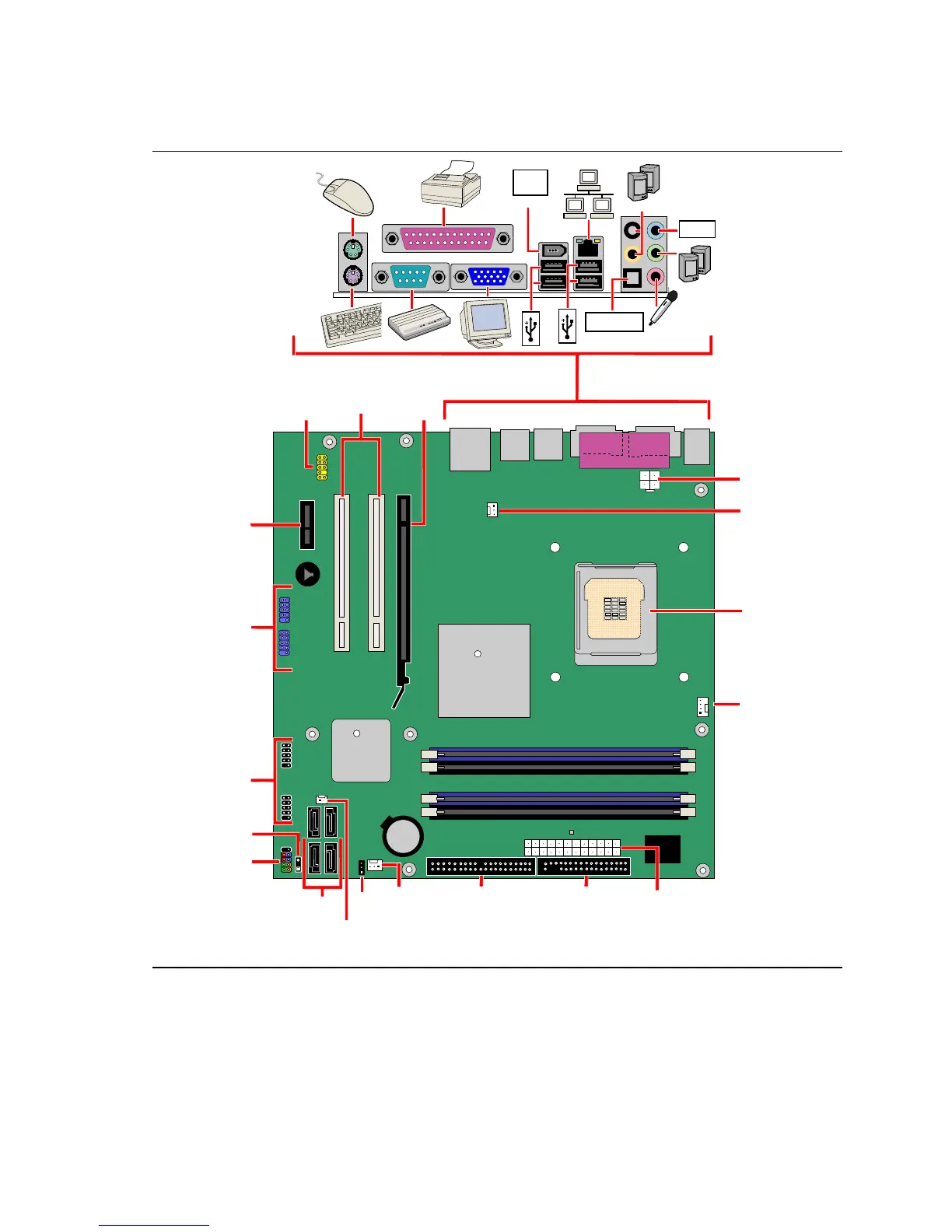

Figure 2 shows the approximate location of the major components on desktop board D945GTP.
R
Intel
82945G
(GMCH)
Intel
82801
(ICH7)
R
Channel B DIMM 1
Channel A DIMM 0
Channel A DIMM 1
Channel B DIMM 0
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
OM17612
Optical Line Out
(Toslink)
1394a
IEEE
Line In
(Optional)
(Optional)
(Optional)
Figure 2. Intel Desktop Board D945GTP Components

Intel D945GTP Specifications

General

Form Factor	ATX
Processor Support	Intel Pentium 4, Pentium D, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Graphics	Intel GMA 950
Audio	Intel High Definition Audio
Ethernet	10/100/1000 Mbps
Expansion Slots	1 x PCI Express x16, 3 x PCI Express x1, 3 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945G Express
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
