Installing and Replacing Desktop Board Components
49
Connecting Power Cables
CAUTION
Failure to use the appropriate power supply and/or not connecting the 12 V (2x2) power connector
to the desktop board may result in damage to the board or the system may not function properly.
See Table 5 on page 16 for power supply requirements. Figure 24 shows the location of the power
connectors.
OM17622
R
Intel
82945
(GMCH)
Intel
82801
(ICH7)
R
Channel A DIMM 0
1
2

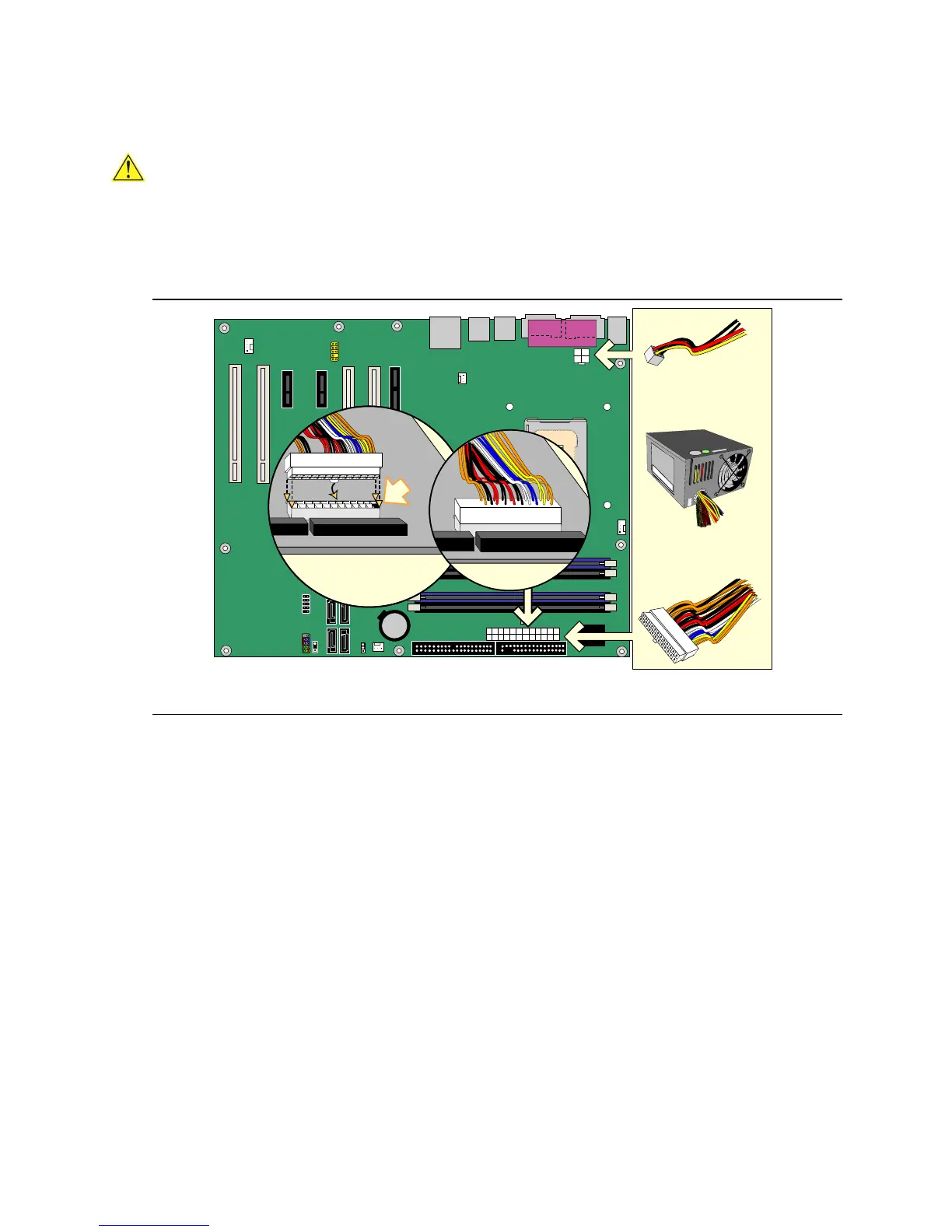

Figure 24. Connecting 2x12 Power Supply Cables
1. Observe the precautions in "Before You Begin" on page 27.
2. Connect the 12 V processor core voltage power supply cable to the 2x2 connector.
3. Connect the main power supply cable to the 2x12 connector.

Intel D945GTP Specifications

General

Form Factor	ATX
Processor Support	Intel Pentium 4, Pentium D, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Graphics	Intel GMA 950
Audio	Intel High Definition Audio
Ethernet	10/100/1000 Mbps
Expansion Slots	1 x PCI Express x16, 3 x PCI Express x1, 3 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945G Express
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
