Intel D945GTP User Manual

Installing and Replacing Desktop Board Components
51
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before changing the
jumper. Moving the jumper with the power on may result in unreliable computer operation.

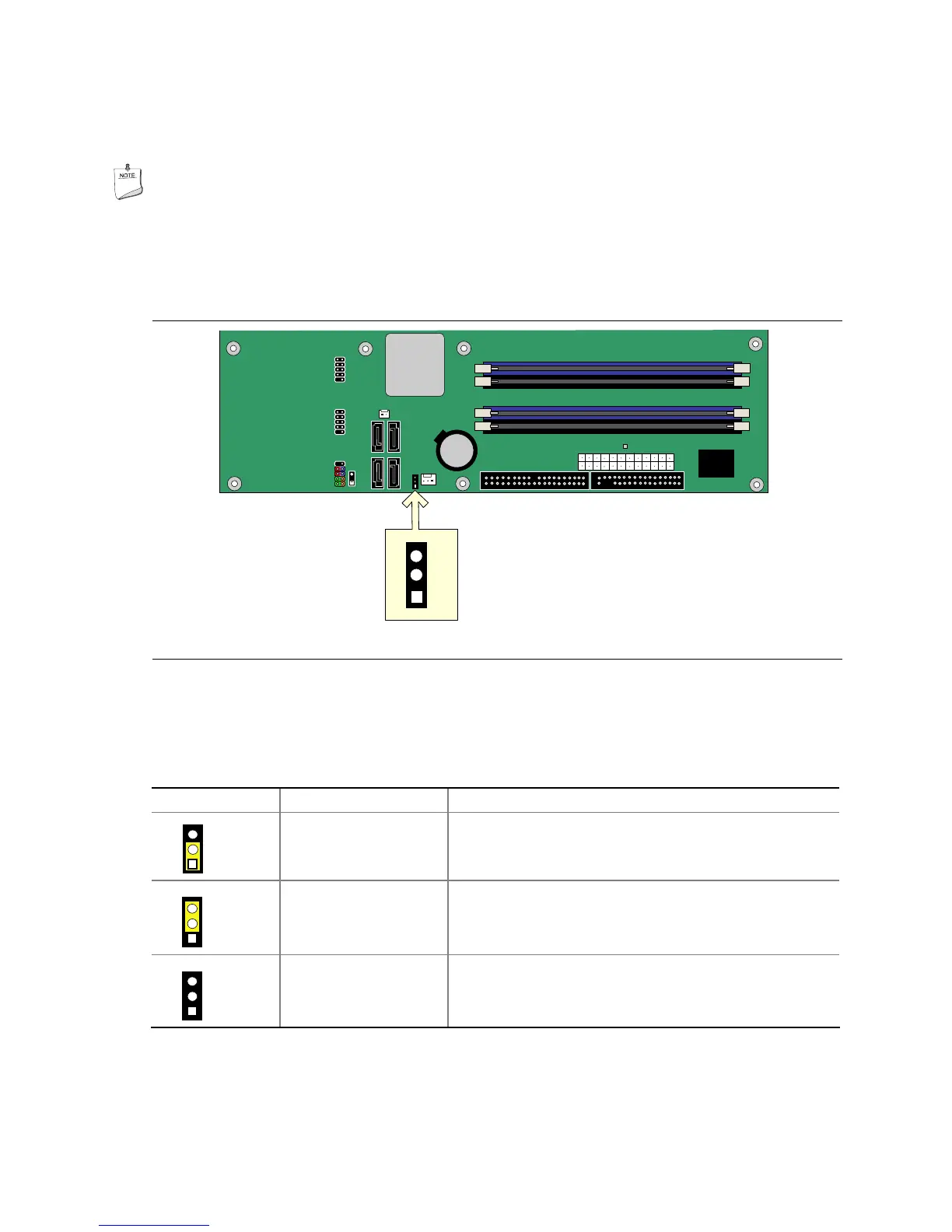

Figure 26 shows the location of the desktop board’s BIOS configuration jumper.
OM17624
1
2
3
Figure 26. Location of the BIOS Configuration Jumper
The three-pin BIOS jumper enables all board configurations to be done in BIOS Setup. Table 14
shows the jumper settings for the Setup program modes.
Table 14. Jumper Settings for the BIOS Setup Program Modes
Jumper Setting Mode Description
3
1
Normal (default) (1-2) The BIOS uses the current configuration and passwords for
booting.
3
1
Configure (2-3) After the Power-On Self-Test (POST) runs, the BIOS
displays the Maintenance Menu. Use this menu to clear
passwords.
3
1
Recovery (None) The BIOS recovers data from a recovery diskette in the
event of a failed BIOS update.

Intel D945GTP Specifications

General

Form Factor	ATX
Processor Support	Intel Pentium 4, Pentium D, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Graphics	Intel GMA 950
Audio	Intel High Definition Audio
Ethernet	10/100/1000 Mbps
Expansion Slots	1 x PCI Express x16, 3 x PCI Express x1, 3 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945G Express
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
