Connecting Fan and Power Cables
Connecting Fan Cables
Figure 23 shows the location of the fan headers. Connect the processor’s fan heat sink cable to the
4-pin processor fan header on the board. Connect chassis fan cables to the 3-pin fan headers.
OM17621
3
1
2
4
3
1
2
4
AB
3
1
2
3
1
2
BA
OR

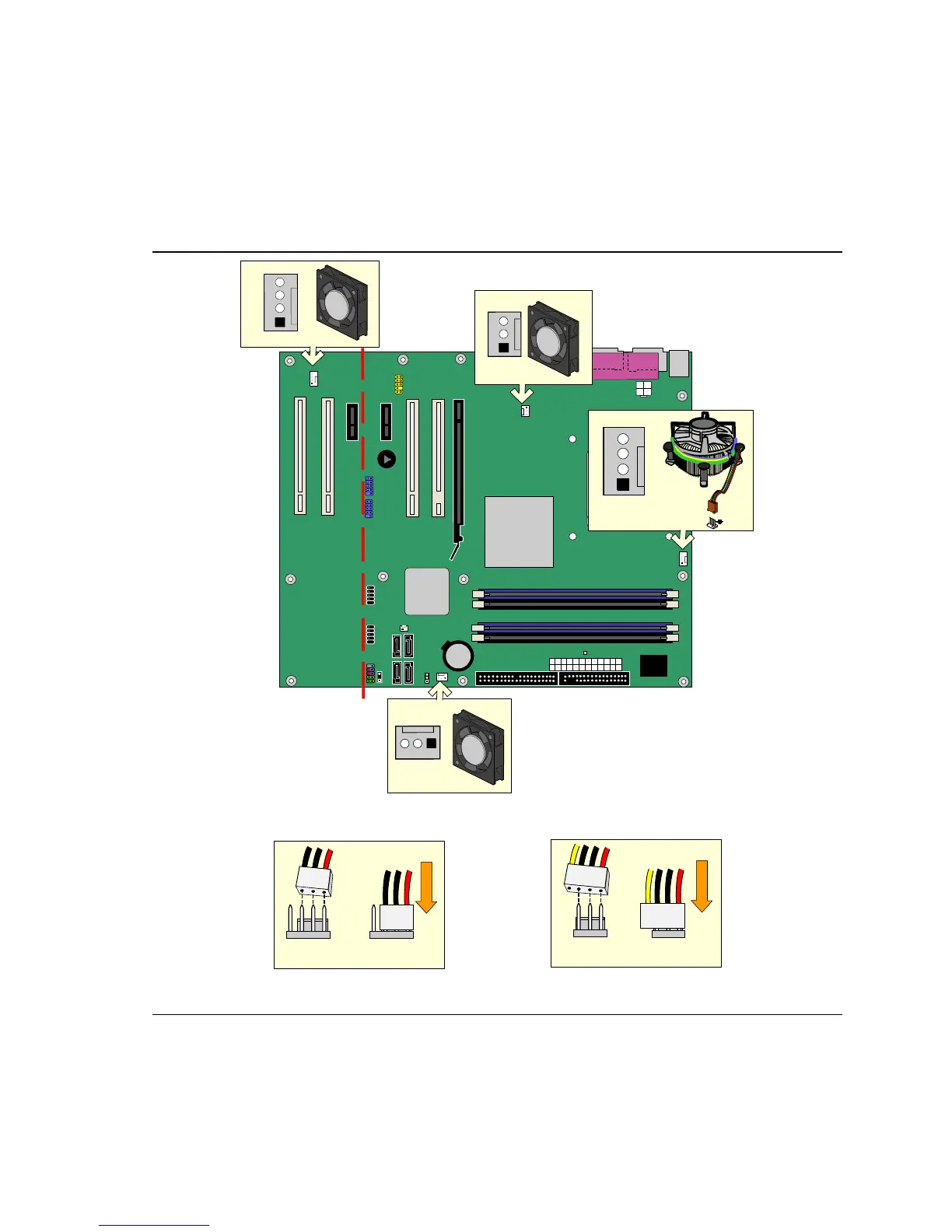

Figure 23. Location of Fan Headers

Intel D945GTP Specifications

General

Form Factor	ATX
Processor Support	Intel Pentium 4, Pentium D, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Graphics	Intel GMA 950
Audio	Intel High Definition Audio
Ethernet	10/100/1000 Mbps
Expansion Slots	1 x PCI Express x16, 3 x PCI Express x1, 3 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945G Express
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
