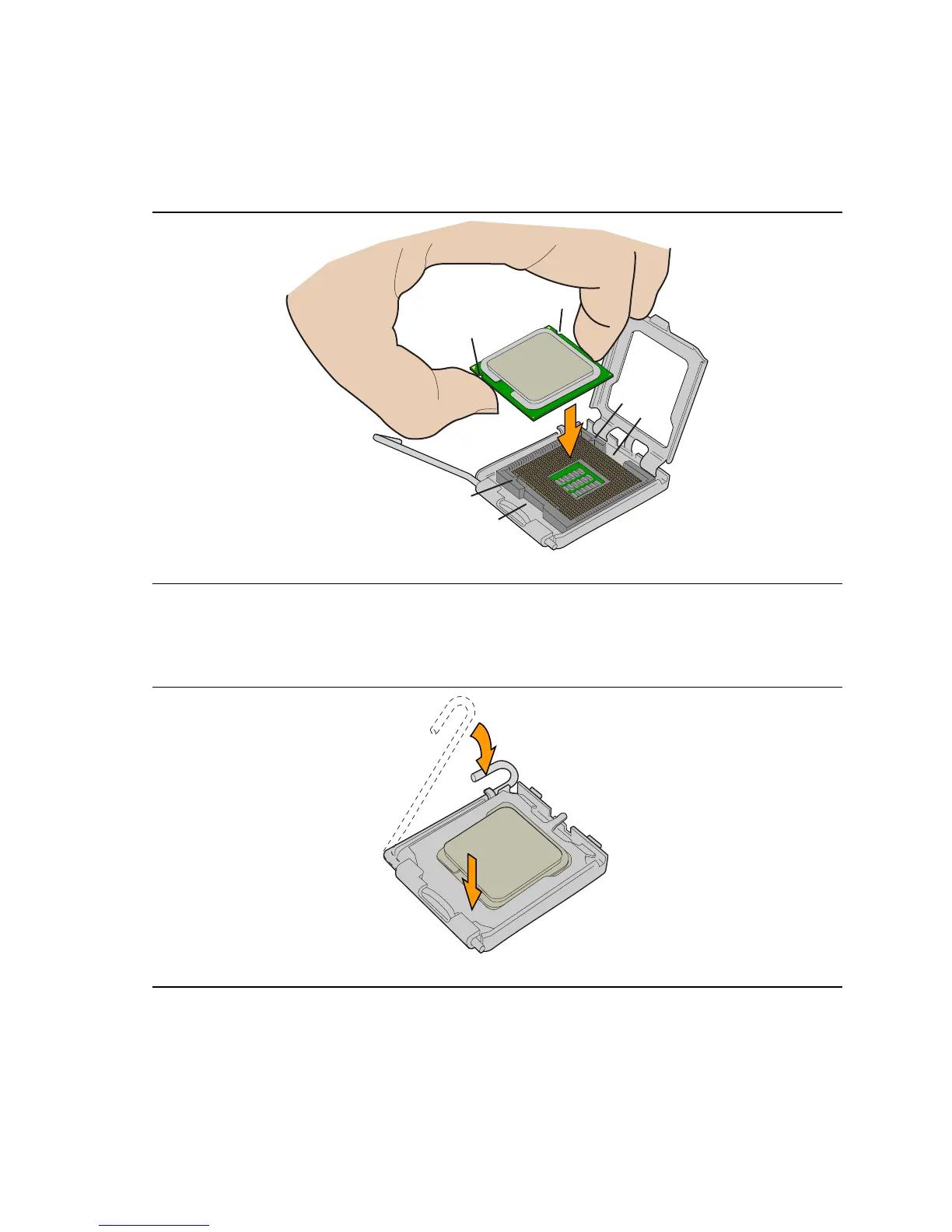

6. Hold the processor with your thumb and index fingers oriented as shown in Figure 11. Make
sure fingers align to the socket cutouts (see
Figure 11, F). Align notches (see Figure 11, G)
with the socket see (
Figure 11, H). Lower the processor straight down without tilting or sliding
the processor in the socket.
OM17214
G
G
F
H
F
H
Figure 11. Install Processor
7. While pressing down on the load plate (Figure 12, I), close and engage the socket lever (Figure
12, J).
OM17215
I
J
Figure 12. Close the Load Plate

Intel D945GTP Specifications

General

Form Factor	ATX
Processor Support	Intel Pentium 4, Pentium D, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Graphics	Intel GMA 950
Audio	Intel High Definition Audio
Ethernet	10/100/1000 Mbps
Expansion Slots	1 x PCI Express x16, 3 x PCI Express x1, 3 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945G Express
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
