Intel D945GTP User Manual

Installing and Replacing Desktop Board Components
35
Installing the Processor Fan Heat Sink
Desktop board D945GNT/D945GTP has an integrated processor fan heat sink retention mechanism
(RM). For instructions on how to attach the processor fan heat sink to the integrated processor fan
heat sink RM, refer to the boxed processor manual or the Intel World Wide Web site at:
The Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan connector (see Figure 13).
OM17616

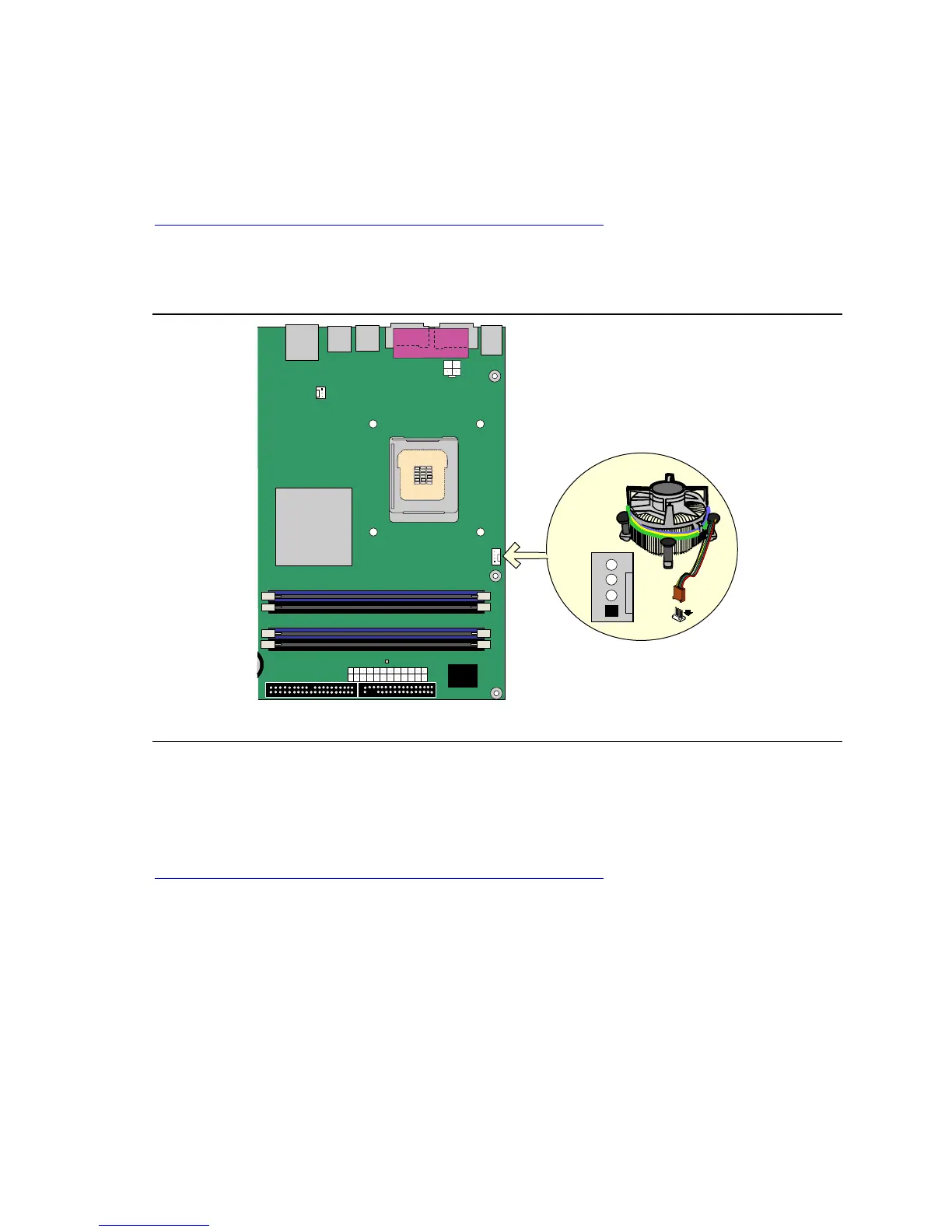

Figure 13. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Connector
Removing the Processor
For instruction on how to remove the processor fan heat sink and processor, refer to the processor
installation manual or the Intel World Wide Web site at:
The Boxed Intel
®
Pentium
®
4 Processor in the 775-Land Package

Intel D945GTP Specifications

General

Form Factor	ATX
Processor Support	Intel Pentium 4, Pentium D, Celeron D
Socket Type	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	4 GB
Graphics	Intel GMA 950
Audio	Intel High Definition Audio
Ethernet	10/100/1000 Mbps
Expansion Slots	1 x PCI Express x16, 3 x PCI Express x1, 3 x PCI
USB Ports	8 x USB 2.0
Chipset	Intel 945G Express
Storage Interfaces	4 x SATA 3.0 Gb/s, 1 x PATA
