Intel Desktop Board D975XBX Product Guide
20
OM18178
CR3J1

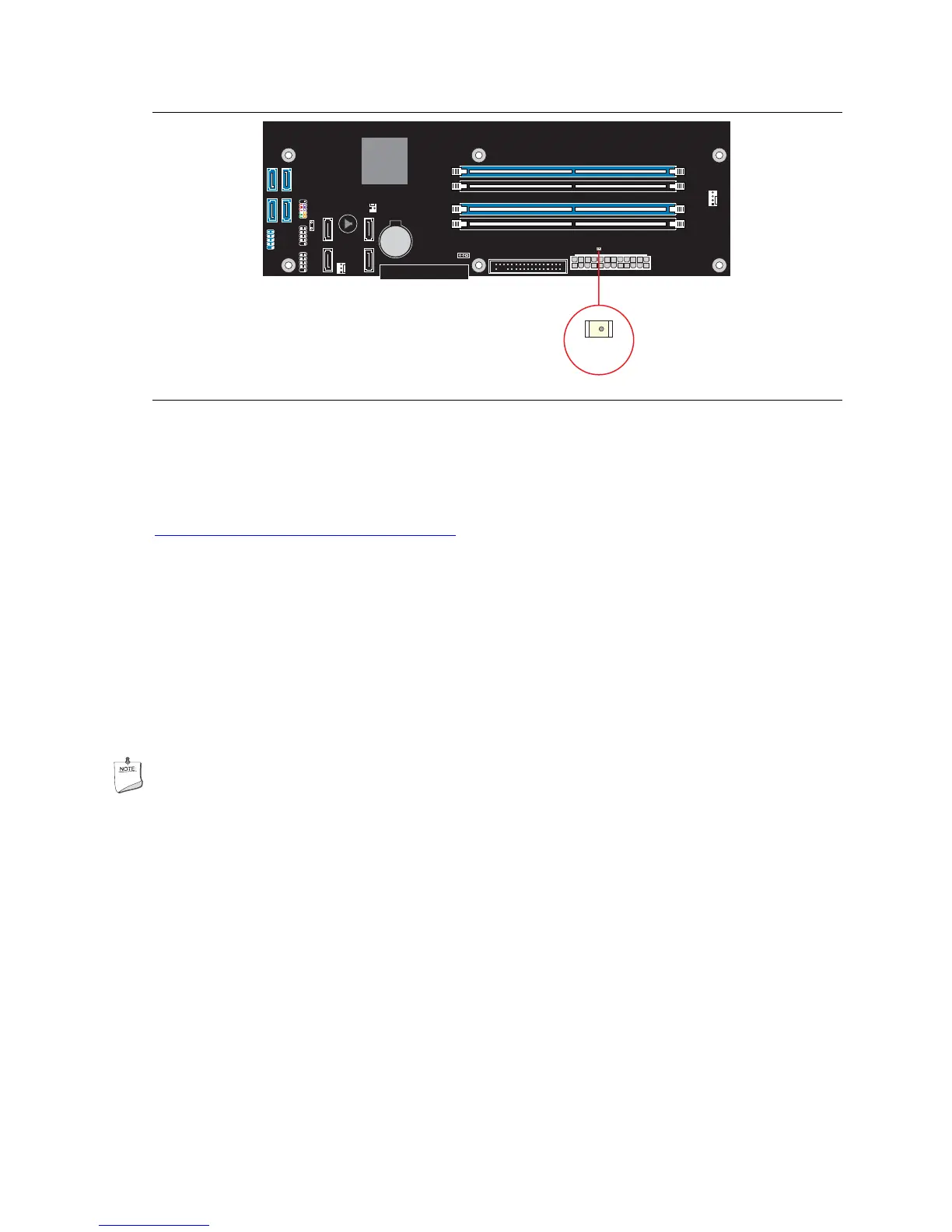

Figure 3. Location of Standby Power Indicator
Related Links
For more information on standby current requirements for the desktop board, go to the link below,
select the desktop board name, and then select Technical Documentation:
http://developer.intel.com/design/motherbd/
Resume on Ring
The operation of Resume on Ring can be summarized as follows:
• Resumes operation from either ACPI S1 or ACPI S3 state
• Requires only one call to access the computer
• Detects incoming call similarly for external and internal modems
• Requires modem interrupt be unmasked for correct operation
Wake from USB
NOTE
Wake from USB requires the use of a USB peripheral that supports Wake from USB.
USB bus activity wakes the computer from an ACPI S1 or S3 state.
Wake from PS/2* Keyboard/Mouse
PS/2 keyboard/mouse activity wakes the computer from an ACPI S1 or S3 state.
PME# Wakeup Support
When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI S1, S3, or
S5 state.

Intel D975XBX Specifications

General

Chipset	Intel 975X
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	8 GB
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
USB Ports	8 x USB 2.0
Supported Processors	Intel Pentium 4, Pentium D, Core 2 Duo
Memory Speed	533/667 MHz
Expansion Slots	2 x PCI Express x16, 1 x PCI Express x4, 2 x PCI
Storage Interfaces	4 x SATA 3Gb/s, 1 x PATA
Audio	Intel High Definition Audio
LAN	Gigabit Ethernet
