Installing the Processor Fan Heat Sink
Desktop Board D975XBX has an integrated processor fan heat sink retention mechanism (RM).
For instructions on how to attach the processor fan heat sink to the integrated processor fan heat
sink RM, refer to the boxed processor manual or the Intel World Wide Web site at:
Integration of the Boxed Intel® Pentium® 4 Processor in the 775-Land Package
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink cable to the 4-pin processor fan header (see Figure 12). A fan
with a 4-pin connector as shown in Figure 12, A is recommended; however, a fan with a 3-pin
connector (Figure 12, B) can be used. Since the 3-pin fan cannot use the on-board fan control, the
fan will always operate at full speed.
OM18181
AB

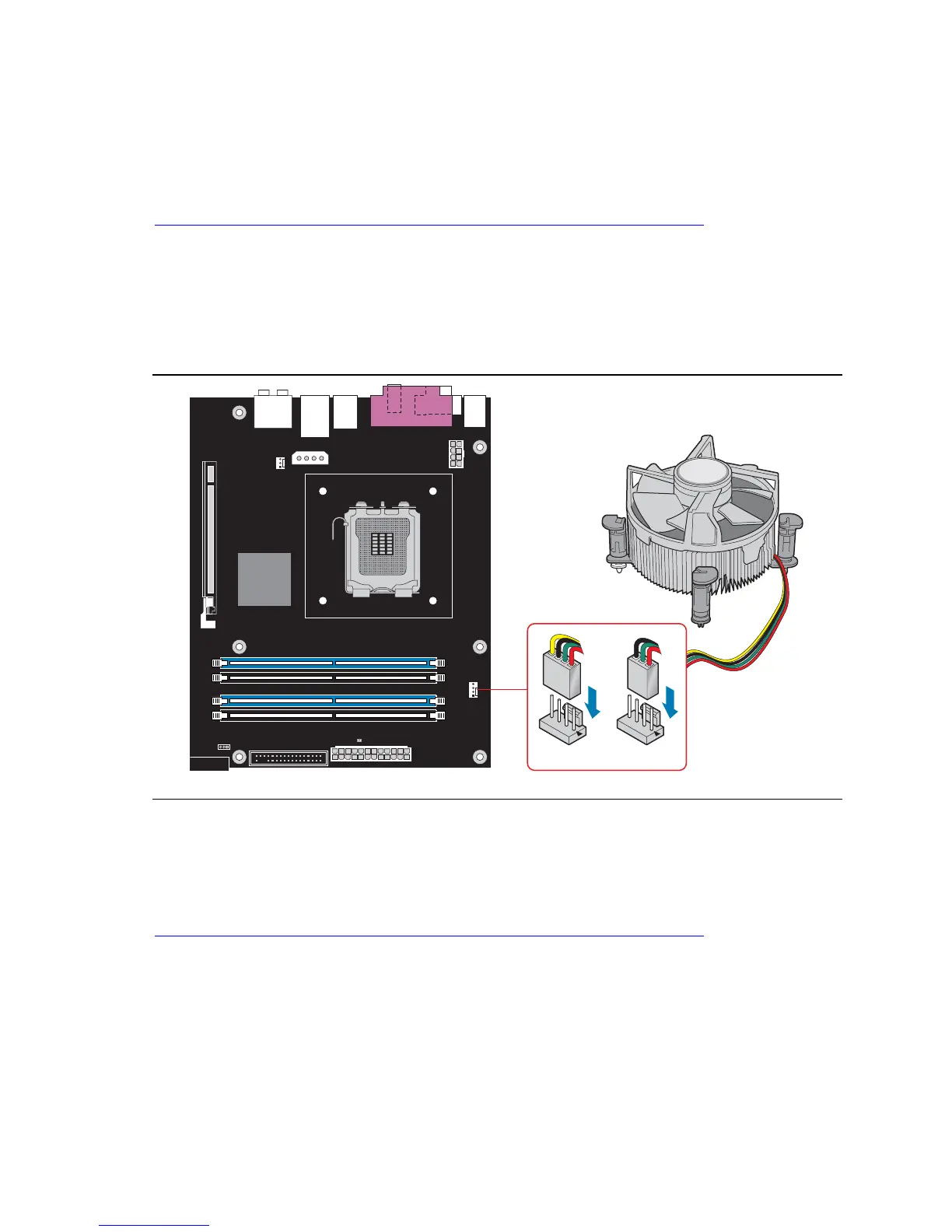

Figure 12. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Header
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to the processor
installation manual or the Intel World Wide Web site at:
Integration of the Boxed Intel® Pentium® 4 Processor in the 775-Land Package

Intel D975XBX Specifications

General

Chipset	Intel 975X
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	8 GB
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
USB Ports	8 x USB 2.0
Supported Processors	Intel Pentium 4, Pentium D, Core 2 Duo
Memory Speed	533/667 MHz
Expansion Slots	2 x PCI Express x16, 1 x PCI Express x4, 2 x PCI
Storage Interfaces	4 x SATA 3Gb/s, 1 x PATA
Audio	Intel High Definition Audio
LAN	Gigabit Ethernet
