Intel D975XBX Product Guide

Intel Desktop Board D975XBX Product Guide
64

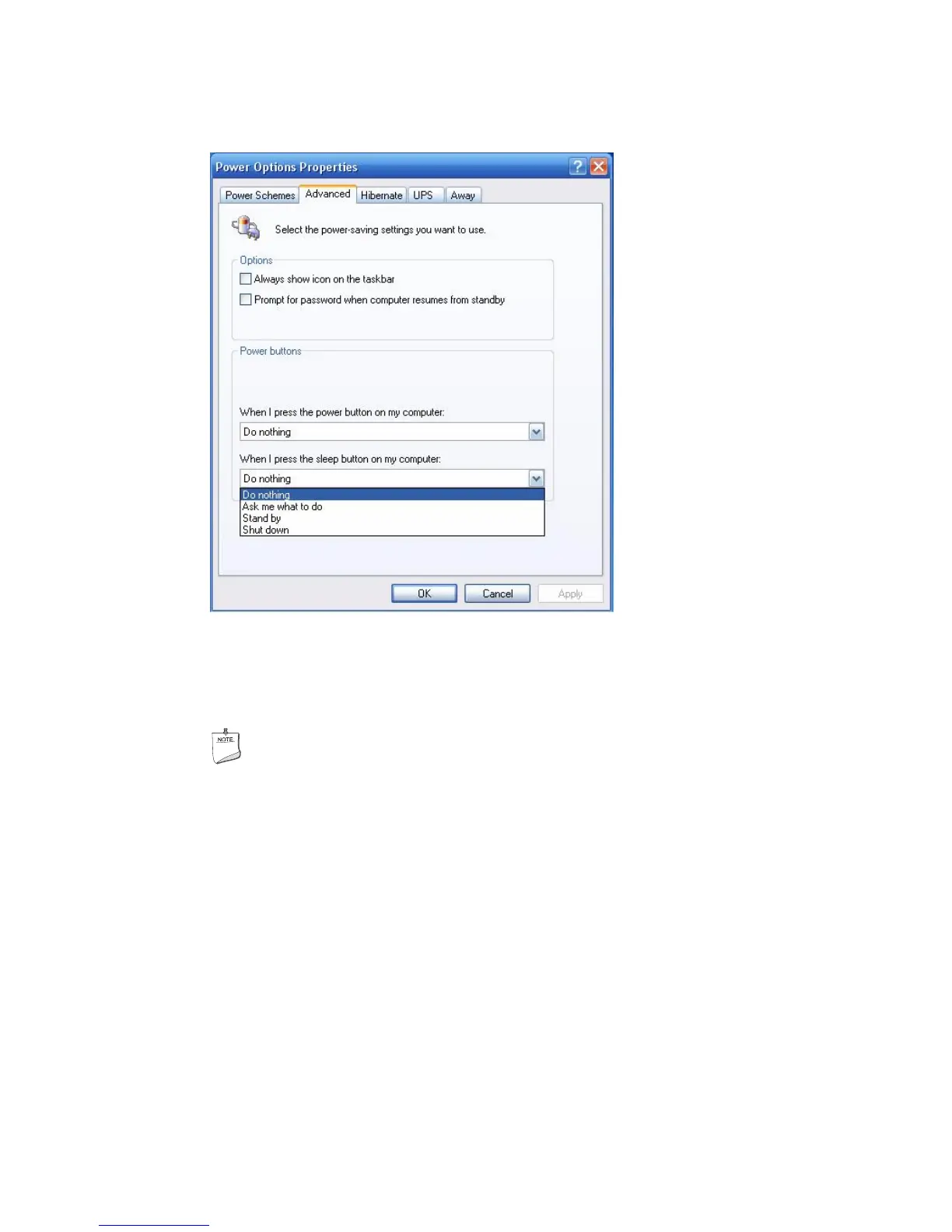

2. Select the Advanced tab.
3. Set the following Power buttons options:
When I press the power button on my computer: Do nothing
When I press the sleep button on my computer: Do nothing
NOTE
When using the Microsoft* Windows* XP Media Center Edition remote control, the power
button on the remote is controlled by the sleep button option on this properties page.
If these options are not selected, the Intel Quick Resume Technology Driver off and on
states cannot be accessed from the power button.

Intel D975XBX Specifications

General

Chipset	Intel 975X
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	8 GB
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
USB Ports	8 x USB 2.0
Supported Processors	Intel Pentium 4, Pentium D, Core 2 Duo
Memory Speed	533/667 MHz
Expansion Slots	2 x PCI Express x16, 1 x PCI Express x4, 2 x PCI
Storage Interfaces	4 x SATA 3Gb/s, 1 x PATA
Audio	Intel High Definition Audio
LAN	Gigabit Ethernet
