Intel Desktop Board D975XBX Technical Product Specification
20
1.4.1.2 Single Channel (Asymmetric) Mode Configurations

NOTE
Dual channel (Interleaved) mode configurations provide the highest memory throughput.

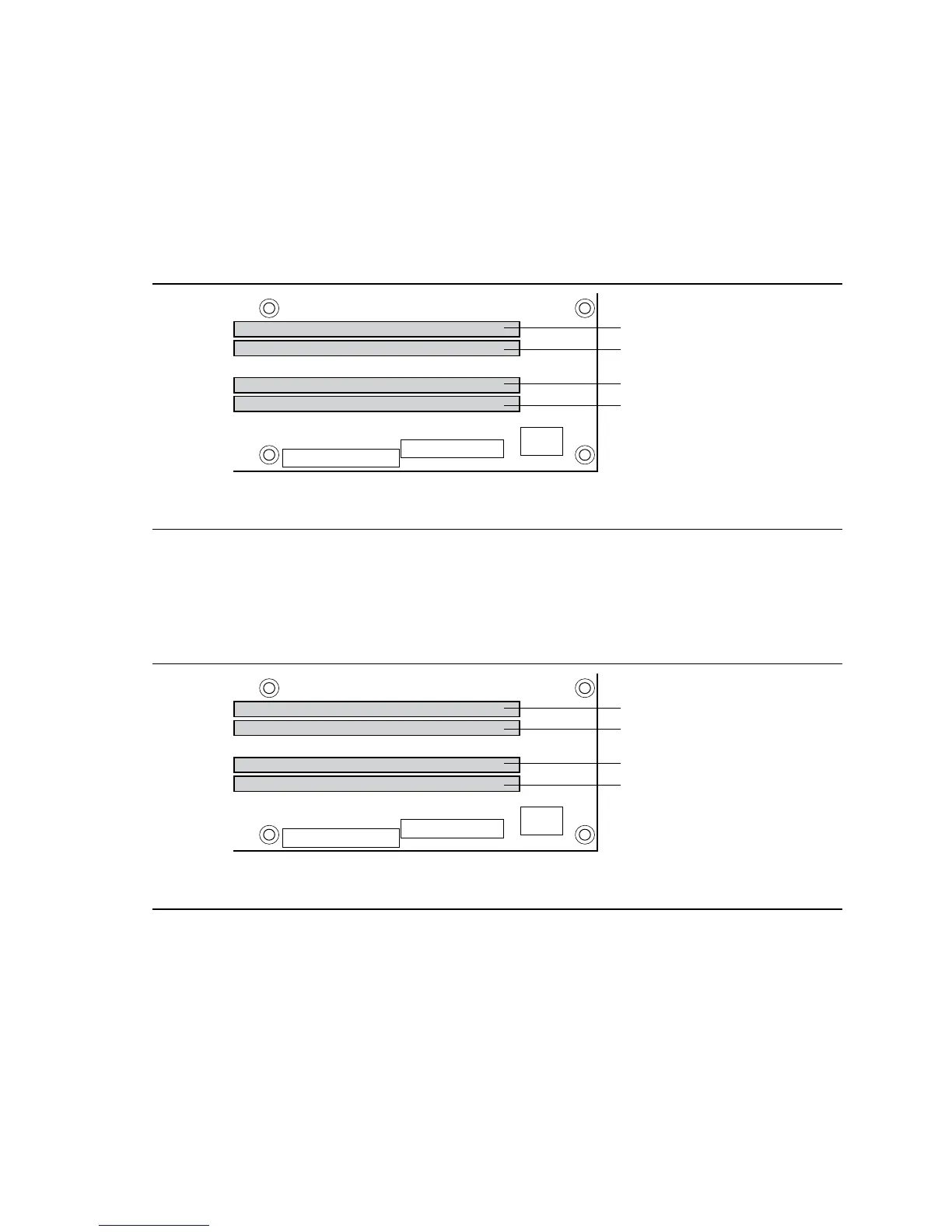

Figure 7 shows a single channel configuration using one DIMM. In this example, only the DIMM0
(blue) socket of Channel A is populated. Channel B is not populated.
OM18259
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
Figure 7. Single Channel (Asymmetric) Mode Configuration with One DIMM
Figure 8 shows a single channel configuration using three DIMMs. In this example, the combined
capacity of the two DIMMs in Channel A does not equal the capacity of the single DIMM in the
DIMM0 (blue) socket of Channel B.
OM18260
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
512 MB
512 MB
Figure 8. Single Channel (Asymmetric) Mode Configuration with Three DIMMs

Intel D975XBX Specifications

General

Chipset	Intel 975X
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	8 GB
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
USB Ports	8 x USB 2.0
Supported Processors	Intel Pentium 4, Pentium D, Core 2 Duo
Memory Speed	533/667 MHz
Expansion Slots	2 x PCI Express x16, 1 x PCI Express x4, 2 x PCI
Storage Interfaces	4 x SATA 3Gb/s, 1 x PATA
Audio	Intel High Definition Audio
LAN	Gigabit Ethernet
