39
1.12.2 Thermal
Monitoring

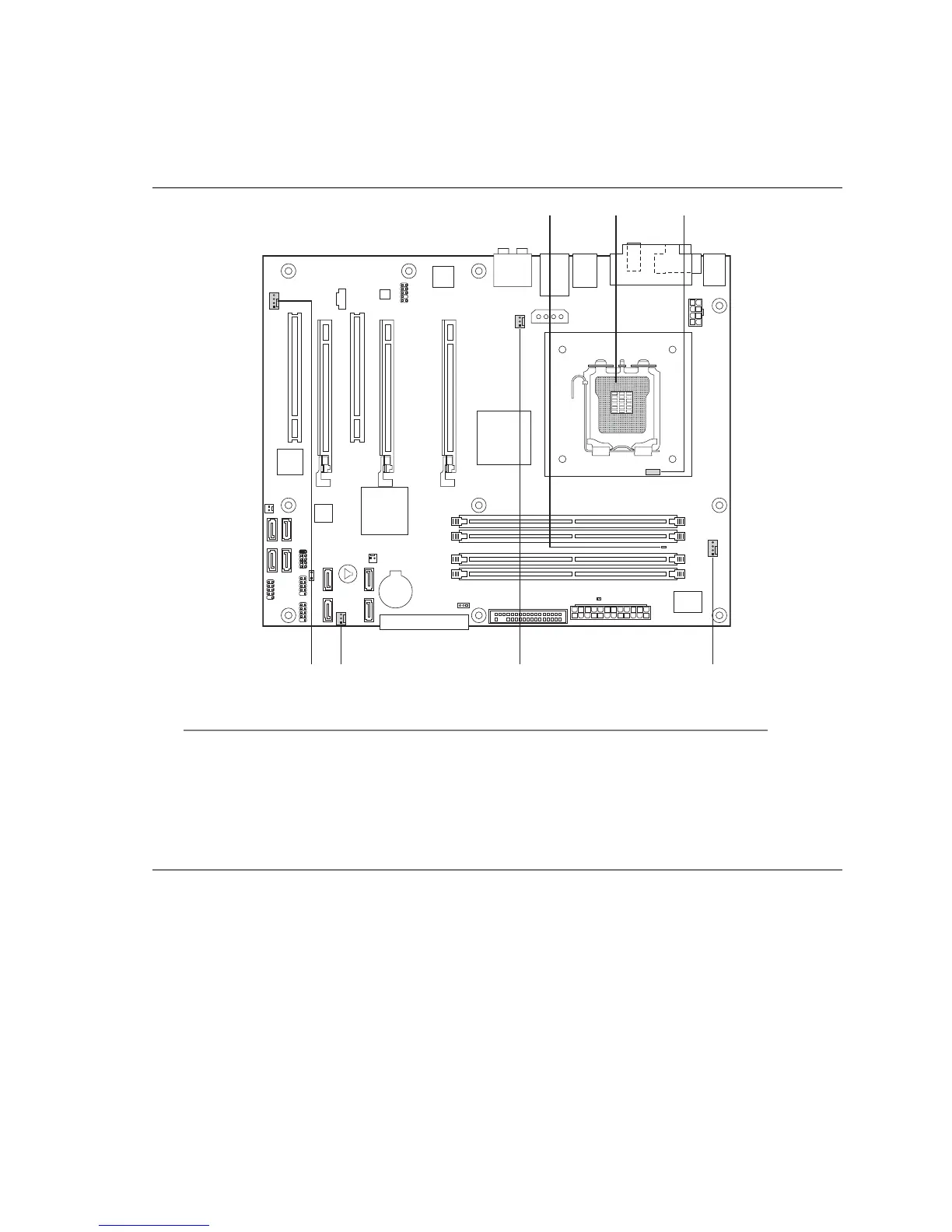

Figure 14 shows the location of the sensors and fan connectors.
OM19033
B
A
C
D
E
F
G
4
1
3
1
3
1
4
1
Item Description
A
Remote ambient temperature sensor
B
Thermal diode, located on processor die
C
Ambient temperature sensor, internal
to hardware monitoring and fan control ASIC
D
Processor fan connector
E
Rear chassis fan connector
F
Front chassis fan connector
G
Auxiliary rear fan connector
Figure 14. Sensors and Fan Connectors
