Intel Desktop Board D975XBX Technical Product Specification
58
2.7.2 Component-side Connectors
Figure 19 shows the locations of the component-side connectors.
DD
OM19035
Y
EE
CC
BB
Z
AA
A B EDC F H I KJ
QU S
T
X
W NO M L
G
RV P
1
4
4
1
1
9
2
10
14
1
3
4
1
8
5
1
4
13
1
24
12
331
234
1
1
7
1
7
7
7
1
1
1
7
1
7
7
1
7
1
1
3
1
1
7
2
10
1
7
2
10
1
8
1
9
2
1
7
10
2

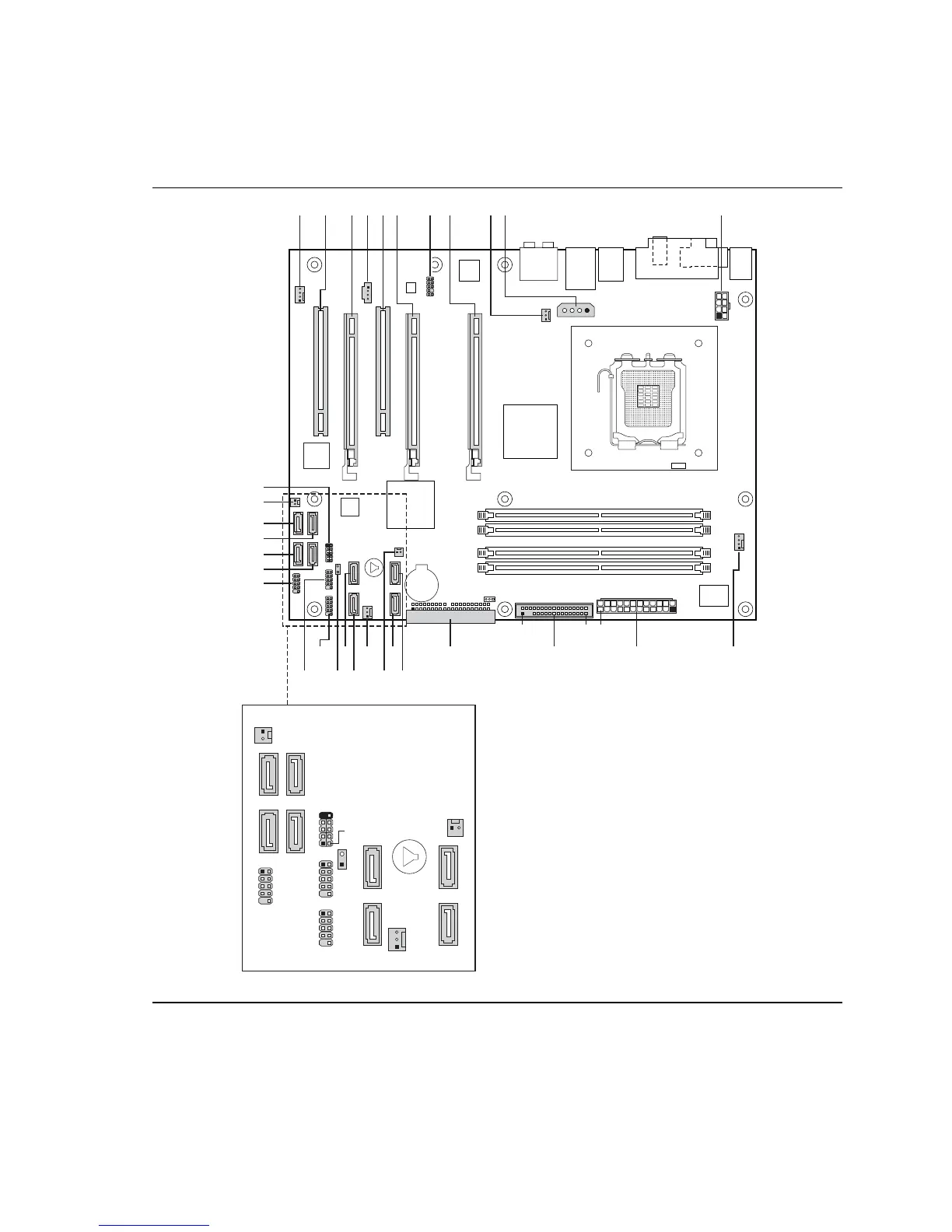

Figure 19. D975XBX Component-side Connectors
Table 17 lists the component-side connectors identified in Figure 19.

Intel D975XBX Specifications

General

Chipset	Intel 975X
Socket	LGA 775
Memory Type	DDR2
Memory Slots	4
Maximum Memory	8 GB
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
USB Ports	8 x USB 2.0
Supported Processors	Intel Pentium 4, Pentium D, Core 2 Duo
Memory Speed	533/667 MHz
Expansion Slots	2 x PCI Express x16, 1 x PCI Express x4, 2 x PCI
Storage Interfaces	4 x SATA 3Gb/s, 1 x PATA
Audio	Intel High Definition Audio
LAN	Gigabit Ethernet
